All diagrams for this model

1994 Outboard 250hp - L250TXRS FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

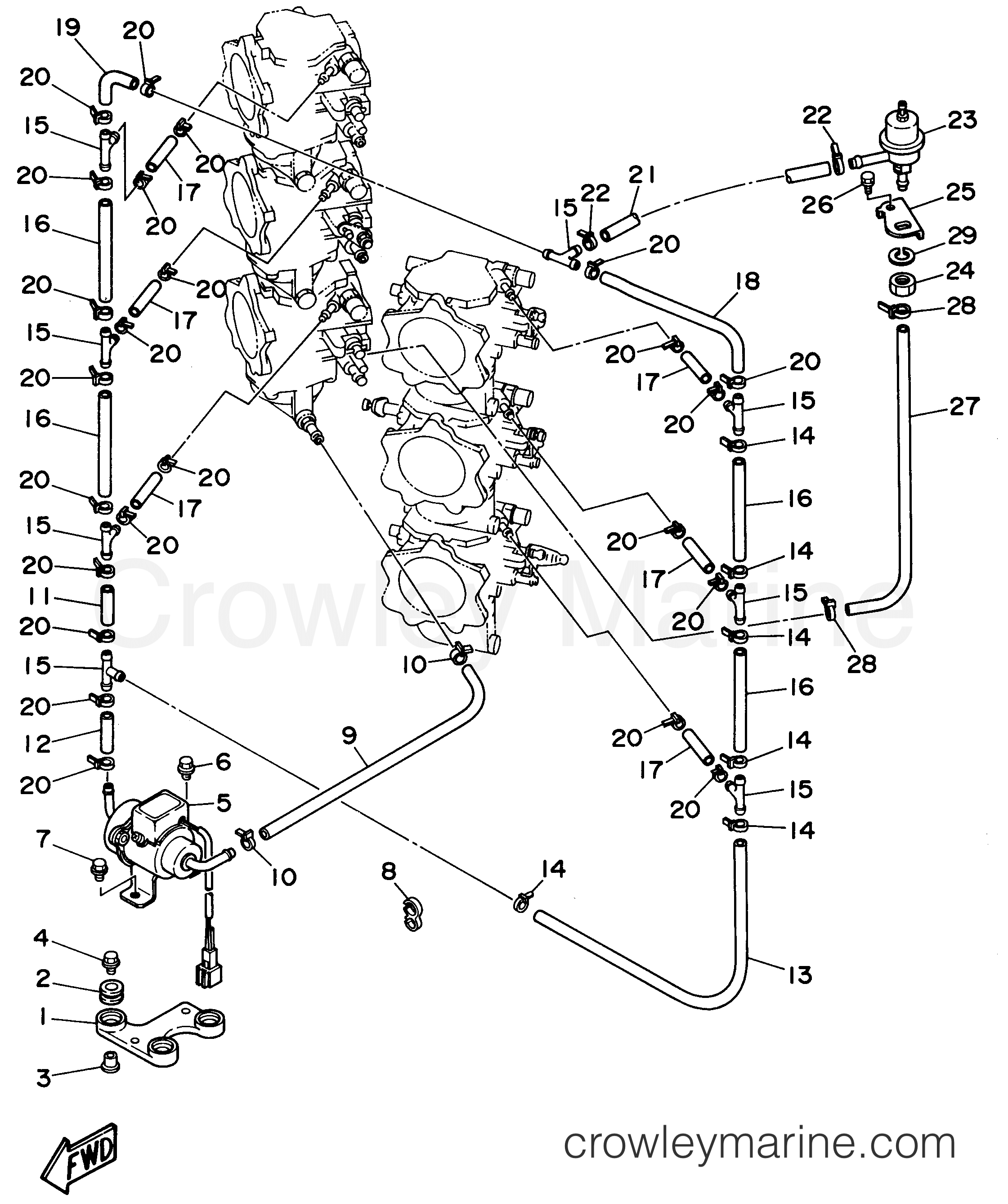

Yamaha Motors L250TXRS - FUEL 2
Change View:
Fuel Pump Bracket
1
Yamaha Motors
Fuel Pump Bracket61A-24491-00-94
Required: 1
BRACKET, FUEL PUMP
Supersedes: 61A-24491-00-00
Cross Ship
Leaves in 2-5 days
$37.55
$31.92
You save $5.63
More details
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-06294-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M65-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Fuel Pump Assembly
5
Yamaha Motors
Fuel Pump Assembly61A-13910-01-00
Required: 1
FUEL PUMP ASSEMBLY
Cross Ship
Leaves in 2-5 days
$367.20
$312.12
You save $55.08
More details
Bolt with Washer
6
Yamaha Motors
Bolt with Washer97595-08514-00
Required: 1
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
Clamp
8
Yamaha Motors
Clamp90464-13M34-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.50
$1.27
You save $0.23
More details
Obsolete Yamaha Part
9
Yamaha Motors
Obsolete Yamaha Part4KN-24311-01-00
Required: 1
PIPE 5
Supersedes: 6A4-24315-00-00
Cross Ship
Leaves in 2-5 days
$16.05
$13.64
You save $2.41
More details
Pipe
17
Yamaha Motors
Pipe61A-24316-00-00
Required: 6
PIPE 6
Cross Ship
Leaves in 2-5 days
$15.80
$13.43
You save $2.37
More details
Obsolete Yamaha Part
18
Yamaha Motors
Obsolete Yamaha Part4KN-24311-01-00
Required: 1
PIPE 5
Supersedes: 6A4-24315-00-00
Cross Ship
Leaves in 2-5 days
$16.05
$13.64
You save $2.41
More details
Obsolete Yamaha Part
21
Yamaha Motors
Obsolete Yamaha Part4KN-24311-01-00
Required: 1
PIPE 5
Supersedes: 61A-24315-00-00
Cross Ship
Leaves in 2-5 days
$16.05
$13.64
You save $2.41
More details
Fuel Regulator Assembly
23
Yamaha Motors
Fuel Regulator Assembly61A-24470-00-00
Required: 1
FUEL REGULATOR ASSEMBLY
Cross Ship
Leaves in 2-5 days
$95.45
$81.13
You save $14.32
More details
Nut
24
Yamaha Motors
Nut95380-12600-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$10.25
$8.71
You save $1.54
More details
Plate
25
Yamaha Motors
Plate61A-24422-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$9.10
$7.73
You save $1.37
More details
BOLT, HEXAGON W/W DE
26
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06516-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06516-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Spring Washer
29
Yamaha Motors
Spring Washer92990-12100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
