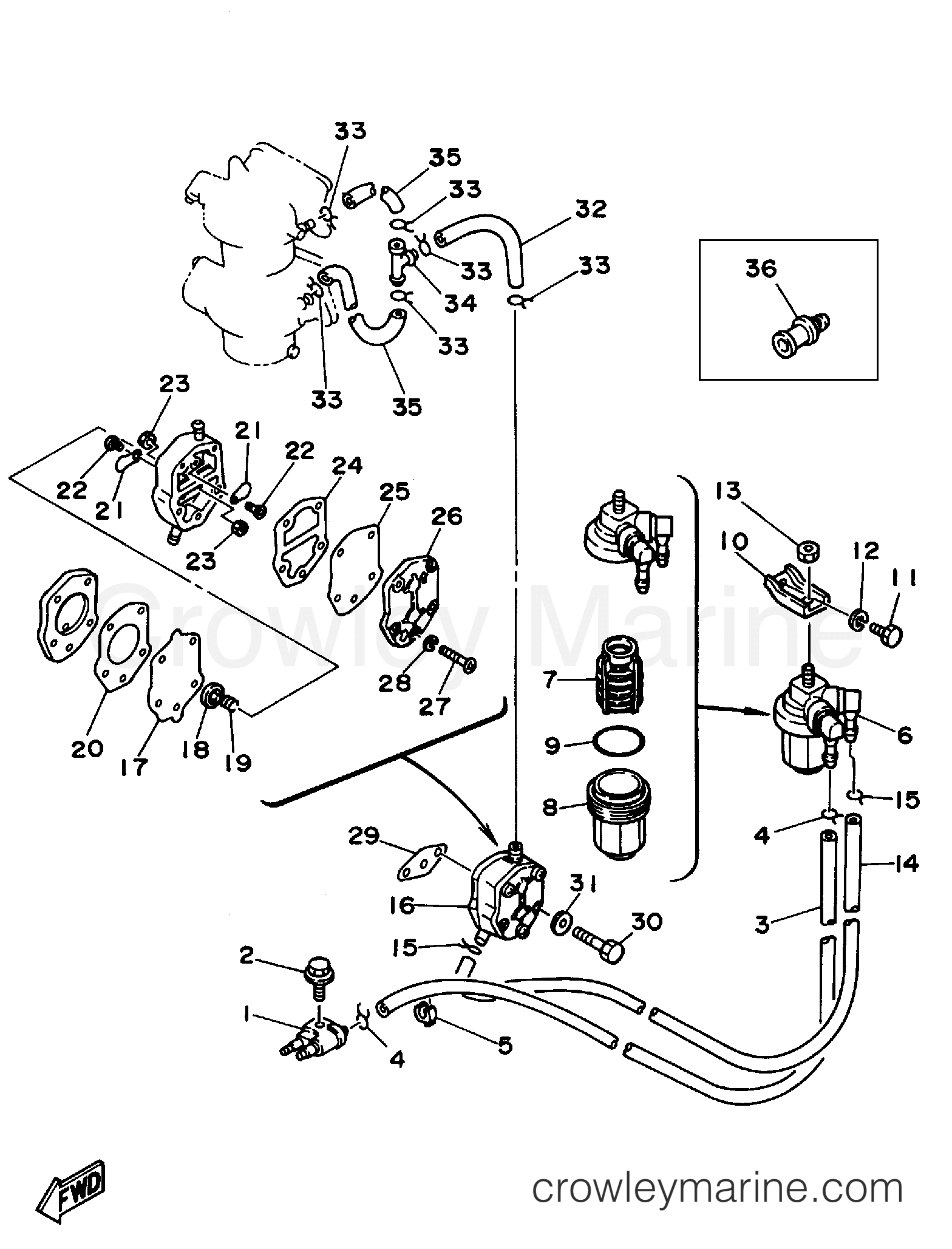

1994 Outboard 55hp - C55TLRS FUEL diagram
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
2
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.59
You save $0.46
3
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L600)
Supersedes: 90445-09M25-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
$6.46
You save $1.14
6
Yamaha Motors
Filter Assembly61N-24560-10-00
Required: 1
FILTER ASSY
Supersedes: 61N-24560-00-00
In stock
5+ in stock
$34.98
You save $6.17
7
Yamaha Motors
Element Filter61N-24563-10-00
Required: 1
.ELEMENT, FILTER
Supersedes: 61N-24563-00-00
In stock
5+ in stock
$11.18
You save $1.97
In stock
5+ in stock
$17.55
You save $3.10
In stock
5+ in stock
$2.85
You save $0.50
10
Yamaha Motors
Filter Bracket6E9-24566-70-00
Required: 1
BRACKET, FILTER
$5.44
You save $0.96
11
Yamaha Motors
BOLT, HEXAGON DEEP R97D95-06014-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06014-00
In stock
5+ in stock
$1.32
You save $0.23
12
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
In stock
Only 1 remaining
$7.22
You save $1.27
14
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L260)
Supersedes: 90445-09100-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
16
Yamaha Motors
Fuel Pump Assembly692-24410-01-00
Required: 1
FUEL PUMP ASSY
Supersedes: 692-24410-00-00
In stock
5+ in stock
$45.94
You save $8.11
$21.12
You save $3.73
18
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
$3.87
You save $0.68
19
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
$4.51
You save $0.79
20
Yamaha Motors
Body Gasket648-24434-01-00
Required: 1
.GASKET, BODY
In stock
5+ in stock
$7.31
You save $1.29
21
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 2
.VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$13.00
You save $2.29
22
Yamaha Motors
Pan Head Screw6A0-14325-00-00
Required: 2
.SCREW, PAN HEAD
In stock
Only 3 remaining
$4.55
You save $0.80
In stock
Only 3 remaining
$1.57
You save $0.28
24
Yamaha Motors
GASKET, BODY 2648-24435-03-00
Required: 1
.GASKET, BODY 2
Supersedes: 648-24435-02-00
In stock
5+ in stock
$11.81
You save $2.09
In stock
Only 2 remaining
$9.27
You save $1.63
$15.00
You save $2.65
27
Yamaha Motors
98580-05530-0097890-05030-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-05530-00
In stock
5+ in stock
$4.04
You save $0.71
28
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
29
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.98
You save $0.52
In stock
5+ in stock
$2.38
You save $0.42
31
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
32
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE
Supersedes: 90445-09089-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
34
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 1
PIPE, JOINT 3
In stock
5+ in stock
$14.03
You save $2.47
35
Yamaha Motors
Hose90445-094K7-00
Required: 2
HOSE (L65)
Supersedes: 90445-09061-00
In stock
5+ in stock
$3.49
You save $0.62
36
Yamaha Motors
Jet Drive FlushABB-FLUSH-JD-00
Required: 1
JET DRIVE FLUSH
In stock
Only 1 remaining
$16.19
You save $2.86
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
