All diagrams for this model

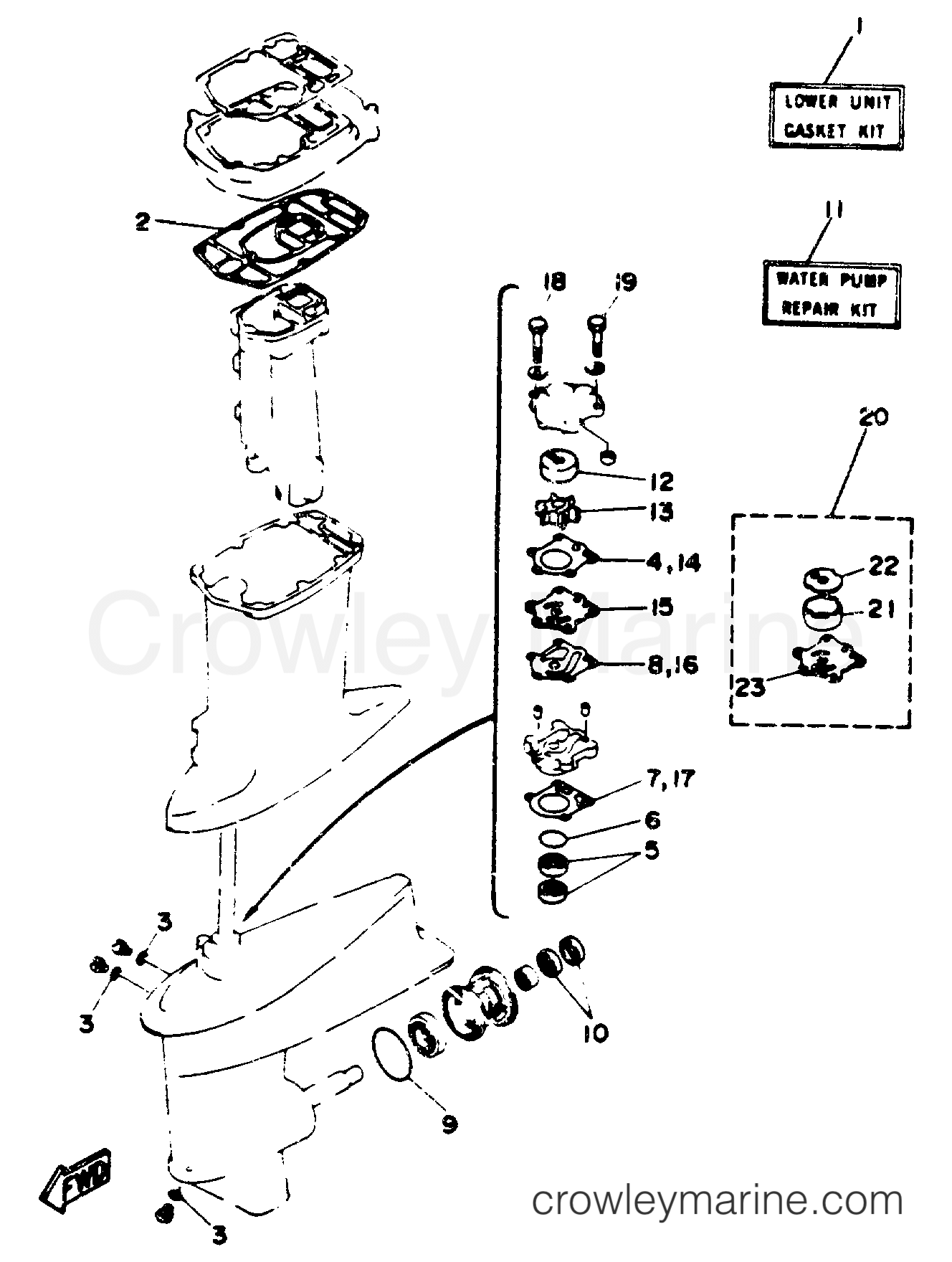

1994 Outboard 30hp - 30MLHS REPAIR KIT 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 30MLHS - REPAIR KIT 2
Change View:
Upper Casing Gasket
2
Yamaha Motors
Upper Casing Gasket6J8-45114-A1-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$6.95
$5.91
You save $1.04
More details
Bolt
18
Yamaha Motors
Bolt97095-08050-00
Required: 2
.BOLT
Supersedes: 97395-08050-00
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Obsolete Yamaha Part
20
Yamaha Motors
Obsolete Yamaha Part697-W0078-0A-00
Required: 1
CHROME PUMP KIT
Supersedes: 6H4-W0078-0A-00
Cross Ship
Leaves in 2-5 days
$139.95
$118.96
You save $20.99
More details
Cartridge Insert
21
Yamaha Motors
Cartridge Insert670-44322-01-00
Required: 1
.INSERT, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$56.25
$47.81
You save $8.44
More details
Cartridge Inner Plate
22
Yamaha Motors
Cartridge Inner Plate670-44321-00-00
Required: 1
.INNER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$47.25
$40.16
You save $7.09
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
