Lower Unit Gasket Kit 6J8-W0001-C2-00
- This is an OEM part manufactured by Yamaha Motors
- 30 day return policy
Product Description

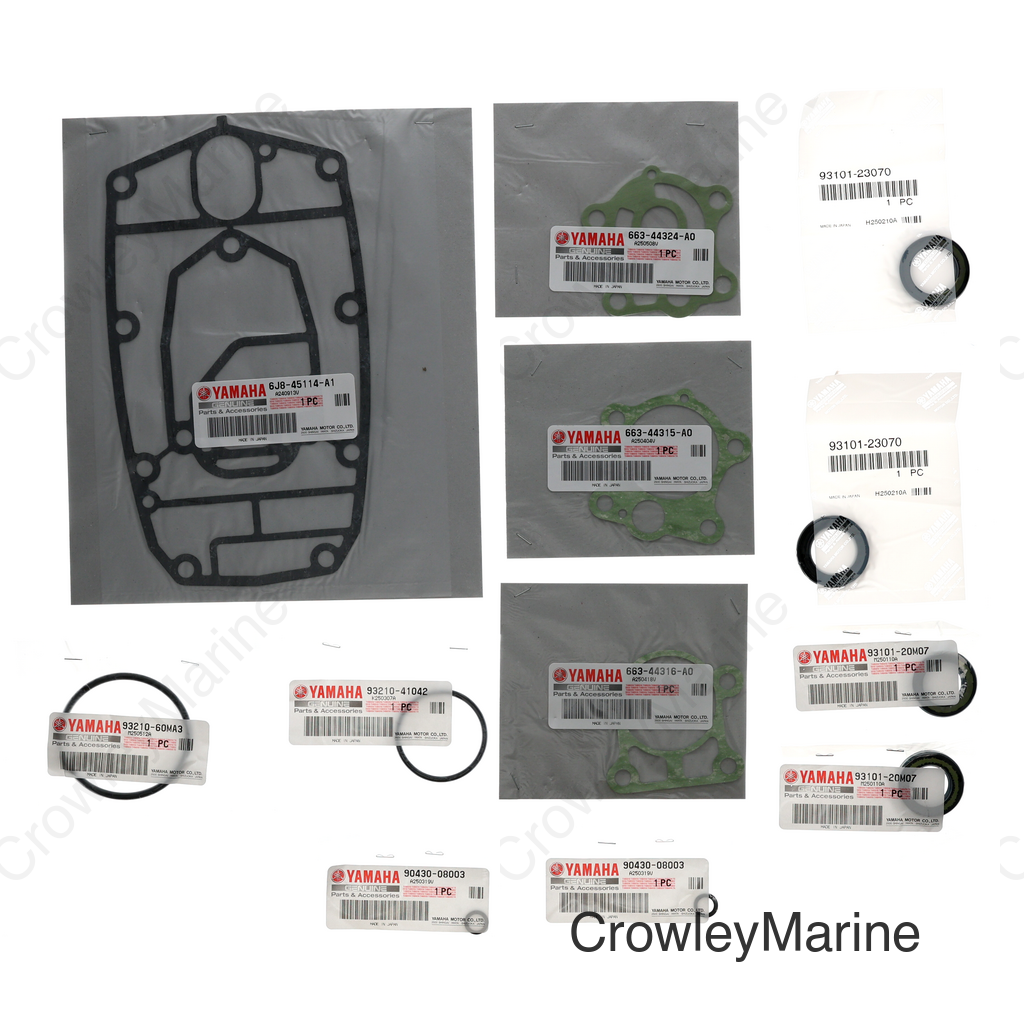

Parts Included in this Kit
These parts can also be purchased separately
| Name | SKU | Brand |
|---|---|---|
| Water Pump Gasket | 663-44315-A0-00 | Yamaha Motors |
| Water Pump Gasket | 663-44316-A0-00 | Yamaha Motors |
| Cartridge Gasket | 663-44324-A0-00 | Yamaha Motors |
| Upper Casing Gasket | 6J8-45114-A1-00 | Yamaha Motors |
| Lower Unit Gasket Kit | 6J8-W0001-C2-00 | Yamaha Motors |
| .GASKET | 90430-08020-00 | Yamaha Motors |
| Oil Seal | 93101-20M07-00 | Yamaha Motors |
| Oil Seal | 93101-23070-00 | Yamaha Motors |
| O-Ring | 93210-41042-00 | Yamaha Motors |
| O-Ring | 93210-60MA3-00 | Yamaha Motors |
Product Questions 0
3 Product Reviews
It was good, it's nice to browse endless parts listing and figure out exactly what I needed for my motor
Engine: Yamaha 30 Shopping experience: It was a great experience 4 stars only because the supply line was a bit slow but not unhappy with the service whatsoever. Emailed consistently with updates and assurances. Repair difficulty: Easy Repair time: Less than 30 mins Repair symptoms: Gear oil leak out of prop and drive shaft. 1. Drain Gear Oil 2. Remove leg (5bolts one hidden under zinc plate) 3. Remove the water pump and all housings to expose 2 oil seals. (Slide hammer works great) 4. Remove oil seals with a flat-head screwdriver carefully to not scratch or damage the drive shaft. 5. Replace seals and gaskets and reconfigure the water pump. My impeller looked in great shape but would recommend swapping it out while your in there. 6. Did the "hack" method of removing prop shaft seals with drywal screws and a flat bar. 7. Replace seals and seat them with a pvc pipe. 8. Would have like to remove the bearing carrier to get at the o-ring but did not have the proper tools. (The Spline Nut on a 1998 yamaha 30 is frustrating.)
Repair difficulty: Easy Repair time: Less than 30 mins
Parts Fitment
Please verify fitment before ordering.
| Brand | Product Line | Model | 1986 | 1987 | 1988 | 1989 | 1990 | 1991 | 1992 | 1993 | 1994 | 1995 | 1996 | 1997 | 1998 | 1999 | 2000 | 2001 | 2002 | 2003 | 2004 | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yamaha Motors | International | 25 | |||||||||||||||||||||||||||||||
| Yamaha Motors | International | 30 | |||||||||||||||||||||||||||||||
| Yamaha Motors | Outboard | 25 | |||||||||||||||||||||||||||||||
| Yamaha Motors | Outboard | 30 |
Supersession Chain
| Name | SKU | Superseding SKU |
|---|---|---|
| Lower Unit Gasket Kit | 6J8-W0001-22-00 | Current |
| 6J8-W0001-22-00 | 6J8-W0001-21-00 | Current |
| Lower Unit Gasket Kit(viewing) | 6J8-W0001-C2-00 | Current |
Aftermarket Interchange
| Name | SKU | Price | Brand |
|---|---|---|---|
| Gearcase Seal Kit (87833) | 87833 | $47.41 | |
| LOWER UNIT GASKET KIT | OMAX-6J8-W0001-21 | $1.00 | |
| Lower Unit Seal Kit | 26-00328 | $42.49 | |
| GEARCASE SEAL KIT (REC6J8-W0001-21) | REC6J8-W0001-21 | $49.89 | |
| Lower Unit Seal Kit | 18-2789 | $0.00 |
