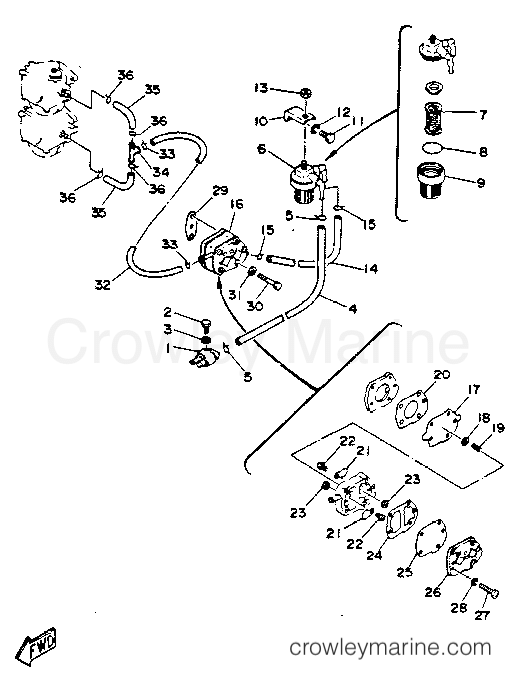

1993 Outboard 40hp - C40ELRR FUEL SYSTEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors C40ELRR - FUEL SYSTEM
Change View:
FILTER CUP
9
Yamaha Motors
FILTER CUP655-24521-01-00
Required: 1
.CUP, FILTER
Cross Ship
Leaves in 2-5 days
$17.20
$14.62
You save $2.58
More details
Filter Bracket
10
Yamaha Motors
Filter Bracket 648-24566-01-00
Required: 1
BRACKET, FILTER
Cross Ship
Leaves in 2-5 days
$16.60
$14.11
You save $2.49
More details
BOLT, HEXAGON DEEP RECESS
11
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Fuel Pipe 1
14
Yamaha Motors
Fuel Pipe 1676-24311-00-00
Required: 1
PIPE, FUEL 1
Cross Ship
Leaves in 2-5 days
$5.15
$4.38
You save $0.77
More details
Diaphragm
17
Yamaha Motors
Diaphragm648-24411-00-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$24.85
$21.12
You save $3.73
More details
Spring Seat
18
Yamaha Motors
Spring Seat648-24424-00-00
Required: 1
.SEAT, SPRING
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
Diaphragm Spring
19
Yamaha Motors
Diaphragm Spring648-24423-00-00
Required: 1
.SPRING, DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$5.30
$4.51
You save $0.79
More details
Body
26
Yamaha Motors
Body648-24413-01-00
Required: 1
.BODY 2
Cross Ship
Leaves in 2-5 days
$17.65
$15.00
You save $2.65
More details
Pipe 3
32
Yamaha Motors
Pipe 36E9-24313-00-00
Required: 1
PIPE 3
Cross Ship
Leaves in 2-5 days
$11.30
$9.61
You save $1.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
