All diagrams for this model

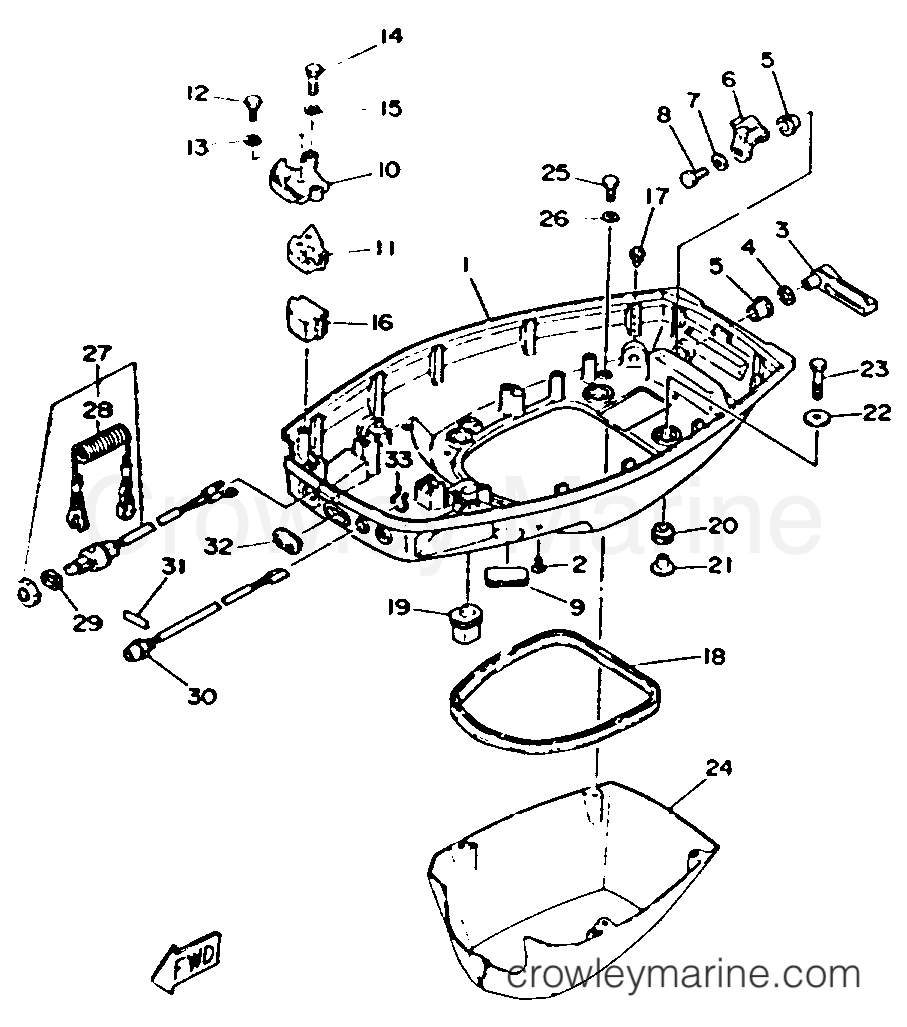

1993 Outboard 40hp - 40ESRR BOTTOM COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 40ESRR - BOTTOM COWLING
Change View:
Bottom Cowling
1
Yamaha Motors
Bottom Cowling6H4-42711-05-EK
Required: 1
BOTTOM COWLING
Cross Ship
Leaves in 2-5 days
$378.45
$321.68
You save $56.77
More details
Clamp Lever
6
Yamaha Motors
Clamp Lever6H4-42816-00-00
Required: 1
LEVER, CLAMP
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Grommet
9
Yamaha Motors
Grommet6H5-42726-00-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.85
$8.37
You save $1.48
More details
Remote Control Bracket
10
Yamaha Motors
Remote Control Bracket6H4-48531-00-94
Required: 1
BRACKET, REMOTE CONTROL 1
Cross Ship
Leaves in 2-5 days
$27.25
$23.16
You save $4.09
More details
Remote Control Bracket
11
Yamaha Motors
Remote Control Bracket6H4-48532-00-94
Required: 1
BRACKET, REMOTE CONTROL 2
Cross Ship
Leaves in 2-5 days
$32.65
$27.75
You save $4.90
More details
GROMMET, WATER TUBE (UPPER)
16
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6H4-42724-01-00
Required: 1
GROMMET
Supersedes: 6H4-42724-00-00
Cross Ship
Leaves in 2-5 days
$14.20
$12.07
You save $2.13
More details
Plate Washer
22
Yamaha Motors
Plate Washer90201-06416-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
APRON 1
24
Yamaha Motors
APRON 16H4-42741-00-00
Required: 1
APRON 1
Cross Ship
Leaves in 2-5 days
$86.95
$73.91
You save $13.04
More details
BOLT, HEXAGON DEEP RECESS
25
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 4
BOLT, HEX
Supersedes: 97395-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Stop Switch Attachment
29
Yamaha Motors
Stop Switch Attachment 6H4-82537-00-00
Required: 1
ATTACHMENT, STOP SWITCH
Cross Ship
Leaves in 2-5 days
$6.15
$5.23
You save $0.92
More details
Signal Lamp Mark
31
Yamaha Motors
Signal Lamp Mark6H4-85415-10-00
Required: 1
MARK, SIGNAL LAMP
Cross Ship
Leaves in 2-5 days
$7.60
$6.46
You save $1.14
More details
GROMMET, WATER TUBE (UPPER)
32
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6H3-42727-01-00
Required: 1
GROMMET
Supersedes: 6H3-42727-00-00
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
33
Yamaha Motors
Clamp90465-18147-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
