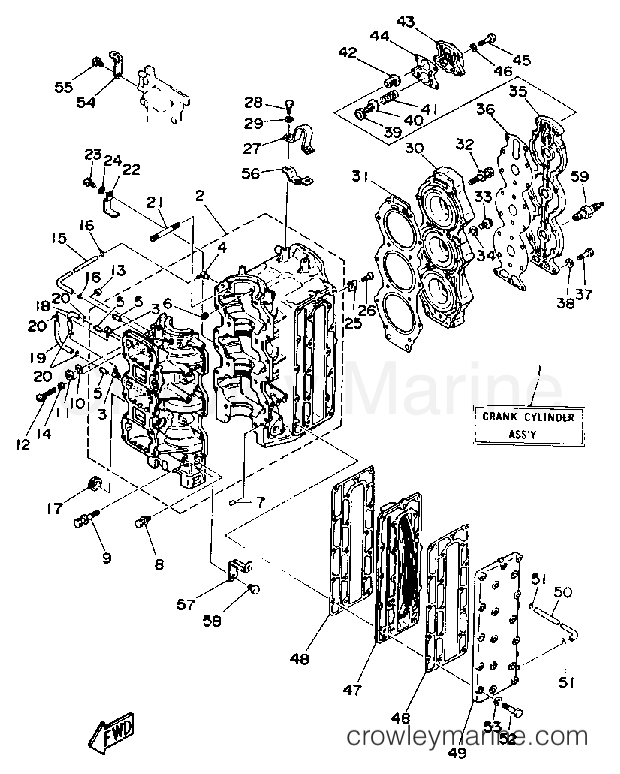

1990 Outboard 90hp - 90ETLD-JD CYLINDER CRANKCASE diagram
1
Yamaha Motors
Obsolete Yamaha Part6H1-W0090-42-1S
Required: 1
CRANK-CYLINDER. ASSEMBLY (REF. 2~58, & GRID A-4, REF.)
Supersedes: 6H1-W0090-40-EK
$3548.66
You save $626.24
2
Yamaha Motors
Crankcase Assembly6H1-15100-01-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6H1-15100-01-94
$1782.11
You save $314.49
3
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
.CHECK VALVE ASSY
Supersedes: 688-11370-00-00
In stock
Only 1 remaining
$13.56
You save $2.39
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 1
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$14.24
You save $2.51
$6.88
You save $1.21
6
Yamaha Motors
Bearing Lock663-11518-01-00
Required: 3
.LOCK, BEARING
$9.27
You save $1.63
In stock
Only 1 remaining
$5.74
You save $1.01
8
Yamaha Motors
Bolt with Washer90119-06M12-00
Required: 12
BOLT, WITH WASHER
$4.12
You save $0.73
9
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 6
BOLT, WITH WASHER
$4.67
You save $0.82
10
Yamaha Motors
Plate Washer90201-100F7-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57
11
Yamaha Motors
Nut95314-10600-00
Required: 2
NUT
Supersedes: 95313-10600-00
$2.17
You save $0.38
12
Yamaha Motors
Pan Head Screw90157-06M12-00
Required: 1
SCREW, PAN HEAD
Supersedes: 90157-06014-00
$5.35
You save $0.95
In stock
Only 2 remaining
$13.18
You save $2.33
In stock
Only 4 remaining
$8.07
You save $1.42
15
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L276)
Supersedes: 90445-07260-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
$7.14
You save $1.26
18
Yamaha Motors
Hose (L167)90445-07M02-00
Required: 1
HOSE (L100)
Supersedes: 90445-07M00-00
$6.29
You save $1.11
19
Yamaha Motors
Hose (L570)90445-07MF1-00
Required: 1
HOSE (L408)
Supersedes: 90445-07M23-00
In stock
Only 4 remaining
$6.93
You save $1.22
In stock
Only 3 remaining
$2.72
You save $0.48
$5.09
You save $0.90
In stock
Only 5 remaining
$8.20
You save $1.45
23
Yamaha Motors
Bolt97085-06010-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-06010-00
In stock
Only 5 remaining
$1.27
You save $0.22
24
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
In stock
5+ in stock
$5.95
You save $1.05
26
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 2
SCREW OVAL HEAD
Supersedes: 98680-04016-00
In stock
5+ in stock
$1.27
You save $0.22
27
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 688-11119-00-00
$12.66
You save $2.24
28
Yamaha Motors
Bolt97013-08020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-08020-00
$1.53
You save $0.27
29
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
$4.76
You save $0.84
30
Yamaha Motors
Cylinder Head6H1-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6H1-11111-01-94
In stock
5+ in stock
$265.88
You save $46.92
31
Yamaha Motors
Cylinder Head Gasket688-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 688-11181-A0-00
In stock
5+ in stock
$50.79
You save $8.96
32
Yamaha Motors
Bolt with Washer90119-08M07-00
Required: 14
BOLT, WITH WASHER
Supersedes: 90119-08M21-00
In stock
5+ in stock
$4.67
You save $0.82
33
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
35
Yamaha Motors
Cylinder Head Cover688-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 688-11191-00-9M
In stock
Only 1 remaining
$36.68
You save $6.47
36
Yamaha Motors
Head Cover Gasket688-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
In stock
5+ in stock
$17.98
You save $3.17
37
Yamaha Motors
Bolt90101-06M27-00
Required: 18
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$3.74
You save $0.66
40
Yamaha Motors
Pressure Control Valve688-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
5+ in stock
$11.77
You save $2.08
41
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.46
You save $1.14
42
Yamaha Motors
Thermostat6E5-12411-30-00
Required: 1
THERMOSTAT
Supersedes: 688-12411-10-00
In stock
5+ in stock
$27.50
You save $4.85
43
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 1
COVER, THERMOSTAT
Supersedes: 688-12413-00-9M
In stock
Only 3 remaining
$12.88
You save $2.27
44
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$4.97
You save $0.88
In stock
5+ in stock
$2.25
You save $0.40
46
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
47
Yamaha Motors
Exhaust Inner Cover688-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 688-41111-00-9M
In stock
Only 4 remaining
$37.95
You save $6.70
48
Yamaha Motors
Exhaust Inner Cover Gasket688-41112-A0-00
Required: 2
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$7.73
You save $1.37
49
Yamaha Motors
Obsolete Yamaha Part688-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Supersedes: 688-41113-00-9M
$45.90
You save $8.10
50
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 2
Supersedes: 663-24312-01-00
In stock
Only 4 remaining
$5.91
You save $1.04
In stock
5+ in stock
$8.07
You save $1.42
$1.36
You save $0.24
In stock
5+ in stock
$2.29
You save $0.41
$10.12
You save $1.79
55
Yamaha Motors
.BOLT97313-06012-00
Required: 2
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
$14.41
You save $2.54
$11.77
You save $2.08
58
Yamaha Motors
Bolt97013-08012-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-08012-00
$3.02
You save $0.53
59
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
