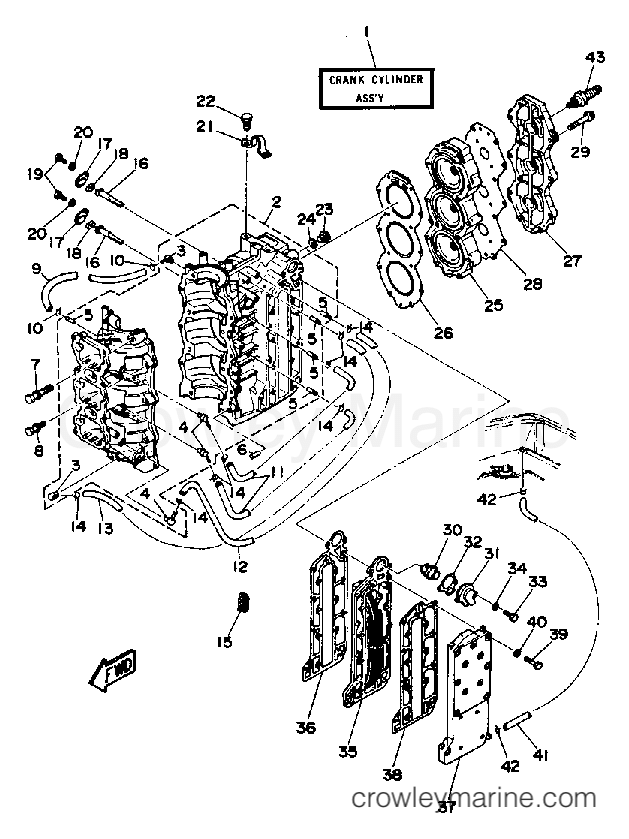

1990 Outboard 70hp - 70ETLD CYLINDER CRANKCASE diagram
1
Yamaha Motors
CRANK-CYLINDER. ASSEMBLY (REF.2~40 & GRID A-7, REF. 1)6H3-W0090-40-EK
Required: 1
CRANK CYLINDER ASSY
$2490.54
You save $439.51
2
Yamaha Motors
Crankcase Assembly6H3-15100-12-00
Required: 1
CRANKCASE ASSEMBLY
Supersedes: 6H3-15100-12-94
$1920.83
You save $338.97
3
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
.CHECK VALVE ASSY
Supersedes: 688-11370-00-00
In stock
Only 1 remaining
$13.56
You save $2.39
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 3
.CHECK VALVE ASSY
Supersedes: 650-11370-00-00
In stock
Only 4 remaining
$14.24
You save $2.51
$6.88
You save $1.21
In stock
Only 1 remaining
$5.74
You save $1.01
7
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 8
BOLT, WITH WASHER
$4.67
You save $0.82
8
Yamaha Motors
Bolt with Washer90119-08M17-00
Required: 6
BOLT, WITH WASHER
$2.67
You save $0.47
9
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
11
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 2
HOSE (L167)
Supersedes: 90445-07M02-00
In stock
5+ in stock
$6.29
You save $1.11
12
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L340)
Supersedes: 90445-07M45-00
In stock
Only 2 remaining
$6.29
You save $1.11
$19.54
You save $3.45
In stock
Only 3 remaining
$2.72
You save $0.48
$3.02
You save $0.53
16
Yamaha Motors
Anode6H3-11325-01-00
Required: 2
ANODE
Supersedes: 6H3-11325-00-00
In stock
Only 4 remaining
$5.23
You save $0.92
$27.63
You save $4.88
18
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 2
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
19
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-06016-00
$2.35
You save $0.41
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
Supersedes: 688-11119-00-00
$12.66
You save $2.24
22
Yamaha Motors
Bolt97013-08020-00
Required: 2
BOLT, HEXAGON
Supersedes: 97313-08020-00
$1.53
You save $0.27
23
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
25
Yamaha Motors
Cylinder Head6H3-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Supersedes: 6H3-11111-01-94
$265.88
You save $46.92
26
Yamaha Motors
Cylinder Head Gasket6H3-11181-A2-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: 6H3-11181-A0-00
In stock
5+ in stock
$42.20
You save $7.45
27
Yamaha Motors
Cylinder Head Cover6H3-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6H3-11191-00-9M
In stock
Only 1 remaining
$63.20
You save $11.15
28
Yamaha Motors
Head Cover Gasket6H3-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
In stock
5+ in stock
$29.07
You save $5.13
29
Yamaha Motors
Bolt with Washer90119-08M09-00
Required: 14
BOLT, WITH WASHER
In stock
5+ in stock
$3.87
You save $0.68
30
Yamaha Motors
Thermostat6H3-12411-11-00
Required: 1
THERMOSTAT
Supersedes: 6H3-12411-10-00
In stock
5+ in stock
$29.20
You save $5.15
31
Yamaha Motors
Thermostat Cover6H3-12413-00-9M
Required: 1
COVER, THERMOSTAT
$20.36
You save $3.59
32
Yamaha Motors
GASKET, COVER62Y-12414-01-00
Required: 1
GASKET, COVER
Supersedes: 6H3-12414-A1-00
In stock
5+ in stock
$8.63
You save $1.52
33
Yamaha Motors
Bolt90101-06M27-00
Required: 2
BOLT
Supersedes: 97313-06025-00
$2.85
You save $0.50
34
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
35
Yamaha Motors
Exhaust Inner Cover6H3-41111-01-1S
Required: 1
INNER COVER, EXHAUST
Supersedes: 6H3-41111-00-9M
In stock
5+ in stock
$36.80
You save $6.50
36
Yamaha Motors
Exhaust Inner Cover Gasket6H3-41112-A0-00
Required: 1
GASKET, EXHAUST
Supersedes: 6H3-41112-01-00
In stock
5+ in stock
$10.79
You save $1.90
37
Yamaha Motors
Exhaust Outer Cover6H3-41113-02-9M
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6H3-41113-00-9M
$78.29
You save $13.81
38
Yamaha Motors
Exhaust Outer Cover Gasket6H3-41114-A0-00
Required: 1
GASKET, EXHAUST OUTER COVER
In stock
5+ in stock
$10.79
You save $1.90
In stock
5+ in stock
$2.25
You save $0.40
In stock
5+ in stock
$2.42
You save $0.43
41
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 2
Supersedes: 663-24312-01-00
In stock
Only 4 remaining
$5.91
You save $1.04
In stock
5+ in stock
$8.07
You save $1.42
43
Yamaha Motors
NGK B8HS-10 SCREW TOP SPARK PLUGB8H-S1000-00-00
Required: 3
PLUG, SPARK (NGK B8HS-10)
Supersedes: NGK-B8HS1-00-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
