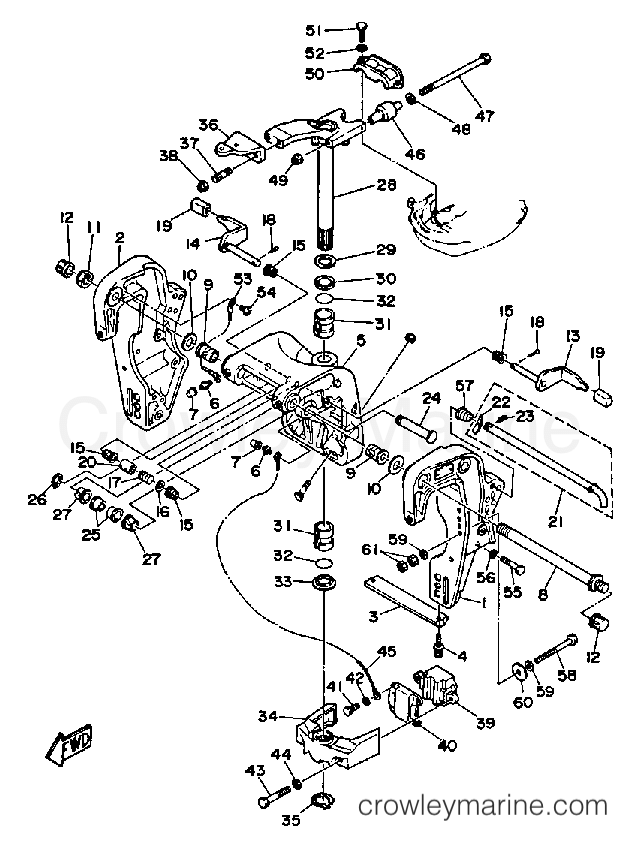

1989 Outboard 50hp - PR50LF BRACKET 1 diagram
1
Yamaha Motors
Clamp Bracket 697-43111-04-EK
Required: 1
BRACKET, CLAMP
$198.77
You save $35.08
2
Yamaha Motors
Clamp Bracket 697-43112-03-EK
Required: 1
BRACKET, CLAMP
$247.22
You save $43.63
3
Yamaha Motors
ANODE SET99999-03935-00
Required: 1
ANODE
Supersedes: 6H1-45251-01-00
$29.45
You save $5.20
$0.94
You save $0.17
5
Yamaha Motors
Swivel Bracket 1697-43311-03-EK
Required: 1
BRACKET, SWIVEL 1
$596.27
You save $105.23
6
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 3
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
7
Yamaha Motors
Grease Nipple Cap663-45119-01-00
Required: 3
CAP, GREASE NIPPLE
Supersedes: 663-45119-00-00
In stock
5+ in stock
$2.04
You save $0.36
8
Yamaha Motors
Clamp Bracket Bolt688-43131-03-00
Required: 1
BOLT, CLAMP BRACKET
In stock
Only 2 remaining
$131.03
You save $23.12
In stock
5+ in stock
$9.44
You save $1.67
10
Yamaha Motors
Plate Washer90201-22M67-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.80
You save $0.85
11
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-22043-00
In stock
5+ in stock
$20.36
You save $3.59
12
Yamaha Motors
Clamp Bracket Cap6G5-43145-01-00
Required: 2
CAP, CLAMP BRACKET
Supersedes: 6G5-43145-00-00
In stock
5+ in stock
$10.67
You save $1.88
13
Yamaha Motors
Tilt Stop Lever688-43181-04-00
Required: 1
LEVER, TILT STOP
$38.25
You save $6.75
14
Yamaha Motors
Tilt Stop Lever688-43185-04-00
Required: 1
LEVER, TILT STOP
$38.25
You save $6.75
In stock
5+ in stock
$4.72
You save $0.83
16
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
17
Yamaha Motors
Compression Spring90501-10M21-00
Required: 1
SPRING, COMPRESSION
$4.17
You save $0.74
18
Yamaha Motors
Cotter Pin91490-30045-00
Required: 2
PIN, COTTER
Supersedes: 91490-30040-00
In stock
Only 4 remaining
$3.39
You save $0.60
$10.67
You save $1.88
$12.66
You save $2.24
21
Yamaha Motors
Tilt Rod Assembly697-43160-00-00
Required: 1
TILT ROD ASSEMBLY
$42.54
You save $7.51
22
Yamaha Motors
Tilt Lock Plate688-43165-00-00
Required: 1
.PLATE, TILT LOCK
$10.67
You save $1.88
In stock
Only 1 remaining
$4.72
You save $0.83
24
Yamaha Motors
Upper Shock Mount Pin6E5-43126-02-00
Required: 1
PIN, UPPER SHOCK MOUNT
In stock
Only 5 remaining
$45.94
You save $8.11
In stock
5+ in stock
$8.59
You save $1.52
26
Yamaha Motors
Circle Clip93410-18M05-00
Required: 1
CIRCLIP
Supersedes: 93410-18M02-00
In stock
5+ in stock
$4.80
You save $0.85
In stock
5+ in stock
$13.30
You save $2.35
28
Yamaha Motors
Steering Bracket Assembly6H4-42510-02-EK
Required: 1
STEERING BRACKET ASSEMBLY
$264.14
You save $46.61
29
Yamaha Motors
Plate Washer90201-30M00-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.08
You save $1.07
$6.54
You save $1.16
In stock
Only 1 remaining
$13.30
You save $2.35
In stock
Only 1 remaining
$5.44
You save $0.96
In stock
Only 1 remaining
$7.31
You save $1.29
34
Yamaha Motors
Obsolete Yamaha Part6H4-44551-02-EK
Required: 1
HOUSING, LOWER MOUNT
Supersedes: 6H4-44551-01-EK
$151.85
You save $26.80
In stock
Only 5 remaining
$12.20
You save $2.15
36
Yamaha Motors
Steering Hook6H5-48511-51-4D
Required: 1
HOOK STEERING
Supersedes: 6H5-48511-51-EK
$53.80
You save $9.49
37
Yamaha Motors
Stud Bolt90116-10062-00
Required: 2
BOLT, STUD
Supersedes: 90116-10175-00
In stock
5+ in stock
$7.22
You save $1.27
38
Yamaha Motors
Self-Locking Nut90185-10027-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-10051-00
In stock
5+ in stock
$2.04
You save $0.36
39
Yamaha Motors
Lower Front Mount Damper6H4-44557-00-00
Required: 1
MOUNT DAMPER, LOWER FRONT
$66.43
You save $11.72
39
Yamaha Motors
Lower Front Mount Damper6H4-44557-10-00
Required: 1
MOUNT DAMPER, LOWER FRONT
$80.79
You save $14.26
40
Yamaha Motors
Lower Mount Cover6H4-44553-01-00
Required: 1
COVER, LOWER MOUNT
$48.92
You save $8.63
41
Yamaha Motors
Bolt97095-08025-00
Required: 4
BOLT
Supersedes: 97395-08025-00
In stock
5+ in stock
$8.07
You save $1.42
42
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
43
Yamaha Motors
Bolt97095-10060-00
Required: 2
BOLT
Supersedes: 97395-10060-00
$7.64
You save $1.35
44
Yamaha Motors
Plate Washer92990-10600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.55
You save $0.45
$20.10
You save $3.55
46
Yamaha Motors
Upper Side Mount Damper6H4-44514-00-00
Required: 2
MOUNT DAMPER, UPPER SIDE
$33.11
You save $5.84
$14.87
You save $2.62
48
Yamaha Motors
Plate Washer90201-09425-00
Required: 2
WASHER, PLATE
In stock
Only 2 remaining
$5.91
You save $1.04
49
Yamaha Motors
Self-Locking Nut90185-08018-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 90185-08045-00
In stock
5+ in stock
$3.91
You save $0.69
50
Yamaha Motors
UPPER MOUNT COVER6H4-44511-00-00
Required: 2
COVER, UPPER MOUNT
Supersedes: 6H4-44511-00-94
$14.96
You save $2.64
51
Yamaha Motors
Bolt97095-08035-00
Required: 3
BOLT
Supersedes: 97090-08035-00
In stock
5+ in stock
$4.67
You save $0.82
52
Yamaha Motors
Spring Washer92990-08100-00
Required: 3
WASHER, SPRING
$4.76
You save $0.84
In stock
Only 1 remaining
$19.46
You save $3.44
54
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98580-06012-00
$2.85
You save $0.50
55
Yamaha Motors
Bolt97095-10045-00
Required: 6
BOLT
Supersedes: 97395-10045-00
In stock
5+ in stock
$9.31
You save $1.64
56
Yamaha Motors
Spring Washer92990-10100-00
Required: 6
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.49
57
Yamaha Motors
Conical Spring90502-20M03-00
Required: 1
SPRING, CONICAL
$8.59
You save $1.52
$28.26
You save $4.99
59
Yamaha Motors
Washer92990-12200-00
Required: 8
WASHER
Supersedes: 92995-12200-00
In stock
Only 1 remaining
$8.07
You save $1.42
60
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$8.71
You save $1.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
