All diagrams for this model

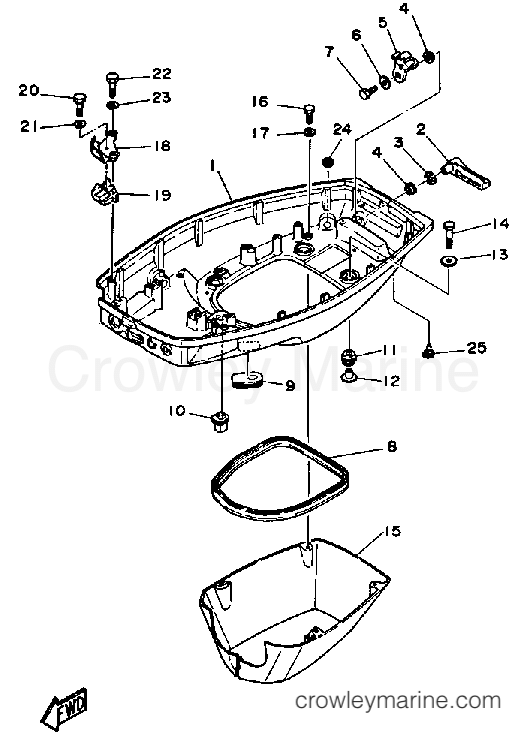

1987 Outboard 50hp - 50ESH-JD BOTTOM COWLING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 50ESH-JD - BOTTOM COWLING
Change View:
Bottom Cowling
1
Yamaha Motors
Bottom Cowling6H4-42711-05-EK
Required: 1
BOTTOM COWLING
Cross Ship
Leaves in 2-5 days
$378.45
$321.68
You save $56.77
More details
Clamp Lever
5
Yamaha Motors
Clamp Lever6H4-42816-00-00
Required: 1
LEVER, CLAMP
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Plate Washer
13
Yamaha Motors
Plate Washer90201-06416-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
APRON 1
15
Yamaha Motors
APRON 16H4-42741-00-00
Required: 1
APRON 1
Cross Ship
Leaves in 2-5 days
$86.95
$73.91
You save $13.04
More details
BOLT, HEXAGON DEEP RECESS
16
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 4
BOLT, HEXAGON
Supersedes: 97313-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Hexagon bolt
20
Yamaha Motors
Hexagon bolt97313-05016-00
Required: 1
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Hexagon Bolt
22
Yamaha Motors
Hexagon Bolt97313-06020-00
Required: 2
BOLT, HEXAGON
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
