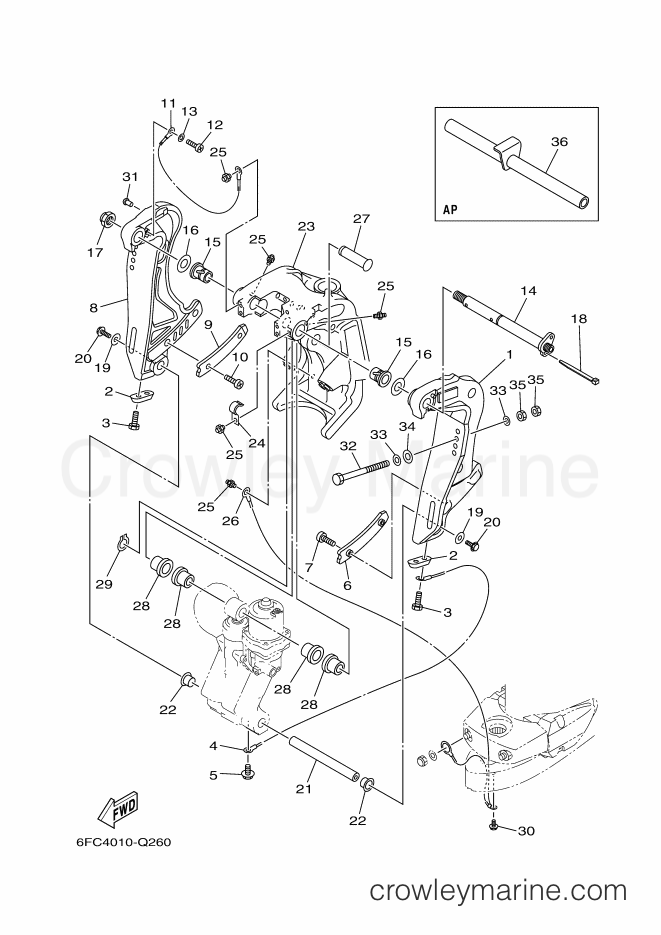

2016 International VMAX - VMAX (6FC4) [020] BRACKET 1 diagram
![Yamaha Motors VMAX (6FC4) [020] - BRACKET 1](https://cdn.crowleymarine.com/yamaha/gvhggZXK.png)
1
Yamaha Motors
Clamp Bracket 16CB-43111-10-8D
Required: 1
BRACKET, CLAMP 1
Supersedes: 6CB-43111-02-8D
$348.88
You save $61.57
In stock
Only 5 remaining
$10.84
You save $1.91
In stock
5+ in stock
$3.36
You save $0.59
In stock
Only 1 remaining
$19.46
You save $3.44
5
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06510-00
Required: 1
BOLT, WITH WASHER
Supersedes: 97595-06510-00
In stock
Only 4 remaining
$0.68
You save $0.12
6
Yamaha Motors
WASHER, FRICTION61A-43132-01-00
Required: 1
WASHER, FRICTION
Supersedes: 61A-43132-00-00
$24.27
You save $4.28
7
Yamaha Motors
Screw With Washer97985-06210-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06010-00
In stock
Only 2 remaining
$2.72
You save $0.48
8
Yamaha Motors
Clamp Bracket 26CB-43112-10-8D
Required: 1
BRACKET, CLAMP 2
Supersedes: 6CB-43112-01-8D
$341.27
You save $60.23
9
Yamaha Motors
WASHER,FRICTION61A-43133-01-00
Required: 1
WASHER,FRICTION
Supersedes: 61A-43133-00-00
In stock
Only 1 remaining
$24.27
You save $4.28
10
Yamaha Motors
Screw With Washer97985-06210-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06010-00
In stock
Only 2 remaining
$2.72
You save $0.48
In stock
Only 1 remaining
$19.46
You save $3.44
12
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
$2.85
You save $0.50
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
14
Yamaha Motors
Clamp Bracket Bolt64E-43131-30-00
Required: 1
BOLT, CLAMP BRACKET
$125.67
You save $22.18
In stock
5+ in stock
$25.12
You save $4.43
16
Yamaha Motors
Plate Washer90201-26M59-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.68
You save $0.83
17
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-22M11-00
In stock
5+ in stock
$20.36
You save $3.59
18
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
19
Yamaha Motors
Plate Washer90201-10060-00
Required: 2
WASHER, PLATE
In stock
Only 3 remaining
$12.28
You save $2.17
20
Yamaha Motors
Bolt with Washer97575-10530-00
Required: 2
BOLT, WITH WASHER
In stock
Only 4 remaining
$6.54
You save $1.16
21
Yamaha Motors
Lower Shock Mount Pin6BC-43818-00-00
Required: 1
PIN, LOWER SHOCK MOUNT
$99.54
You save $17.56
In stock
5+ in stock
$5.74
You save $1.01
23
Yamaha Motors
Swivel Bracket64E-43311-10-8D
Required: 1
BRACKET, SWIVEL 1
$753.57
You save $132.98
$9.69
You save $1.71
25
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 5
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
$25.12
You save $4.43
27
Yamaha Motors
Upper Shock Mount Pin64E-43126-00-00
Required: 1
PIN, UPPER SHOCK MOUNT
$66.43
You save $11.72
In stock
5+ in stock
$5.74
You save $1.01
In stock
Only 2 remaining
$5.61
You save $0.99
30
Yamaha Motors
DEEP FLANGE BOLT95D95-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06010-00
$0.68
You save $0.12
$2.72
You save $0.48
32
Yamaha Motors
Bolt (L:130Mm)90101-12M05-00
Required: 4
BOLT (L:130MM)
$29.32
You save $5.18
33
Yamaha Motors
Plate Washer90201-13M01-00
Required: 8
WASHER, PLATE
$1.91
You save $0.34
34
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$8.71
You save $1.54
36
Yamaha Motors
Tilt Lock Shaft6CB-43611-00-00
Required: 1
SHAFT, TILT LOCK
$218.92
You save $38.63
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
