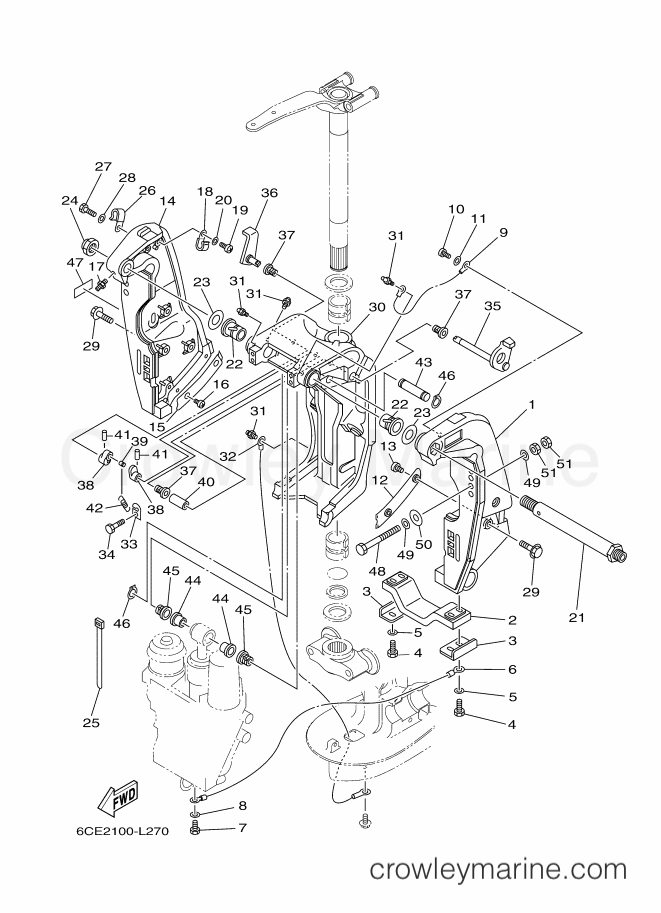

2012 International 250hp - LF250XCA-2012 (6CH2) [060] BRACKET 1 diagram
![Yamaha Motors LF250XCA-2012 (6CH2) [060] - BRACKET 1](https://cdn.crowleymarine.com/yamaha/DMB4HOR8.png)
1
Yamaha Motors
Clamp Bracket 169J-43111-03-8D
Required: 1
BRACKET, CLAMP 1
Supersedes: 69J-43111-01-8D
In stock
Only 1 remaining
$341.27
You save $60.23
In stock
5+ in stock
$24.99
You save $4.41
In stock
Only 2 remaining
$7.73
You save $1.37
$2.85
You save $0.50
5
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
6
Yamaha Motors
Lead Wire6T4-82117-00-00
Required: 1
WIRE, LEAD 4
Supersedes: 6H1-82148-00-00
In stock
Only 2 remaining
$15.21
You save $2.69
$5.09
You save $0.90
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$19.46
You save $3.44
10
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
$2.85
You save $0.50
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
WASHER, FRICTION61A-43132-01-00
Required: 1
WASHER, FRICTION
Supersedes: 61A-43132-00-00
$24.27
You save $4.28
13
Yamaha Motors
Screw With Washer97985-06210-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06010-00
In stock
Only 2 remaining
$2.72
You save $0.48
14
Yamaha Motors
Clamp Bracket 269J-43112-02-8D
Required: 1
BRACKET, CLAMP 2
Supersedes: 69J-43112-01-8D
In stock
Only 1 remaining
$443.91
You save $78.34
15
Yamaha Motors
WASHER,FRICTION61A-43133-01-00
Required: 1
WASHER,FRICTION
Supersedes: 61A-43133-00-00
In stock
Only 1 remaining
$24.27
You save $4.28
16
Yamaha Motors
Screw With Washer97985-06210-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97885-06010-00
In stock
Only 2 remaining
$2.72
You save $0.48
17
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
$6.54
You save $1.16
19
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
$2.85
You save $0.50
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
Clamp Bracket Bolt6R3-43131-00-00
Required: 1
BOLT, CLAMP BRACKET
In stock
Only 4 remaining
$114.54
You save $20.21
In stock
5+ in stock
$25.12
You save $4.43
23
Yamaha Motors
Plate Washer90201-26M59-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$4.68
You save $0.83
24
Yamaha Motors
Self-Locking Nut90185-22007-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-22M11-00
In stock
5+ in stock
$20.36
You save $3.59
25
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
$6.54
You save $1.16
In stock
5+ in stock
$1.32
You save $0.23
28
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
29
Yamaha Motors
Bolt with Washer90119-10024-00
Required: 8
BOLT, WITH WASHER
In stock
5+ in stock
$8.84
You save $1.56
30
Yamaha Motors
Swivel Bracket61A-43311-22-8D
Required: 1
BRACKET, SWIVEL 1
Supersedes: 61A-43311-21-8D
In stock
Only 1 remaining
$1138.19
You save $200.86
31
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 5
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
$17.55
You save $3.10
In stock
Only 1 remaining
$6.08
You save $1.07
$5.09
You save $0.90
35
Yamaha Motors
Tilt Stop Lever61A-43181-01-00
Required: 1
LEVER, TILT STOP 1
In stock
Only 2 remaining
$55.08
You save $9.72
36
Yamaha Motors
Tilt Stop Lever6G5-43185-02-00
Required: 1
LEVER, TILT STOP 2
In stock
5+ in stock
$55.08
You save $9.72
In stock
5+ in stock
$4.72
You save $0.83
38
Yamaha Motors
Distance Collar6G5-43148-00-00
Required: 2
COLLAR, DISTANCE
In stock
5+ in stock
$8.03
You save $1.42
In stock
5+ in stock
$7.73
You save $1.37
$5.23
You save $0.92
In stock
5+ in stock
$3.02
You save $0.53
42
Yamaha Motors
Tension Spring90506-16003-00
Required: 1
SPRING, TENSION
$5.31
You save $0.94
43
Yamaha Motors
Upper Shock Mount Pin6E5-43126-10-00
Required: 1
PIN, UPPER SHOCK MOUNT
$33.19
You save $5.86
In stock
5+ in stock
$8.59
You save $1.52
In stock
Only 2 remaining
$8.84
You save $1.56
In stock
5+ in stock
$4.80
You save $0.85
47
Yamaha Motors
Label (Spark, Ignition))63V-82377-50-00
Required: 1
LABEL (SPARK,IGNITION)
$3.49
You save $0.62
48
Yamaha Motors
BOLT (L:150MM)90101-12066-00
Required: 2
BOLT (L:150MM)
Supersedes: 90101-12M77-00
$29.32
You save $5.18
48
Yamaha Motors
Bolt (L:130Mm)90101-12M05-00
Required: 4
BOLT (L:130MM)
$29.32
You save $5.18
49
Yamaha Motors
Plate Washer90201-13M01-00
Required: 8
WASHER, PLATE
$1.91
You save $0.34
50
Yamaha Motors
Plate Washer90201-12426-00
Required: 4
WASHER, PLATE
In stock
Only 1 remaining
$1.91
You save $0.34
$8.71
You save $1.54
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
