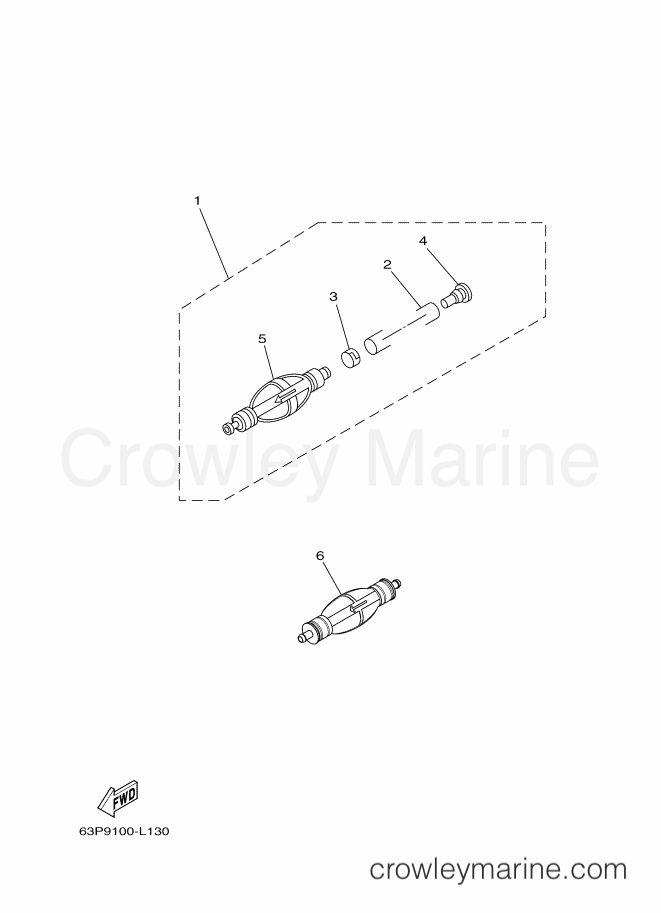

2012 International 115hp - LF115XA-2012 (68WB) [060] FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Yamaha Motors LF115XA-2012 (68WB) [060] - FUEL 2

Change View:

Yamaha Motors

FUEL PIPE COMP. 16YL-24306-64-00

Required: 1

FUEL PIPE COMP. 2

Supersedes: 6Y2-24307-50-00

In stock

5+ in stock

~~$100.65~~

$85.55

You save $15.10

More details

Yamaha Motors

.HOSE (L2050)90445-13M01-00

Required: 1

. HOSE (L2050)

~~$28.65~~

$24.35

You save $4.30

. BAND 1

~~$10.40~~

$8.84

You save $1.56

More details

Yamaha Motors

Grommet90480-06M19-00

Required: 1

. GROMMET

~~$5.35~~

$4.55

You save $0.80

More details

Yamaha Motors

6YK-24360-71-006YK-24360-70-00

Required: 1

. PRIMER PUMP ASSY

Supersedes: 6Y2-24360-60-00

~~$42.45~~

$36.08

You save $6.37

More details

Yamaha Motors

Primer Pump Assembly6YK-24360-73-00

Required: 1

PRIMER PUMP ASSY

Supersedes: 6YK-24360-71-00

In stock

5+ in stock

~~$41.80~~

$35.53

You save $6.27

More details
