All diagrams for this model

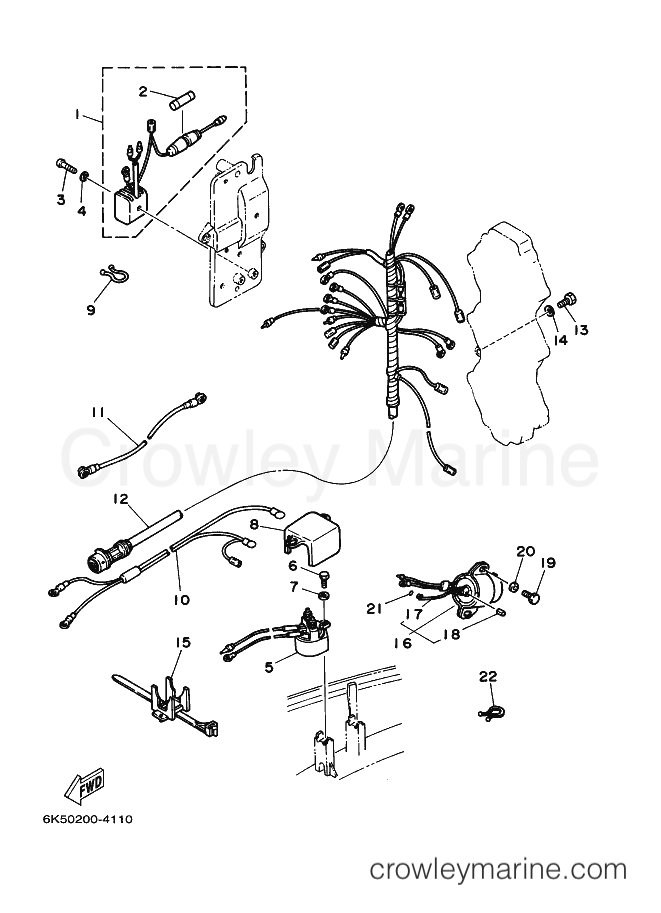

2012 International 60hp - E60HMHD (69DC) [020] ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors E60HMHD (69DC) [020] - ELECTRICAL 3
Change View:
Rectifier Assembly
1
Yamaha Motors
Rectifier Assembly6G1-81970-63-00
Required: 1
RECTIFIER ASSY
Supersedes: 6G1-81970-62-00
Cross Ship
Leaves in 2-5 days
$103.75
$88.19
You save $15.56
More details
Fuse (10A)
2
Yamaha Motors
Fuse (10A)1E6-82151-00-00
Required: 1
. FUSE (10A)
Supersedes: 6G1-82151-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Relay Assembly
5
Yamaha Motors
Relay Assembly688-81950-10-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 6-30 days
$135.40
$115.09
You save $20.31
More details
BOLT, HEXAGON DEEP RECESS
6
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97013-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
CASE 2
8
Yamaha Motors
CASE 26H3-82164-01-00
Required: 1
CASE 2
Supersedes: 6H3-82164-00-00
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details
Clamp
9
Yamaha Motors
Clamp90464-15M11-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.52
$2.14
You save $0.38
More details
BATTERY CABLE
10
Yamaha Motors
BATTERY CABLE66T-82105-J2-00
Required: 1
WIRE HARNESS
Supersedes: 6H3-82105-01-00
Cross Ship
Leaves in 2-5 days
$148.45
$126.18
You save $22.27
More details
WIRE, LEAD
11
Yamaha Motors
WIRE, LEAD6H3-82117-01-00
Required: 1
WIRE, LEAD
Supersedes: 6H3-82117-00-00
Cross Ship
Leaves in 2-5 days
$24.75
$21.04
You save $3.71
More details
12
Required: 1
WIRE HARNESS ASSY
Price unavailable
Clamp
15
Yamaha Motors
Clamp688-82594-00-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$11.55
$9.82
You save $1.73
More details
Solenoid
16
Yamaha Motors
Solenoid6H3-86110-02-00
Required: 1
SOLENOID
Cross Ship
Leaves in 2-5 days
$145.55
$123.72
You save $21.83
More details
Pull Wire
17
Yamaha Motors
Pull Wire6H3-86116-00-00
Required: 1
. WIRE, PULL
Cross Ship
Leaves in 2-5 days
$11.55
$9.82
You save $1.73
More details
BOLT, HEXAGON DEEP RECESS
19
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97013-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Clamp
22
Yamaha Motors
Clamp90465-18147-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
