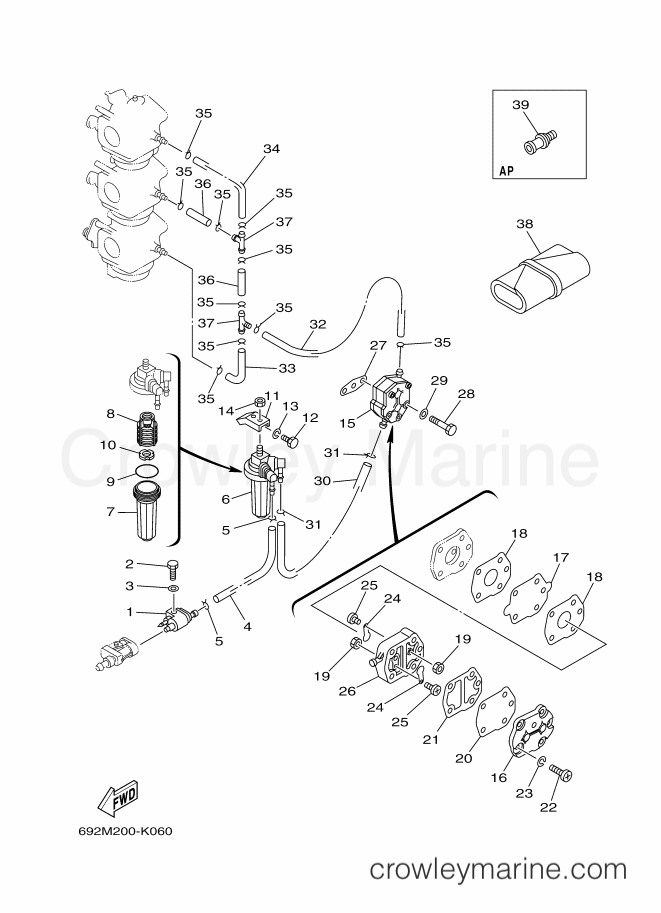

2012 International 85hp - 85AETL (688C) [190] FUEL diagram
![Yamaha Motors 85AETL (688C) [190] - FUEL](https://cdn.crowleymarine.com/yamaha/PZ6wOh2u.png)
1
Yamaha Motors
FUEL PIPE JOINT COMP. 16G1-24304-11-00
Required: 1
FUEL PIPE JOINT COMP. 1
Supersedes: 6G1-24304-02-00
In stock
Only 5 remaining
$29.92
You save $5.28
2
Yamaha Motors
Bolt97080-06020-00
Required: 1
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68
3
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
4
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L185)
Supersedes: 90445-09090-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
6
Yamaha Motors
Filter Assembly64J-24560-11-00
Required: 1
FILTER ASSY
Supersedes: 64J-24560-00-00
$14.58
You save $2.57
7
Yamaha Motors
Filter Cup68V-24521-01-00
Required: 1
. CUP, FILTER
In stock
Only 4 remaining
$10.20
You save $1.80
8
Yamaha Motors
Element Filter61N-24563-10-00
Required: 1
. ELEMENT, FILTER
Supersedes: 61N-24563-00-00
In stock
5+ in stock
$11.18
You save $1.97
In stock
5+ in stock
$2.85
You save $0.50
10
Yamaha Motors
Water Level Float68V-24469-01-00
Required: 1
. FLOAT, WATER LEVEL
In stock
5+ in stock
$4.80
You save $0.85
11
Yamaha Motors
Filter Bracket648-24566-02-00
Required: 1
BRACKET, FILTER
$12.15
You save $2.14
In stock
5+ in stock
$1.32
You save $0.23
13
Yamaha Motors
.WASHER, SPRING92990-06100-00
Required: 1
WASHER, SPRING
Supersedes: 92903-06100-00
$2.93
You save $0.52
In stock
Only 1 remaining
$7.22
You save $1.27
15
Yamaha Motors
Fuel Pump Assembly692-24410-01-00
Required: 1
FUEL PUMP ASSY
Supersedes: 692-24410-00-00
In stock
5+ in stock
$45.94
You save $8.11
$16.19
You save $2.86
In stock
5+ in stock
$11.81
You save $2.09
18
Yamaha Motors
Body Gasket648-24434-01-00
Required: 2
. GASKET, BODY
In stock
5+ in stock
$7.31
You save $1.29
In stock
Only 3 remaining
$1.57
You save $0.28
In stock
Only 2 remaining
$9.27
You save $1.63
21
Yamaha Motors
GASKET, BODY 2648-24435-03-00
Required: 1
. GASKET, BODY 2
Supersedes: 648-24435-02-00
In stock
5+ in stock
$11.81
You save $2.09
22
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 3
. SCREW, PAN HEAD
Supersedes: 98503-05028-00
$4.04
You save $0.71
23
Yamaha Motors
Spring Washer92990-05100-00
Required: 3
. WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
24
Yamaha Motors
Check Valve62Y-24421-01-00
Required: 2
. VALVE, CHECK
Supersedes: 6A0-24421-01-00
In stock
5+ in stock
$13.00
You save $2.29
25
Yamaha Motors
Pan Head Screw6A0-14325-00-00
Required: 2
. SCREW, PAN HEAD
In stock
Only 3 remaining
$4.55
You save $0.80
In stock
Only 1 remaining
$81.51
You save $14.39
27
Yamaha Motors
Fuel Pump Gasket650-24431-A0-00
Required: 1
GASKET, FUEL PUMP 1
In stock
5+ in stock
$2.98
You save $0.52
In stock
5+ in stock
$2.38
You save $0.42
29
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
30
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L205)
Supersedes: 90445-09221-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$8.07
You save $1.42
32
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L250)
Supersedes: 90445-09097-00
In stock
5+ in stock
$10.62
You save $1.87
In stock
5+ in stock
$14.41
You save $2.54
In stock
5+ in stock
$14.41
You save $2.54
In stock
5+ in stock
$8.07
You save $1.42
36
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 2
HOSE (L30)
Supersedes: 90445-09220-00
$7.22
You save $1.27
37
Yamaha Motors
Joint Pipe688-24378-00-00
Required: 2
PIPE, JOINT 3
In stock
5+ in stock
$14.03
You save $2.47
38
Yamaha Motors
TOOL KIT656-W2810-03-00
Required: 1
TOOL KIT
Supersedes: 656-W2810-02-00
$38.04
You save $6.71
39
Yamaha Motors
WATER CHECK PLUG6E0-28193-00-00
Required: 1
PLUG, WATER CHECK
Supersedes: 6E0-28193-00-94
In stock
Only 1 remaining
$6.21
You save $1.10
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
