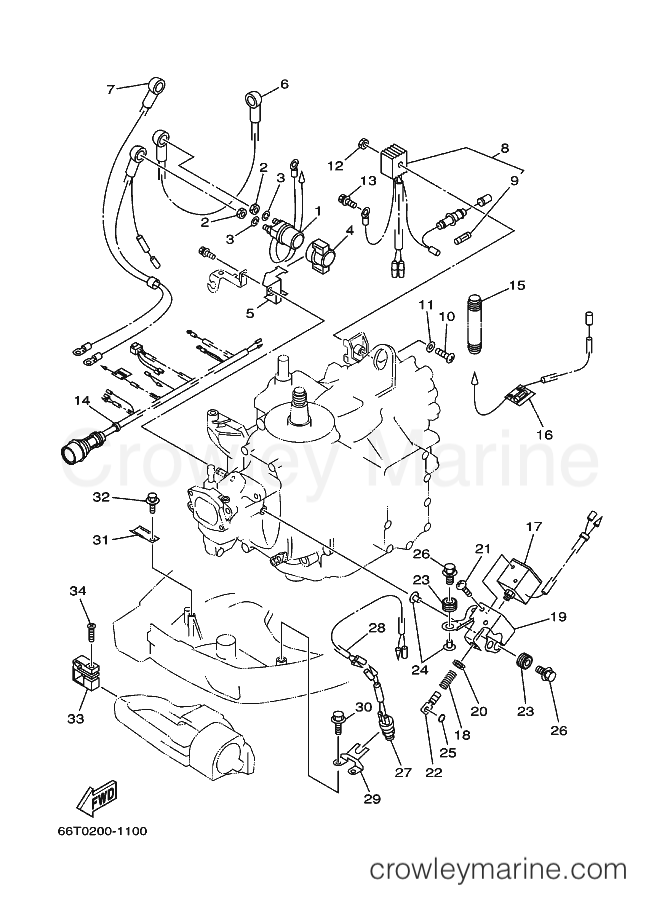

2007 International 40hp - (E)40X (66TD) [060] ELECTRICAL 2 diagram
![Yamaha Motors (E)40X (66TD) [060] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/hhSb2xqS.png)
1
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
RELAY
Supersedes: 6G1-8194A-10-00
In stock
5+ in stock
$74.84
You save $13.21
$2.17
You save $0.38
3
Yamaha Motors
Spring Washer90204-06M00-00
Required: 2
WASHER, SPRING
In stock
Only 3 remaining
$2.68
You save $0.47
4
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$12.07
You save $2.13
5
Yamaha Motors
Switch Fitting Plate6L2-81945-00-00
Required: 1
PLATE, SWITCH FITTING
$12.03
You save $2.12
6
Yamaha Motors
WIRE, LEAD6E5-82117-02-00
Required: 1
WIRE, LEAD
Supersedes: 6E5-82117-01-00
$13.26
You save $2.34
7
Required: 1
WIRE HARNESS
Price unavailable
8
Yamaha Motors
Rectifier Assembly6G1-81970-63-00
Required: 1
RECTIFIER ASSY
Supersedes: 6G1-81970-61-00
$88.19
You save $15.56
9
Yamaha Motors
Fuse (10A)1E6-82151-00-00
Required: 1
. FUSE (10A)
Supersedes: 6G1-82151-00-00
$7.22
You save $1.27
10
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-05030-00
$4.04
You save $0.71
11
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
In stock
Only 5 remaining
$8.07
You save $1.42
In stock
Only 2 remaining
$2.51
You save $0.44
14
Required: 1
WIRE HARNESS ASSY
Price unavailable
15
Yamaha Motors
Tube66T-83557-00-00
Required: 1
TUBE (I.DIA:13MM)
$2.04
You save $0.36
15
Yamaha Motors
Tube6N7-83557-00-00
Required: 1
TUBE (I.DIA:22MM)
$6.33
You save $1.12
16
Required: 1
WIRE, PLUS LEAD
Price unavailable
17
Required: 1
COIL, SOLENOID
Price unavailable
18
Required: 1
WIRE, PULL
Price unavailable
19
Required: 1
STAY, SOLENOID
Price unavailable
$5.70
You save $1.00
21
Yamaha Motors
Screw With Washer97980-05108-00
Required: 4
SCREW, PAN HEAD
Supersedes: 97880-05008-00
$4.08
You save $0.72
22
Yamaha Motors
Wire Pull Hook682-86117-00-00
Required: 1
HOOK, WIRE PULL
$12.03
You save $2.12
In stock
Only 3 remaining
$8.20
You save $1.45
In stock
Only 1 remaining
$7.31
You save $1.29
In stock
5+ in stock
$5.82
You save $1.03
26
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
In stock
Only 3 remaining
$1.69
You save $0.30
27
Yamaha Motors
Obsolete Yamaha Part688-82540-12-00
Required: 1
NEUTRAL SWITCH ASSY
Supersedes: 6F5-82540-00-00
In stock
Only 5 remaining
$40.76
You save $7.19
28
Required: 1
EXTENSION, WIRE LEAD
Price unavailable
29
Required: 1
STAY, NEUTRAL SWITCH
Price unavailable
In stock
Only 5 remaining
$1.54
You save $0.27
31
Yamaha Motors
CLAMP90462-20007-00
Required: 1
CLAMP
Supersedes: 90465-20M31-00
$2.54
You save $0.45
In stock
Only 5 remaining
$1.54
You save $0.27
In stock
Only 1 remaining
$4.80
You save $0.85
34
Yamaha Motors
Tapping Screw90161-06M03-00
Required: 1
SCREW, TAPPING
Supersedes: 90161-06M00-00
$3.91
You save $0.69
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
