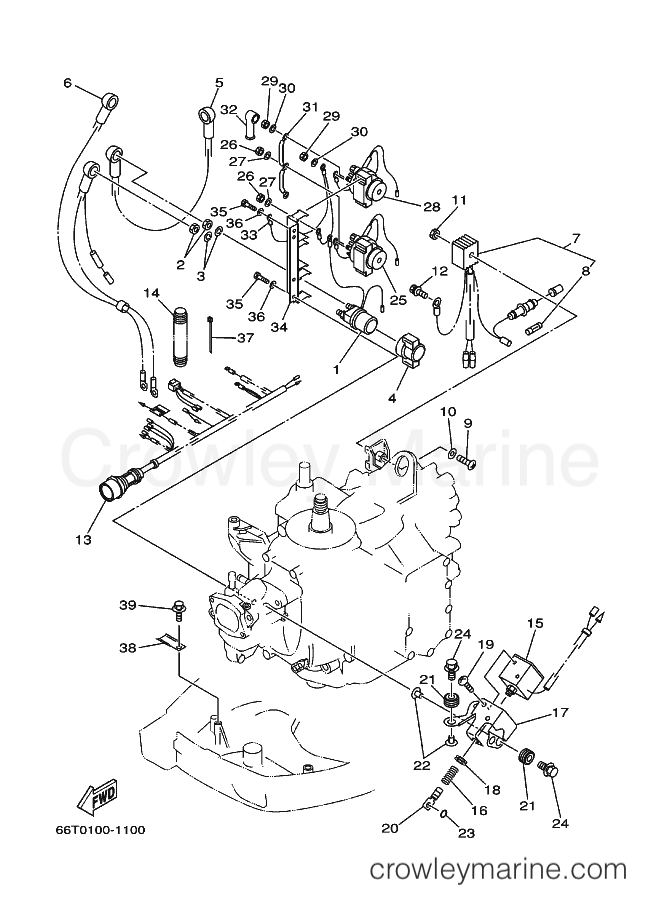

2002 International 40hp - (E)40X (66T3) [270] ELECTRICAL 2 diagram
![Yamaha Motors (E)40X (66T3) [270] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/NjL826Rj.png)
1
Yamaha Motors
Starter Relay6G1-81941-10-00
Required: 1
RELAY
Supersedes: 6G1-8194A-10-00
In stock
5+ in stock
$74.84
You save $13.21
$2.17
You save $0.38
3
Yamaha Motors
Spring Washer90204-06M00-00
Required: 2
WASHER, SPRING
In stock
Only 3 remaining
$2.68
You save $0.47
4
Yamaha Motors
HOLDER, RELAY6G1-81952-01-00
Required: 1
HOLDER, RELAY
Supersedes: 6G1-81952-00-00
$12.07
You save $2.13
5
Yamaha Motors
WIRE, LEAD6E5-82117-02-00
Required: 1
WIRE, LEAD
Supersedes: 6E5-82117-01-00
$13.26
You save $2.34
6
Required: 1
WIRE HARNESS
Price unavailable
7
Yamaha Motors
Rectifier Assembly6G1-81970-63-00
Required: 1
RECTIFIER ASSY
Supersedes: 6G1-81970-61-00
$88.19
You save $15.56
8
Yamaha Motors
Fuse (10A)1E6-82151-00-00
Required: 1
. FUSE (10A)
Supersedes: 6G1-82151-00-00
$7.22
You save $1.27
9
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 1
SCREW, PAN HEAD
Supersedes: 97880-05030-00
$4.04
You save $0.71
10
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
In stock
Only 5 remaining
$8.07
You save $1.42
In stock
Only 2 remaining
$2.51
You save $0.44
13
Required: 1
WIRE HARNESS ASSY
Price unavailable
14
Yamaha Motors
Tube6N7-83557-00-00
Required: 1
TUBE (I.DIA:22MM)
$6.33
You save $1.12
15
Required: 1
COIL, SOLENOID
Price unavailable
16
Required: 1
WIRE, PULL
Price unavailable
17
Required: 1
STAY, SOLENOID
Price unavailable
$5.70
You save $1.00
19
Yamaha Motors
Screw With Washer97980-05108-00
Required: 4
SCREW, PAN HEAD
Supersedes: 97880-05008-00
$4.08
You save $0.72
20
Yamaha Motors
Wire Pull Hook682-86117-00-00
Required: 1
HOOK, WIRE PULL
$12.03
You save $2.12
In stock
Only 3 remaining
$8.20
You save $1.45
In stock
Only 1 remaining
$7.31
You save $1.29
In stock
5+ in stock
$5.82
You save $1.03
24
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
In stock
Only 3 remaining
$1.69
You save $0.30
$147.31
You save $26.00
$2.17
You save $0.38
27
Yamaha Motors
Spring Washer90204-06M00-00
Required: 3
WASHER, SPRING
In stock
Only 3 remaining
$2.68
You save $0.47
28
Yamaha Motors
Obsolete Yamaha Part6E5-8195A-01-00
Required: 1
RELAY ASSY
Supersedes: 6E5-8195C-01-00
In stock
Only 1 remaining
$147.31
You save $26.00
$2.17
You save $0.38
30
Yamaha Motors
Spring Washer90204-06M00-00
Required: 3
WASHER, SPRING
In stock
Only 3 remaining
$2.68
You save $0.47
$16.62
You save $2.93
32
Yamaha Motors
Lead Wire Cover6G5-82119-10-00
Required: 4
COVER, LEAD WIRE
Supersedes: 6G5-82119-00-00
In stock
Only 2 remaining
$8.84
You save $1.56
33
Yamaha Motors
WIRE, MINUS LEAD6E5-82116-01-00
Required: 1
WIRE, MINUS LEAD
Supersedes: 6E5-82116-00-00
$16.62
You save $2.93
34
Required: 1
BRACKET
Price unavailable
$2.35
You save $0.41
36
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
37
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
38
Yamaha Motors
CLAMP90462-20007-00
Required: 1
CLAMP
Supersedes: 90465-20M31-00
$2.54
You save $0.45
In stock
Only 5 remaining
$1.54
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
