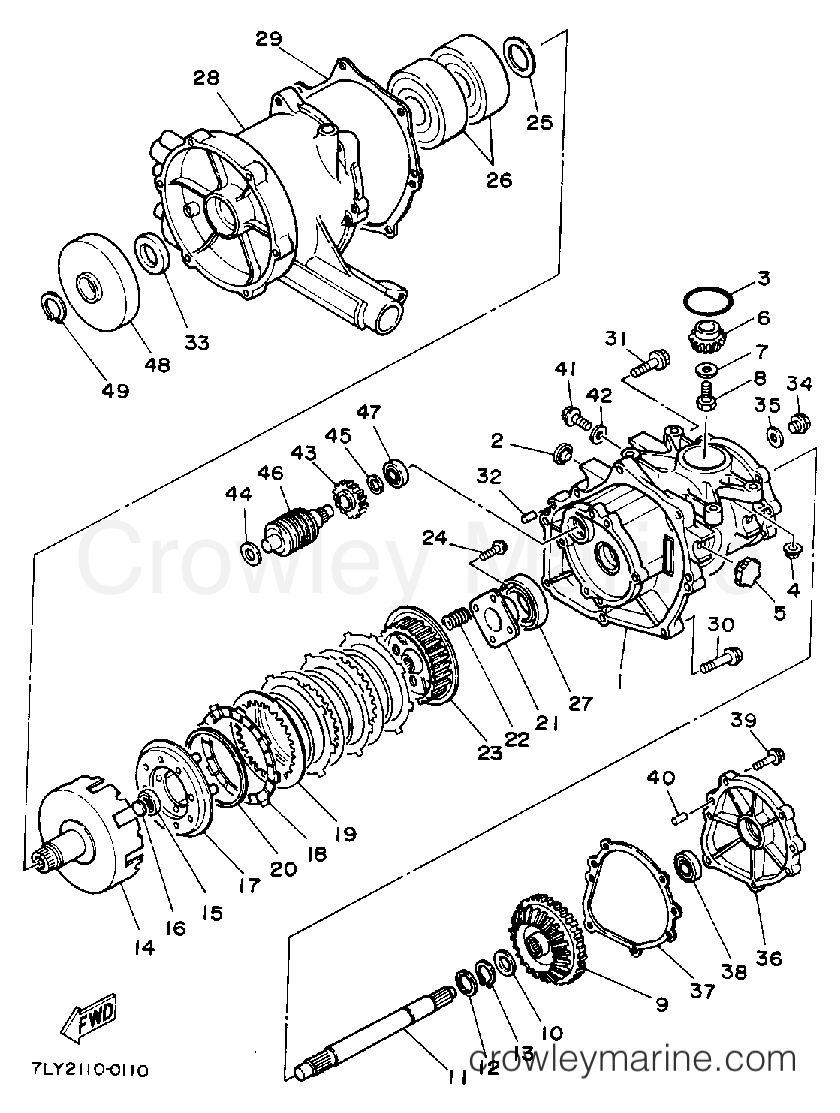

1990 Generator 240 - YS240TB TRANSMISSION 1 diagram

1
Yamaha Motors
TRANS CASE 17LY-46311-01-00
Required: 1
CASE, TRANS 1
$164.04
You save $28.95
$28.89
You save $5.10
$11.89
You save $2.10
In stock
Only 3 remaining
$5.52
You save $0.97
$6.37
You save $1.12

6
Yamaha Motors
Drive Pinion Gear7LY-46121-00-00
Required: 1
GEAR, DRIVE PINION
$62.04
You save $10.95

7
Yamaha Motors
Plate Washer90201-08326-00
Required: 1
WASHER, PLATE
$8.07
You save $1.42

8
Yamaha Motors
Bolt97013-08020-00
Required: 1
BOLT, HEXAGON
Supersedes: 97313-08020-00
$1.53
You save $0.27
$97.74
You save $17.25

10
Yamaha Motors
Plate Washer90201-177G4-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57

11
Yamaha Motors
Obsolete Yamaha Part7LY-46172-02-00
Required: 1
SHAFT, DRIVE
Supersedes: 7LY-46172-01-00
$90.94
You save $16.05
$1.50
You save $0.27
$8.07
You save $1.42

14
Yamaha Motors
Clutch Housing7LY-16311-00-00
Required: 1
HOUSING, CLUTCH
$72.24
You save $12.75
$39.09
You save $6.90
$8.07
You save $1.42
$31.47
You save $5.55

18
Yamaha Motors
Obsolete Yamaha Part4EU-16321-00-00
Required: 4
PLATE, FRICTION
Supersedes: 131-16321-00-00
$24.64
You save $4.35

19
Yamaha Motors
"PLATE, CLUTCH 1"257-16324-10-00
Required: 3
PLATE, CLUTCH 1
Supersedes: 257-16324-00-00
$14.87
You save $2.62
$11.04
You save $1.95

21
Yamaha Motors
Pressure Plate7LY-16351-00-00
Required: 1
PLATE, PRESSURE 1
$52.35
You save $9.24

22
Yamaha Motors
Compression Spring90501-227E0-00
Required: 4
SPRING, COMPRESSION
$8.92
You save $1.57

23
Yamaha Motors
Press plate boss7LY-16355-00-00
Required: 1
BOSS, PRESS PLATE
$14.02
You save $2.47

24
Yamaha Motors
Screw With Washer90159-05011-00
Required: 4
SCREW, WITH WASHER
$3.23
You save $0.57

25
Yamaha Motors
Plate Washer90201-32673-00
Required: 1
WASHER, PLATE
$4.12
You save $0.73
In stock
Only 1 remaining
$44.19
You save $7.80
$24.64
You save $4.35

28
Yamaha Motors
TRANSMISSION COVER7LY-46313-01-00
Required: 1
COVER, TRANSMISSION
$181.89
You save $32.10
$8.07
You save $1.42

30
Yamaha Motors
Flange Bolt95814-08040-00
Required: 6
BOLT, WASHER BASED
Supersedes: 90105-08091-00
$4.67
You save $0.82

31
Yamaha Motors
Flange Bolt95817-08035-00
Required: 2
BOLT, FLANGE (95821-08035-00)
Supersedes: 95811-08035-00
In stock
Only 1 remaining
$8.92
You save $1.57
$1.78
You save $0.32

33
Yamaha Motors
Oil Seal93102-30801-00
Required: 1
OIL SEAL
Supersedes: 93102-30195-00
$14.02
You save $2.47
34
Yamaha Motors
Straight Screw Plug90340-12097-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
Only 4 remaining
$2.85
You save $0.50
$6.37
You save $1.12

36
Yamaha Motors
TRANSMISSION COVER7LY-46314-00-00
Required: 1
COVER, TRANSMISSION
$52.69
You save $9.30

37
Yamaha Motors
Obsolete Yamaha Part7LY-4631E-10-00
Required: 1
GASKET, COVER
Supersedes: 7LY-4631E-00-00
$4.67
You save $0.82
$39.09
You save $6.90

39
Yamaha Motors
Flange Bolt95812-06025-00
Required: 6
BOLT, FLANGE
Supersedes: 95811-06025-00
$0.64
You save $0.11
$1.78
You save $0.32
41
Yamaha Motors
Flange Bolt95817-08012-00
Required: 1
BOLT, FLANGE (95801-08012-00)
Supersedes: 95811-08012-00
In stock
Only 1 remaining
$4.67
You save $0.82

42
Yamaha Motors
Gasket90201-08087-00
Required: 1
.WASHER, PLATE
$3.36
You save $0.59

43
Yamaha Motors
Counter Gear7LY-46362-00-00
Required: 1
GEAR, COUNTER 2
$21.24
You save $3.75

44
Yamaha Motors
Plate Washer90201-154E9-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57

45
Yamaha Motors
Plate Washer90201-12166-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
$130.04
You save $22.95

47
Yamaha Motors
BEARING93306-00105-00
Required: 1
.BEARING
Supersedes: 93306-00106-00
$28.89
You save $5.10

48
Yamaha Motors
Front Brake Drum7LY-2722A-00-00
Required: 1
DRUM, FRONT BRAKE
$36.54
You save $6.45
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
