All diagrams for this model

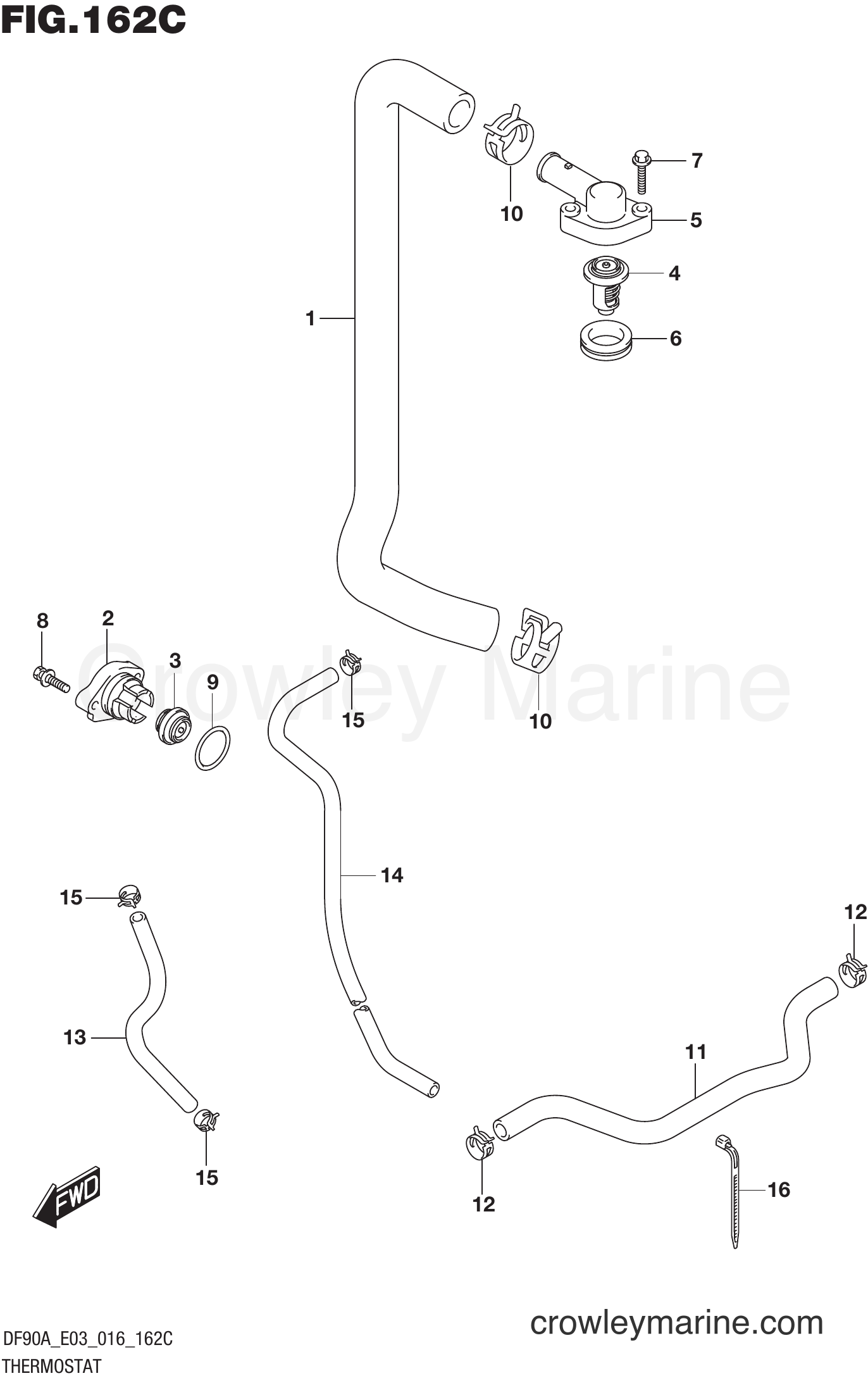

Serial Range Four-Stroke Outboard 90 - DF90A 610001~ THERMOSTAT (DF90A E03) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF90A 610001~ - THERMOSTAT (DF90A E03)
Change View:
HOSE,WATER RETU
1
Suzuki Marine
HOSE,WATER RETU11196-87L00
Required: 1
HOSE, WATER RETURN
Cross Ship
Leaves in 2-5 days
$48.37
$41.11
You save $7.26
More details
COVER,THERMOSTA
5
Suzuki Marine
COVER,THERMOSTA17681-87L00
Required: 1
COVER, THERMOSTAT
Cross Ship
Leaves in 2-5 days
$50.87
$43.24
You save $7.63
More details
Thermostat Seal
6
Suzuki Marine
Thermostat Seal17685-87L01
Required: 1
SEAL, THERMOSTAT COVER
Supersedes: 17685-87L00
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
BOLT
7
Suzuki Marine
BOLT01550-06307
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.28
$2.79
You save $0.49
More details
Clip
10
Suzuki Marine
Clip09401-26408
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$3.97
$3.37
You save $0.60
More details
HOSE,WATER FLUS
11
Suzuki Marine
HOSE,WATER FLUS17915-87L01
Required: 1
HOSE, WATER FLUSH
Supersedes: 17915-87L00
Cross Ship
Leaves in 2-5 days
$18.53
$15.75
You save $2.78
More details
Clip
12
Suzuki Marine
Clip09401-15414
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$2.85
$2.42
You save $0.43
More details
CLAMP,L:95
16
Suzuki Marine
CLAMP,L:9509407-11401
Required: 1
CLAMP (L:95)
Cross Ship
Leaves in 2-5 days
$2.77
$2.35
You save $0.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
