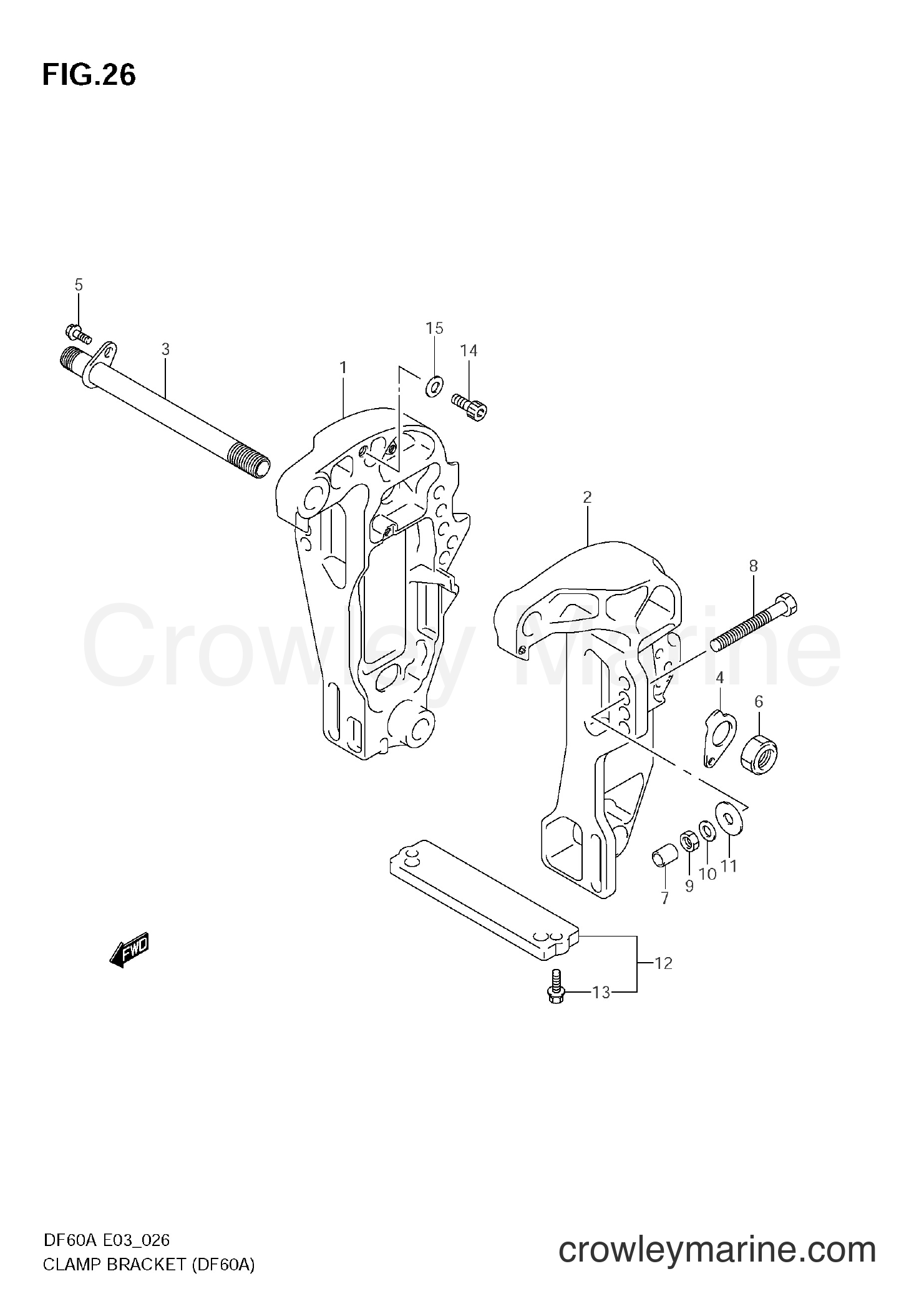

2010 Four-Stroke Outboard 60 - DF60A CLAMP BRACKET (DF60A) diagram
1
Suzuki Marine
Supersedes to 41111-88L11-0EP41111-88L10-0EP
Required: 1
BRACKET, CLAMP STBD
Supersedes: 41111-88L01-0EP
$282.10
You save $49.78
2
Suzuki Marine
BRACKET,CLAMP P41121-88L01-0EP
Required: 1
BRACKET, CLAMP PORT
Supersedes: 41121-88L00-0EP
$380.75
You save $67.19
3
Suzuki Marine
SHAFT,CLAMP BRA41130-88L00
Required: 1
SHAFT, CLAMP BRACKET
$141.36
You save $24.95
4
Suzuki Marine
WASHER,CLAMP BR41135-93J11
Required: 1
WASHER, CLAMP BRACKET SHAFT
$4.59
You save $0.81
5
Suzuki Marine
BOLT,8X2209116-08137
Required: 1
BOLT, CLAMP BRKT SHAFT (8X22)
In stock
Only 1 remaining
$7.57
You save $1.33
6
Suzuki Marine
Nut09159-22006
Required: 1
NUT, CLAMP BRACKET SHAFT
$26.55
You save $4.69
7
Suzuki Marine
CAP TRANSOM BOL41153-94500
Required: 4
CAP, TRANSOM BOLT
$2.80
You save $0.49
8
Suzuki Marine
BOLT,12X100,PIT09100-12093
Required: 4
BOLT (12X100,PITCH:1.25)
$13.00
You save $2.29
8
Suzuki Marine
BOLT,12X115,PIT09100-12091
Required: 1
BOLT (12X115,PITCH:1.25)
$13.42
You save $2.37
$5.13
You save $0.91
10
Suzuki Marine
WASHER,12.5X22X09160-12110
Required: 4
WASHER (12.5X22X3.0)
$3.91
You save $0.69
11
Suzuki Marine
WASHER09160-12044
Required: 4
WASHER (12.5X35X3.2)
$3.60
You save $0.64
12
Suzuki Marine
ANODE SET55320-94900
Required: 1
ZINC, PROTECTION
In stock
5+ in stock
$38.11
You save $6.72
13
Suzuki Marine
BOLT09116-06121
Required: 2
.BOLT (6X25)
In stock
5+ in stock
$2.78
You save $0.49
14
Suzuki Marine
BOLT09106-10065
Required: 2
BOLT, HEXAGON SOCKET HEAD (10X20)
$6.38
You save $1.13
15
Suzuki Marine
WASHER09160-10082
Required: 2
WASHER, PLAIN (10.5X19X2)
$1.67
You save $0.29
16
Required: 1
REFER TO FIG.27 (F- 3) FOR DF40A/50A
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
