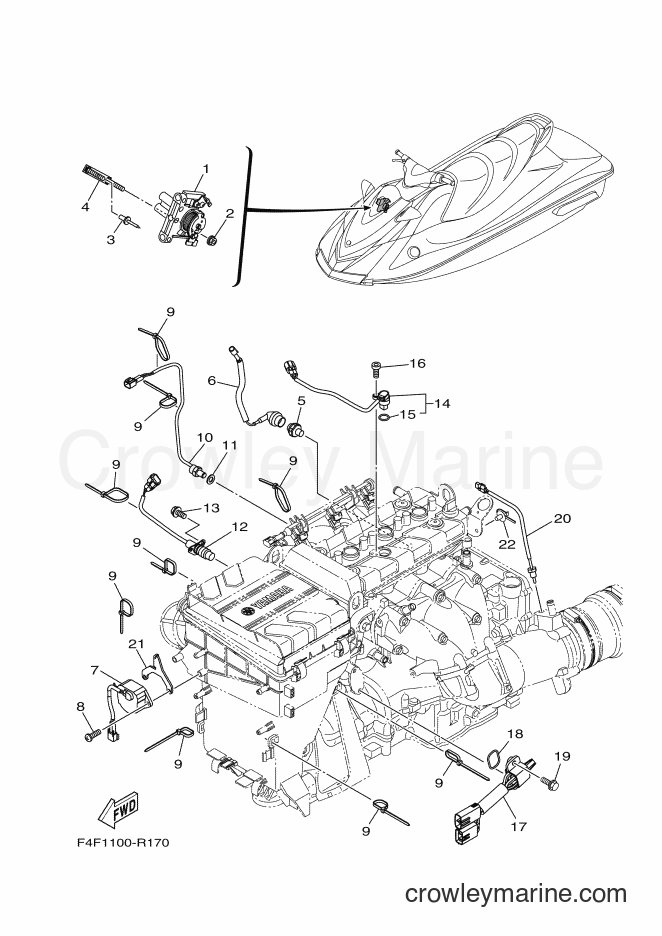

2016 WaveRunner VX1050D - VX1050D (F4F1) [020] ELECTRICAL 2 diagram
![Yamaha Motors VX1050D (F4F1) [020] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/wZ3Ybej4.png)
1
Yamaha Motors
ACCEL. POSITON SENSO6D3-14305-21-00
Required: 1
ACCEL. POSITON SENSOR ASSY
$382.49
You save $67.50
$9.44
You save $2.36
-50%
3
Yamaha Motors
RIVET90267-48938-00
Required: 1
RIVET,BLIND
Supersedes: 90267-489U1-00
In stock
Only 1 remaining
$2.75
You save $2.75
4
Yamaha Motors
Throttle BracketF2N-U7254-00-00
Required: 1
BRACKET, THROTTLE
$14.44
You save $2.55
5
Yamaha Motors
Oil Pressure Switch Assembly68V-82504-00-00
Required: 1
OIL PRESSURE SWITCH ASSY
In stock
Only 1 remaining
$67.92
You save $16.98
6
Yamaha Motors
Lead Wire ASSEMBLY60E-81315-01-00
Required: 1
LEAD WIRE ASSY
Supersedes: 60E-81315-00-00
$35.69
You save $6.30
$158.94
You save $28.05
-50%
8
Yamaha Motors
Tapping Screw97780-60520-00
Required: 2
SCREW, TAPPING
In stock
Only 1 remaining
$2.25
You save $2.25
In stock
Only 5 remaining
$1.48
You save $0.37
10
Yamaha Motors
THERMOSENSOR ASSY61A-85790-01-00
Required: 1
THERMOSENSOR ASSY
Supersedes: 61A-85790-00-00
In stock
Only 3 remaining
$114.95
You save $29.15
11
Yamaha Motors
Plate Washer92990-10600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.40
You save $0.60
12
Yamaha Motors
Thermo Switch Assembly6CR-82560-00-00
Required: 1
THERMO SWITCH ASSY
$82.44
You save $14.55
13
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06520-00
Required: 2
BOLT, WITH WASHER
Supersedes: 97595-06520-00
In stock
Only 2 remaining
$2.44
You save $0.61
14
Yamaha Motors
Cam Position Sensor2S3-85896-02-00
Required: 1
SENSOR, CAM POSITION
Supersedes: 2S3-85896-01-00
$92.64
You save $16.35
-50%
In stock
Only 1 remaining
$3.75
You save $3.75
$6.37
You save $1.12
17
Yamaha Motors
Earth Plate Component6CS-8273J-10-00
Required: 1
EARTH PLATE COMP.
$155.54
You save $27.45
In stock
Only 2 remaining
$7.22
You save $1.27
19
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
20
Yamaha Motors
Thermosensor Assembly6DE-85790-00-00
Required: 1
THERMOSENSOR ASSY
$102.84
You save $18.15
$6.79
You save $1.20
$2.12
You save $0.37
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
