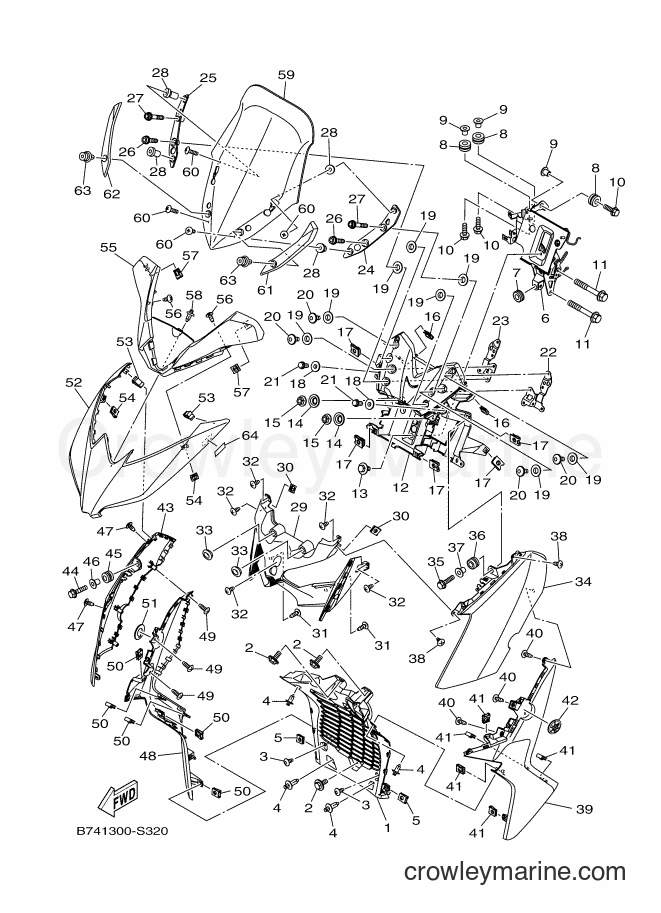

2017 Scooter CZD300-A - CZD300-A (B741) [050] WINDSHIELD diagram

1
Yamaha Motors
AIR INTAKE GRILLEB74-F837N-01-00
Required: 1
GRILL, AIR INTAKE 1
Supersedes: B74-F837N-00-00
$14.02
You save $2.47

2
Yamaha Motors
Bolt with Washer90119-06051-00
Required: 3
BOLT, WITH WASHER
$8.07
You save $1.42

3
Yamaha Motors
Round Tapping Screw90160-05808-00
Required: 2
SCREW, ROUND TAPPING
In stock
Only 1 remaining
$0.47
You save $0.08
In stock
Only 4 remaining
$1.44
You save $0.26

5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$57.79
You save $10.20
In stock
Only 4 remaining
$8.07
You save $1.42
$8.07
You save $1.42
$1.61
You save $0.28

10
Yamaha Motors
Bolt95811-06020-00
Required: 3
BOLT, FLANGE
Supersedes: 95802-06020-00
$1.40
You save $0.25

11
Yamaha Motors
Flange Bolt95817-08055-00
Required: 2
BOLT, FLANGE
Supersedes: 95812-08055-00
$3.58
You save $0.63

12
Yamaha Motors
Battery BoxB74-H212B-00-00
Required: 1
BOX, BATTERY 1
$30.59
You save $5.40
$1.70
You save $0.30
$2.00
You save $0.35
$5.94
You save $1.05

16
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
$0.68
You save $0.12
$8.07
You save $1.42
$2.00
You save $0.35

20
Yamaha Motors
BOLT (44D1)90111-06839-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$0.42
You save $0.08
$3.02
You save $0.53

22
Yamaha Motors
WINDSHIELD PLATEB74-F8306-00-00
Required: 1
PLATE, WINDSHIELD
$11.47
You save $2.02

23
Yamaha Motors
WINDSHIELD PLATEB74-F835P-00-00
Required: 1
PLATE, WINDSHIELD 2
$22.09
You save $3.90
$18.69
You save $3.30

25
Yamaha Motors
Leg Shield StayB74-F8332-00-00
Required: 1
STAY, LEG SHIELD
$18.69
You save $3.30

26
Yamaha Motors
Hexagon Socket Bolt90110-06380-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$8.07
You save $1.42
$8.92
You save $1.57
In stock
Only 2 remaining
$5.52
You save $0.97

29
Yamaha Motors
FRONT 2 COVERB74-F286F-00-00
Required: 1
COVER, FRONT 2
$12.32
You save $2.17

30
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15

31
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
$2.21
You save $0.39

32
Yamaha Motors
Truss Screw97707-50012-00
Required: 5
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
$3.95
You save $0.70
34
Required: 1
BODY, COWLING
Price unavailable

35
Yamaha Motors
95811-06025-0095801-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06025-00
$1.40
You save $0.25
$7.22
You save $1.27
$8.07
You save $1.42

38
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
39
Required: 1
BODY, FRONT UNDER 1
Price unavailable

40
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
$2.21
You save $0.39

41
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
42
Required: 1
EMBLEM
Price unavailable
43
Required: 1
BODY, COWLING 2
Price unavailable

44
Yamaha Motors
95811-06025-0095801-06025-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06025-00
$1.40
You save $0.25
$7.22
You save $1.27
$8.07
You save $1.42

47
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69
48
Required: 1
BODY, FRONT UNDER 2
Price unavailable

49
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
$2.21
You save $0.39

50
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
51
Required: 1
EMBLEM
Price unavailable
$94.34
You save $16.65
$0.60
You save $0.10

54
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15

55
Yamaha Motors
Battery CoverB74-H2129-00-00
Required: 1
COVER, BATTERY
$14.02
You save $2.47

56
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
$3.94
You save $0.69

57
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
In stock
Only 4 remaining
$1.44
You save $0.26
$157.24
You save $27.75

60
Yamaha Motors
PLASTIC SCREW90150-05024-00
Required: 4
SCREW, ROUND HEAD
$2.85
You save $0.50
$8.07
You save $1.42
$8.07
You save $1.42
$4.67
You save $0.82
$3.74
You save $0.66
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
