All diagrams for this model

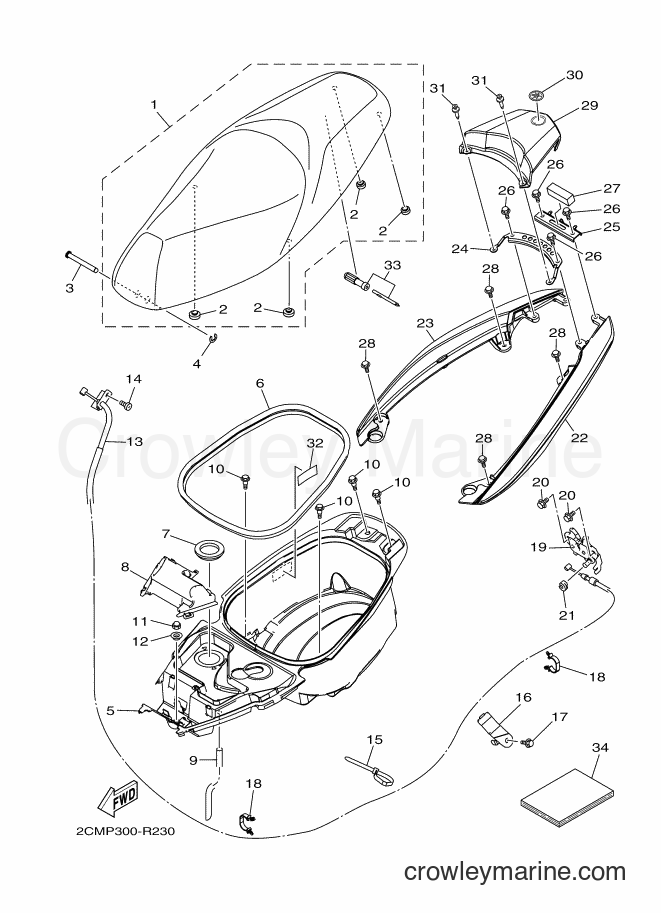

2016 Scooter MW125A - MW125A (2CMP) [050] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MW125A (2CMP) [050] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 4
. PAD, SEAT
Price unavailable
3
Required: 1
PIN 1
Price unavailable
99080-07600-00
4
Yamaha Motors
99080-07600-0099002-07600-00
Required: 1
CIRCLIP(E)
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
5
Required: 1
BOX 1
Price unavailable
6
Required: 1
SEAL
Price unavailable
7
Required: 1
SEAL
Price unavailable
8
Required: 1
BOX 2
Price unavailable
9
Required: 1
TUBE, FLEXIBLE
Price unavailable
BOLT
10
Yamaha Motors
BOLT90109-06887-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
95303-06800-00
11
Yamaha Motors
95303-06800-0095301-06800-00
Required: 1
NUT, CROWN
Supersedes: 95302-06800-00
Cross Ship
Leaves in 2-5 days
$3.25
$2.76
You save $0.49
More details
12
Required: 1
COLLAR
Price unavailable
13
Required: 1
CABLE, SEAT LOCK
Price unavailable
15
Required: 1
CLAMP
Price unavailable
16
Required: 1
BRACKET 3
Price unavailable
Flange Bolt
17
Yamaha Motors
Flange Bolt95022-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Clamp
18
Yamaha Motors
Clamp90464-07805-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
19
Required: 1
SEAT LOCK ASSY
Price unavailable
Flange Bolt
20
Yamaha Motors
Flange Bolt95022-06010-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
21
Required: 1
STOPPER
Price unavailable
22
Required: 1
ASSIST, GRIP (0903,SMX)
Price unavailable
23
Required: 1
ASSIST,GRIP 2 (0903,SMX)
Price unavailable
24
Required: 1
BRACKET, SEAT LEVER 1
Price unavailable
25
Required: 1
BRACKET, SEAT LEVER 2
Price unavailable
Flange Bolt
26
Yamaha Motors
Flange Bolt95811-08016-00
Required: 4
BOLT, FLANGE
Supersedes: 95812-08016-00
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
27
Required: 1
DAMPER, PLATE
Price unavailable
28
Required: 4
BOLT, WITH WASHER
Price unavailable
29
Required: 1
COVER, TAIL (0903,SMX)
Price unavailable
30
Required: 1
EMBLEM (25 MM)
Price unavailable
RIVET
31
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
32
Required: 1
LABEL, TIRE
Price unavailable
33
Required: 1
TOOL KIT
Price unavailable
34
Required: 1
MANUAL,OWNER'S
Price unavailable
34
Required: 1
MANUAL,OWNER'S
Price unavailable
34
Required: 1
MANUAL,OWNER'S
Price unavailable
34
Required: 1
MANUAL,OWNER'S
Price unavailable
34
Required: 1
MANUAL,OWNER'S
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
