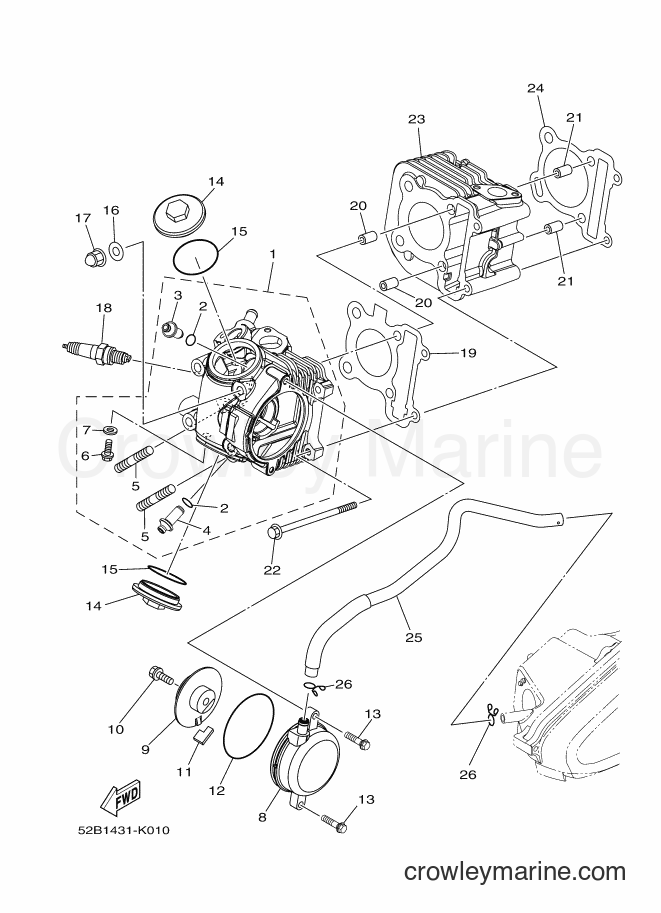

2012 Scooter XC115S - XC115S (52B4) [010] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XC115S (52B4) [010] - CYLINDER
Change View:
1
Required: 1
CYLINDER HEAD ASSY
Price unavailable
2
Required: 2
. O-RING
Price unavailable
3
Required: 1
. GUIDE, VALVE 1
Price unavailable
4
Required: 1
. GUIDE, VALVE 2
Price unavailable
Bolt Stud (95627-08618-00)
5
Yamaha Motors
Bolt Stud (95627-08618-00)95617-08618-00
Required: 2
. BOLT, STUD
Supersedes: 95612-08618-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
8
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
9
Required: 1
PLATE, BREATHER
Price unavailable
10
Required: 1
BOLT, BREATHER
Price unavailable
11
Required: 1
SEAL, LABYRINTH
Price unavailable
O-Ring
12
Yamaha Motors
O-Ring93210-71462-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Flange Bolt
13
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
14
Required: 2
COVER, CYLINDER HEAD SIDE 2
Price unavailable
Plate Washer
16
Yamaha Motors
Plate Washer90201-080L7-00
Required: 4
WASHER, PLATE
Supersedes: 90201-08609-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
17
Required: 4
NUT, CROWN
Price unavailable
18
Required: 1
PLUG, SPARK (NGK CR6HSA)
Price unavailable
19
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
Flange Bolt
22
Yamaha Motors
Flange Bolt95022-06100-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
23
Required: 1
CYLINDER 1
Price unavailable
24
Required: 1
GASKET, CYLINDER
Price unavailable
25
Required: 1
HOSE
Price unavailable
Clip
26
Yamaha Motors
Clip90467-13M13-00
Required: 2
CLIP
Supersedes: 90467-13042-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
