All diagrams for this model

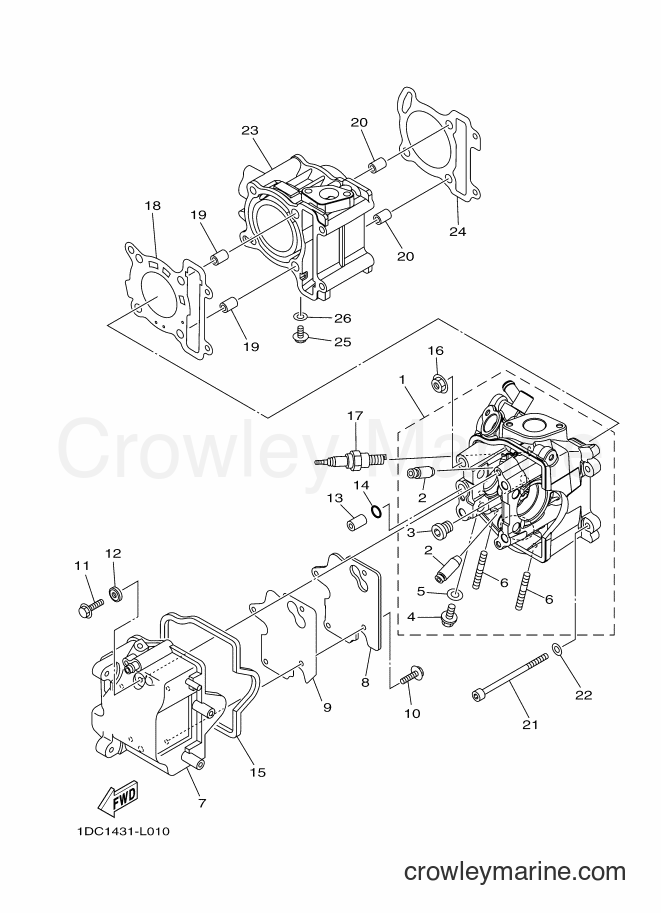

2012 Scooter AT125F - AT125F (1DC2) [010] CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125F (1DC2) [010] - CYLINDER HEAD
Change View:
1
Required: 1
CYLINDER, HEAD ASSY 1
Price unavailable
2
Required: 2
. GUIDE, VALVE 1
Price unavailable
Straight Screw Plug
3
Yamaha Motors
Straight Screw Plug90340-12813-00
Required: 1
. PLUG, STRAIGHT SCREW
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Bolt Stud (95627-08618-00)
6
Yamaha Motors
Bolt Stud (95627-08618-00)95617-08618-00
Required: 2
. BOLT, STUD
Supersedes: 95612-08618-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
7
Required: 1
COVER, CYLINDER HEAD 1
Price unavailable
8
Required: 1
PLATE, BREATHER
Price unavailable
9
Required: 1
GASKET, BREATHER COVER
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06014-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.40
$2.89
You save $0.51
More details
Flange Bolt
11
Yamaha Motors
Flange Bolt95812-06035-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
12
Required: 3
WASHER, SEALING
Price unavailable
13
Required: 1
PIN, DOWEL
Price unavailable
14
Required: 1
O-RING
Price unavailable
15
Required: 1
GASKET, HEAD COVER 1
Price unavailable
Nut
16
Yamaha Motors
Nut90179-08518-00
Required: 4
NUT
Cross Ship
Leaves in 2-5 days
$1.65
$1.40
You save $0.25
More details
17
Required: 1
PLUG, SPARK (NGK CR7E)
Price unavailable
18
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
19
Required: 2
PIN, DOWEL
Price unavailable
20
Required: 2
PIN, DOWEL
Price unavailable
BOLT
21
Yamaha Motors
BOLT91312-06095-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$4.70
$4.00
You save $0.71
More details
Plain Washer
22
Yamaha Motors
Plain Washer90201-06034-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
CYLINDER 1
Price unavailable
24
Required: 1
GASKET, CYLINDER
Price unavailable
Flange Bolt
25
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
