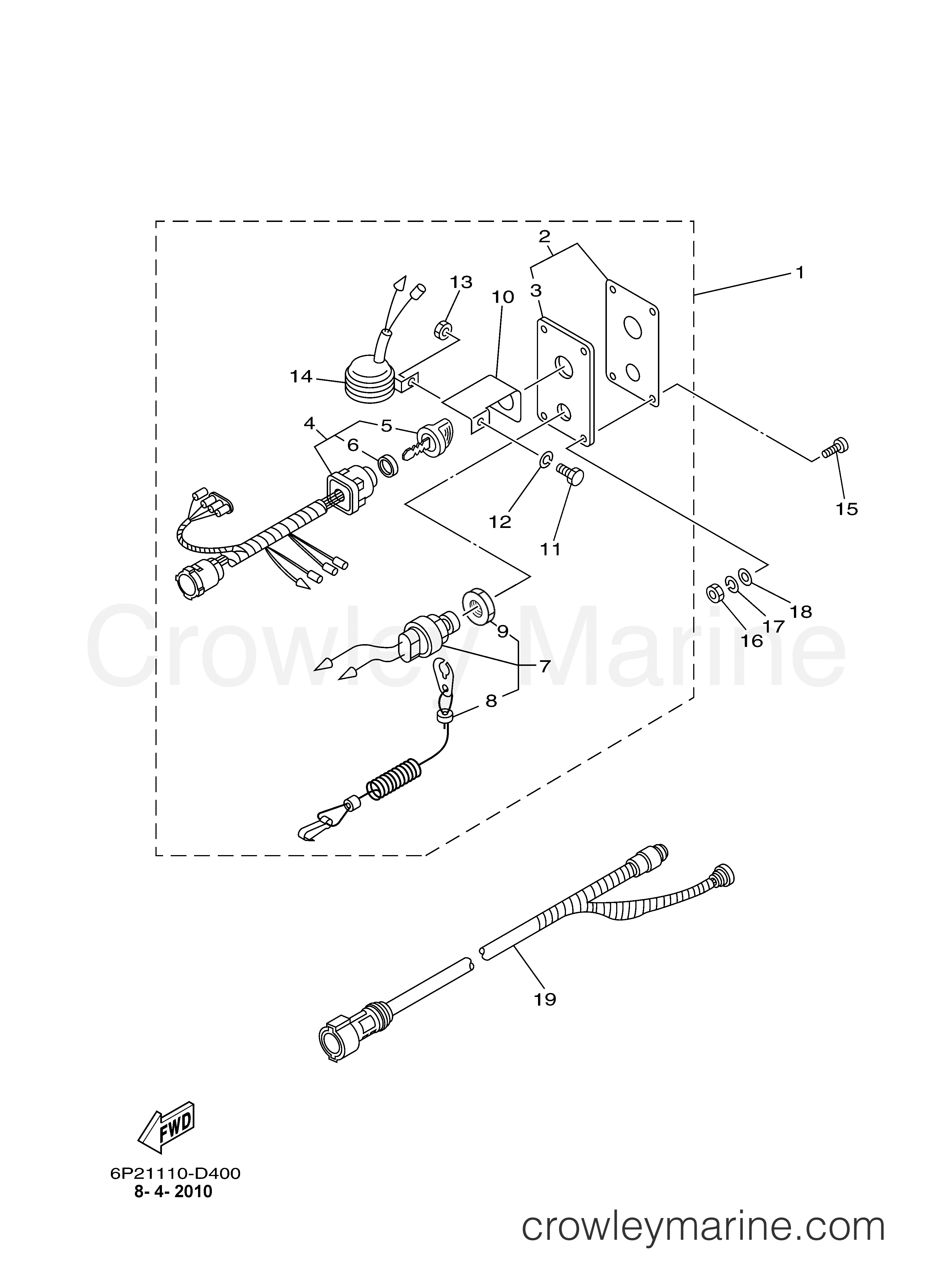

Various Years Rigging Rigging - Rigging 2005 ELECTRICAL SWITCH PANEL SINGLE diagram
1
Yamaha Motors
Panel Switch Assembly704-82570-08-00
Required: 1
PANEL SWITCH ASSY
$181.90
You save $32.10
2
Yamaha Motors
Switch Panel704-82571-02-00
Required: 1
..PANEL, SWITCH
$61.71
You save $10.89
$23.93
You save $4.22
4
Yamaha Motors
Main Switch Assembly TE, TP704-82510-0B-00
Required: 1
..MAIN SWITCH ASSY
Supersedes: 704-82510-07-00
$181.39
You save $32.01
5
Yamaha Motors
Key Cap703-82577-00-00
Required: 1
....CAP, KEY
In stock
Only 1 remaining
$7.52
You save $1.33
In stock
5+ in stock
$4.72
You save $0.83
7
Yamaha Motors
Engine Stop Switch Assembly688-82575-02-00
Required: 1
..ENGINE STOP SWITCH ASSY
Supersedes: 688-82575-01-00
In stock
5+ in stock
$31.92
You save $5.63
8
Yamaha Motors
Stop Switch Lanyard682-82556-00-00
Required: 1
..LANYARD, STOP SWITCH
In stock
5+ in stock
$6.97
You save $1.23
$6.54
You save $1.16
10
Yamaha Motors
Cord Clamp Stator Assembly64D-82581-00-00
Required: 1
..STAY, CORD CLAMP
$21.25
You save $3.75
11
Yamaha Motors
BOLT97080-05012-00
Required: 1
..BOLT
Supersedes: 97303-05012-00
$0.76
You save $0.14
12
Yamaha Motors
Spring Washer92990-05100-00
Required: 1
..WASHER, SPRING
Supersedes: 92903-05100-00
In stock
Only 5 remaining
$0.30
You save $0.05
In stock
5+ in stock
$4.68
You save $0.83
14
Yamaha Motors
Buzzer688-83383-12-00
Required: 1
..BUZZER
Supersedes: 688-83383-11-00
In stock
Only 1 remaining
$53.42
You save $9.43
In stock
Only 1 remaining
$2.72
You save $0.48
In stock
Only 5 remaining
$8.07
You save $1.42
17
Yamaha Motors
Spring Washer92990-05100-00
Required: 4
.WASHER, SPRING
In stock
Only 5 remaining
$0.30
You save $0.05
18
Yamaha Motors
Plate Washer92990-05600-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12
19
Yamaha Motors
Obsolete Yamaha Part688-8258A-60-00
Required: 1
EXTENSION, WIRE HARNESS (6M)
Supersedes: 6X3-8258A-10-00
In stock
Only 1 remaining
$133.45
You save $23.55
19
Yamaha Motors
(5M) Wire Harness Extension688-8258A-50-00
Required: 1
EXTENSION, WIRE HARNESS (5M)
Supersedes: 6X3-8258A-00-00
$119.85
You save $21.15
19
Yamaha Motors
EXTENSION, WIRE HA61B-8258A-02-00
Required: 1
EXTENSION, WIRE HARNESS (9.5M)
Supersedes: 61B-8258A-01-00
$192.10
You save $33.90
19
Yamaha Motors
EXTENSION, WIRE HA6K1-8258A-41-00
Required: 1
EXTENSION, WIRE HARNESS (8M)
Supersedes: 6K1-8258A-40-00
$150.45
You save $26.55
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
