All diagrams for this model

2014 Outboard 250hp - F250XCA CONTROL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

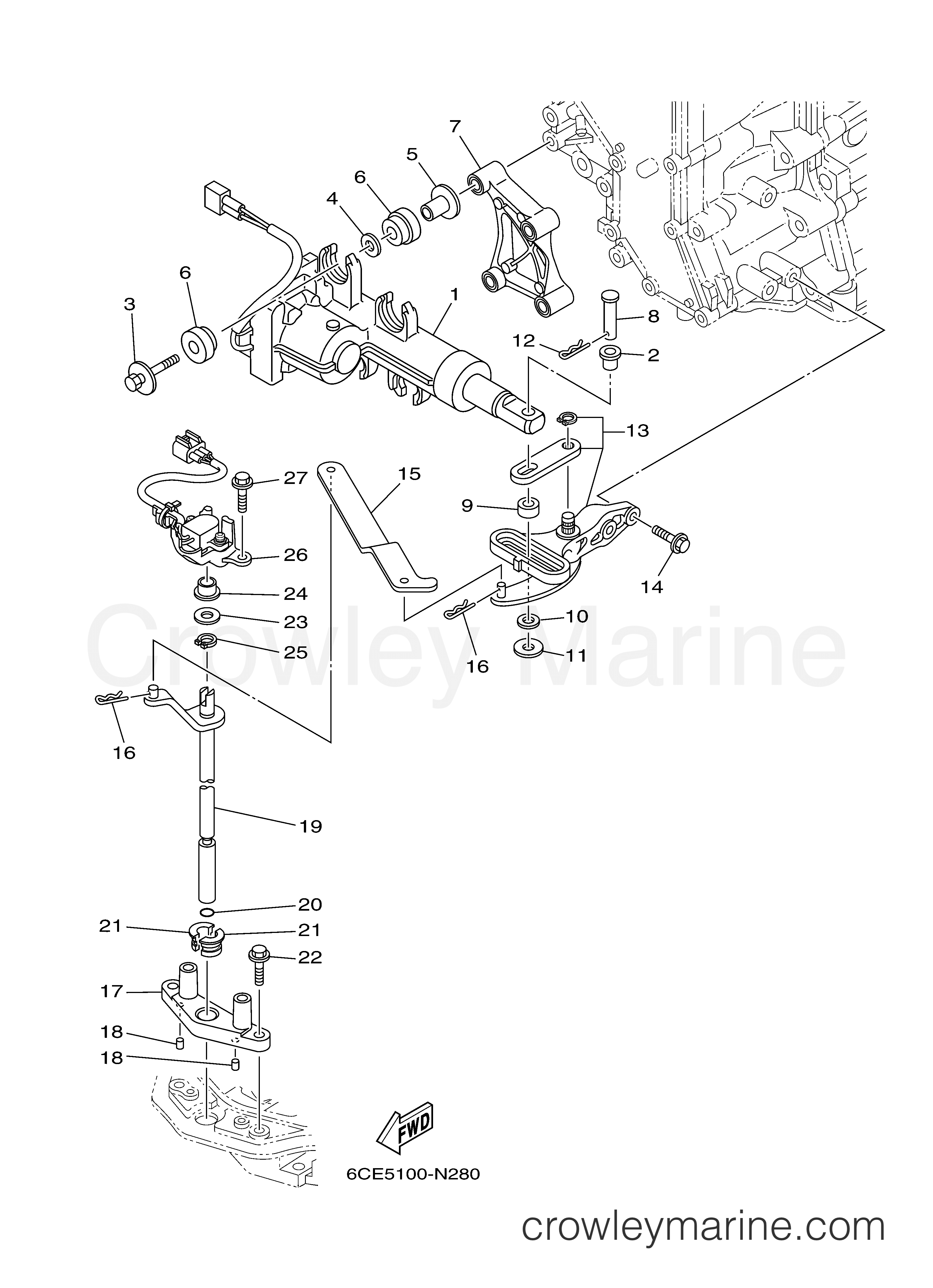

Yamaha Motors F250XCA - CONTROL
Change View:
ACTUATOR UNIT
1
Yamaha Motors
ACTUATOR UNIT6DV-4820A-01-00
Required: 1
ACTUATOR UNIT
Supersedes: 6DV-4820A-00-00
Cross Ship
Leaves in 2-5 days
$2508.85
$2132.52
You save $376.33
More details
Bolt with Washer
3
Yamaha Motors
Bolt with Washer90119-08168-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
Plate Washer
4
Yamaha Motors
Plate Washer90201-12064-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
Collar
5
Yamaha Motors
Collar90387-08104-00
Required: 4
COLLAR
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Grommet
6
Yamaha Motors
Grommet6CE-85564-00-00
Required: 8
GROMMET
Cross Ship
Leaves in 2-5 days
$4.30
$3.65
You save $0.65
More details
7
Required: 1
JOINT
Price unavailable
Bracket
17
Yamaha Motors
Bracket6CE-44118-A0-00
Required: 1
BRACKET
Supersedes: 6CE-44118-00-94
Cross Ship
Leaves in 2-5 days
$44.65
$37.95
You save $6.70
More details
Dowel Pin
18
Yamaha Motors
Dowel Pin93604-07M13-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$6.40
$5.44
You save $0.96
More details
19
Required: 1
HANDLE GEAR SHIFT ASSY
Price unavailable
Bushing
21
Yamaha Motors
Bushing90386-11001-00
Required: 2
BUSH
Cross Ship
Leaves in 2-5 days
$6.60
$5.61
You save $0.99
More details
DEEP FLANGE BOLT
22
Yamaha Motors
DEEP FLANGE BOLT95D75-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95875-06025-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details
Plate Washer
23
Yamaha Motors
Plate Washer90201-11008-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$12.15
$10.33
You save $1.82
More details
Bushing
24
Yamaha Motors
Bushing90386-10001-00
Required: 1
BUSH
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
Sensor Assembly
26
Yamaha Motors
Sensor Assembly6CE-68303-00-00
Required: 1
SENSOR ASSY
Cross Ship
Leaves in 2-5 days
$370.35
$314.80
You save $55.55
More details
DEEP FLANGE BOLT
27
Yamaha Motors
DEEP FLANGE BOLT95D75-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95875-06025-00
Cross Ship
Leaves in 2-5 days
$3.45
$2.93
You save $0.52
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
