All diagrams for this model

2013 Outboard 6hp - F6LMHA FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

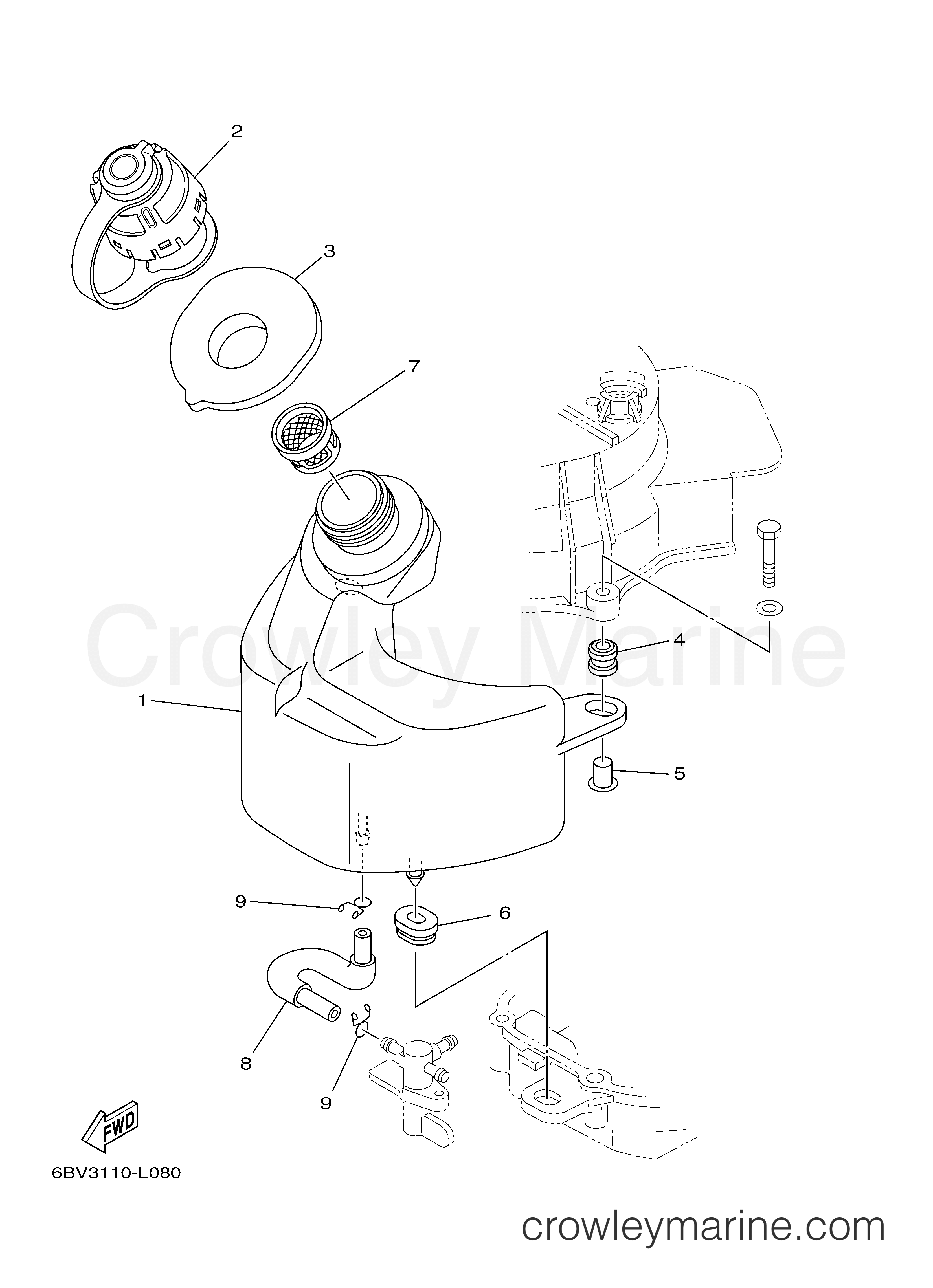

Yamaha Motors F6LMHA - FUEL 1
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.6EE-24110-12-00
Required: 1
TANK, FUEL
Supersedes: 6BX-F4111-10-00
Cross Ship
Leaves in 2-5 days
$309.35
$262.95
You save $46.40
More details
Cap Assembly
2
Yamaha Motors
Cap Assembly6BX-24610-10-00
Required: 1
CAP ASSY
Cross Ship
Leaves in 2-5 days
$160.00
$136.00
You save $24.00
More details
Cap Gasket
3
Yamaha Motors
Cap Gasket6BX-24641-00-00
Required: 1
GASKET, CAP 1
Cross Ship
Leaves in 2-5 days
$53.55
$45.52
You save $8.03
More details
Grommet
6
Yamaha Motors
Grommet90480-01559-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Strainer
7
Yamaha Motors
Strainer6BX-24167-00-00
Required: 1
STRAINER
Cross Ship
Leaves in 2-5 days
$18.90
$16.06
You save $2.84
More details
Fuel Pipe 1
8
Yamaha Motors
Fuel Pipe 16EE-F4311-10-00
Required: 1
PIPE, FUEL 1
Supersedes: 6BX-F4311-10-00
Cross Ship
Leaves in 2-5 days
$33.90
$28.82
You save $5.09
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
