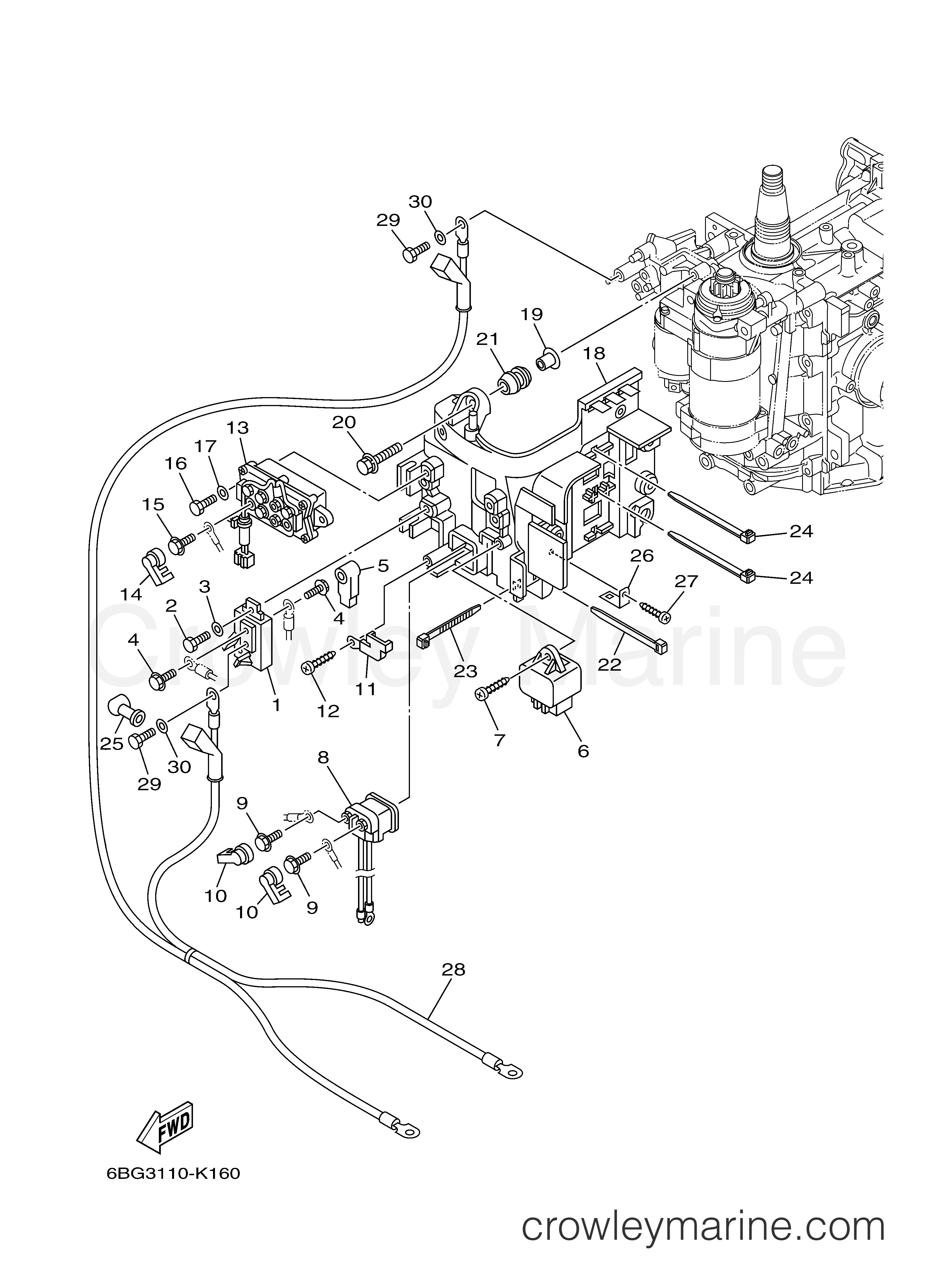

2013 Outboard 30hp - F30LEHA ELECTRICAL 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F30LEHA - ELECTRICAL 3
Change View:
Terminal
1
Yamaha Motors
Terminal6BG-81925-00-00
Required: 1
TERMINAL
Cross Ship
Leaves in 2-5 days
$66.05
$56.14
You save $9.91
More details
BOLT, HEXAGON DEEP RECESS
2
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Relay Assembly
6
Yamaha Motors
Relay Assembly60E-81950-00-00
Required: 1
.RELAY ASSY
Cross Ship
Leaves in 2-5 days
$180.49
$153.42
You save $27.07
More details
Terminal Cap
10
Yamaha Motors
Terminal Cap6P2-8183X-00-00
Required: 2
CAP, TERMINAL
Cross Ship
Leaves in 2-5 days
$6.70
$5.70
You save $1.00
More details
Relay Stay
11
Yamaha Motors
Relay Stay68F-81953-00-00
Required: 1
STAY, RELAY
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Bracket
18
Yamaha Motors
Bracket6BG-81948-01-00
Required: 1
BRACKET
Supersedes: 6BG-81948-00-00
Cross Ship
Leaves in 2-5 days
$164.90
$140.16
You save $24.74
More details
Switch Cord Band
22
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
CLAMP
Supersedes: 90465-13M24-00
Cross Ship
Leaves in 2-5 days
$5.00
$4.25
You save $0.75
More details
Neutral Lock Holder
26
Yamaha Motors
Neutral Lock Holder68V-85548-01-00
Required: 1
HOLDER
Supersedes: 68V-85548-00-00
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
BATTERY CABLE (RL45)
28
Yamaha Motors
BATTERY CABLE (RL45)6BG-82105-U2-00
Required: 1
BATTERY CABLE
Supersedes: 6BG-82105-U0-00
Cross Ship
Leaves in 2-5 days
$249.45
$212.03
You save $37.42
More details
BOLT, HEXAGON DEEP RECESS
29
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
