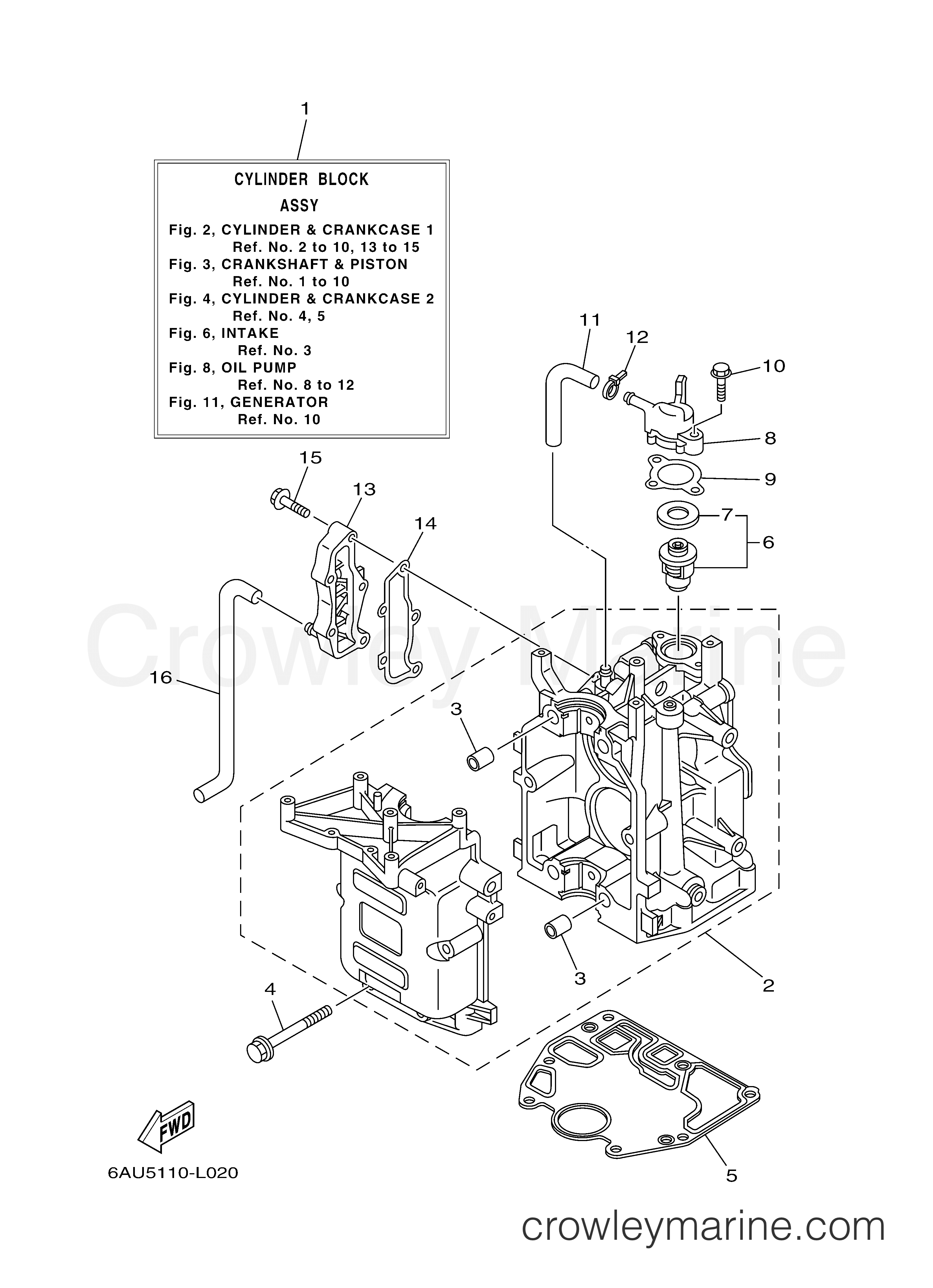

2012 Outboard 9.9hp - F9.9SMHA CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
Cylinder Block Assembly6AU-W009B-00-1S
Required: 1
CYLINDER BLOCK ASSY
$967.77
You save $170.78
$1369.77
You save $241.73
-50%
In stock
Only 2 remaining
$2.45
You save $2.45
4
Yamaha Motors
Bolt with Washer90119-08015-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08M29-00
In stock
5+ in stock
$2.28
You save $0.57
5
Yamaha Motors
Cylinder Gasket68T-11351-00-00
Required: 1
.GASKET, CYLINDER
$20.44
You save $5.11
In stock
5+ in stock
$36.48
You save $9.12
7
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.52
You save $1.13
8
Yamaha Motors
Thermostat Cover68T-12413-00-1S
Required: 1
COVER, THERMOSTAT
$17.85
You save $3.15
9
Yamaha Motors
Cover Gasket6G8-12414-A0-00
Required: 1
.GASKET, COVER
In stock
5+ in stock
$6.64
You save $1.66
10
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$13.30
You save $2.35
12
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.16
You save $0.54
13
Yamaha Motors
Exhaust Outer Cover6AU-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$23.93
You save $4.22
14
Yamaha Motors
Exhaust Outer Cover Gasket68T-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$5.28
You save $1.32
15
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 5
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$13.22
You save $2.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
