All diagrams for this model

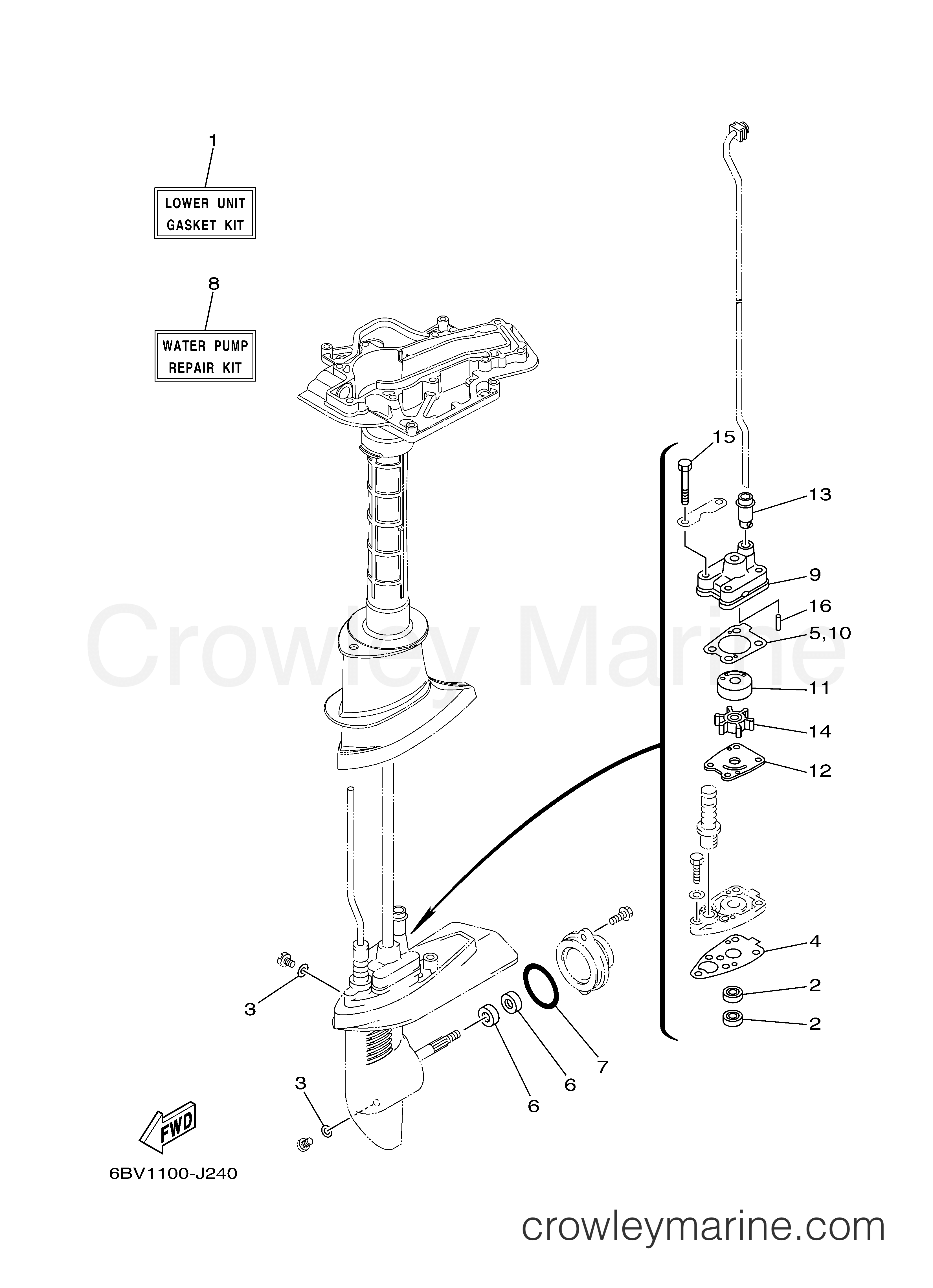

2012 Outboard 4hp - F4LMHA REPAIR KIT 3 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F4LMHA - REPAIR KIT 3
Change View:
LOWER UNIT GASKET
1
Yamaha Motors
LOWER UNIT GASKET6EE-W0001-20-00
Required: 1
LOWER UNIT GASKET KIT
Supersedes: 6BX-WG001-20-00
Cross Ship
Leaves in 2-5 days
$43.30
$36.81
You save $6.49
More details
Water Pump Housing
9
Yamaha Motors
Water Pump Housing6BX-44311-00-00
Required: 1
.HOUSING, WATER PUMP
Cross Ship
Leaves in 2-5 days
$24.50
$19.60
You save $4.90
More details
Cartridge Outer Plate
12
Yamaha Motors
Cartridge Outer Plate6BX-44323-00-00
Required: 1
.OUTER PLATE, CARTRIDGE
Cross Ship
Leaves in 2-5 days
$6.15
$4.92
You save $1.23
More details
Dowel Pin
16
Yamaha Motors
Dowel Pin93604-18080-00
Required: 2
.PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$7.70
$6.16
You save $1.54
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
