All diagrams for this model

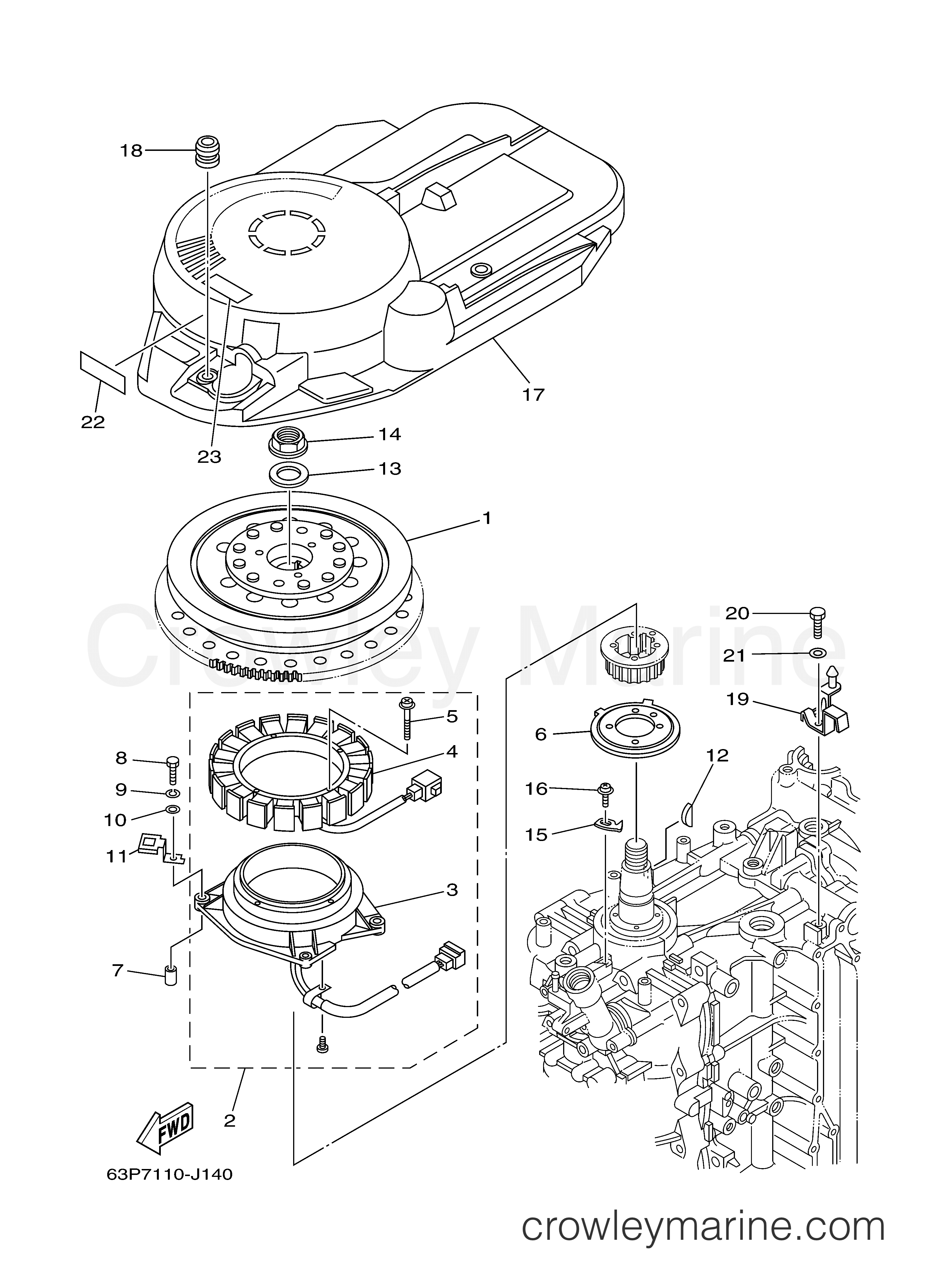

2011 Outboard 150hp - F150TXR GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F150TXR - GENERATOR
Change View:
BASE ASSY
2
Yamaha Motors
BASE ASSY63P-81460-01-00
Required: 1
BASE ASSY
Supersedes: 63P-81460-00-00
Cross Ship
Leaves in 2-5 days
$1018.90
$866.06
You save $152.84
More details
Pulser Coil
3
Yamaha Motors
Pulser Coil63P-85580-00-00
Required: 1
.COIL, PULSER
Cross Ship
Leaves in 2-5 days
$432.20
$367.37
You save $64.83
More details
Stator Assembly
4
Yamaha Motors
Stator Assembly63P-81410-00-00
Required: 1
.STATOR ASSY
Cross Ship
Leaves in 2-5 days
$892.40
$758.54
You save $133.86
More details
Rotor
6
Yamaha Motors
Rotor63P-81673-01-00
Required: 1
ROTOR
Cross Ship
Leaves in 2-5 days
$49.35
$41.95
You save $7.40
More details
Plate
11
Yamaha Motors
Plate63P-81845-00-00
Required: 2
PLATE
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
Plate Washer
13
Yamaha Motors
Plate Washer90201-24014-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$12.70
$10.79
You save $1.90
More details
Nut
14
Yamaha Motors
Nut90179-24002-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$42.00
$35.70
You save $6.30
More details
Timing Plate
15
Yamaha Motors
Timing Plate6P2-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$3.15
$2.68
You save $0.47
More details
COVER, FLYWHEEL
17
Yamaha Motors
COVER, FLYWHEEL63P-81337-01-00
Required: 1
COVER, FLYWHEEL
Supersedes: 63P-81337-00-00
Cross Ship
Leaves in 2-5 days
$102.65
$81.95
You save $20.70
More details
Plate
19
Yamaha Motors
Plate63P-8132G-00-00
Required: 1
PLATE
Cross Ship
Leaves in 2-5 days
$46.55
$39.57
You save $6.98
More details
BOLT, HEXAGON DEEP RECESS
20
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details
SAFETY LABEL
23
Yamaha Motors
SAFETY LABEL6EE-81994-40-00
Required: 1
LABEL, SAFETY
Supersedes: 6AH-81994-40-00
Cross Ship
Leaves in 2-5 days
$17.10
$14.53
You save $2.56
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
