2010 Outboard 90hp - F90TJR ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

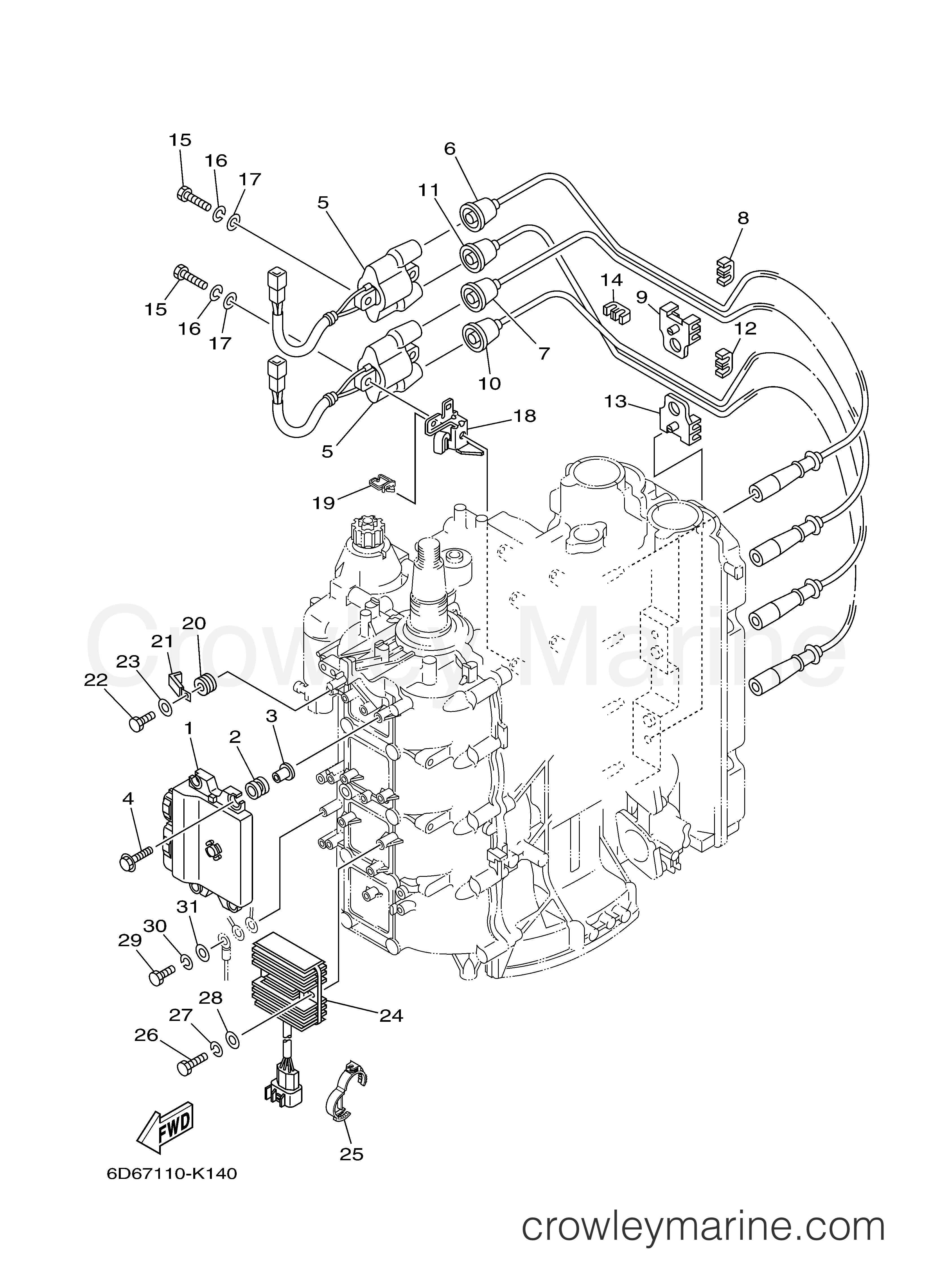

Yamaha Motors F90TJR - ELECTRICAL 1
Change View:
ENGINE CONTROL UNIT ASSEMBLY
1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY6D8-8591A-16-00
Required: 1
ENGINE CONTROL UNIT ASSY
Supersedes: 6D8-8591A-13-00
Cross Ship
Leaves in 2-5 days
$859.90
$730.91
You save $128.99
More details
DAMPER, IGNITION COIL
2
Yamaha Motors
DAMPER, IGNITION COIL68V-82317-01-00
Required: 4
DAMPER, IGNITION COIL
Supersedes: 68V-82317-00-00
Cross Ship
Leaves in 2-5 days
$5.95
$5.06
You save $0.89
More details
High Tension Cord
6
Yamaha Motors
High Tension Cord67F-82341-00-00
Required: 1
CORD, HIGH TENSION 1
Cross Ship
Leaves in 2-5 days
$44.90
$38.17
You save $6.73
More details
High Tension Cord
7
Yamaha Motors
High Tension Cord67F-82342-00-00
Required: 1
CORD, HIGH TENSION 2
Cross Ship
Leaves in 2-5 days
$43.45
$36.93
You save $6.52
More details
Cord Clamp
9
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
High Tension Cord
10
Yamaha Motors
High Tension Cord67F-82343-00-00
Required: 1
CORD, HIGH TENSION 3
Cross Ship
Leaves in 2-5 days
$44.05
$37.44
You save $6.61
More details
High Tension Cord
11
Yamaha Motors
High Tension Cord67F-82344-00-00
Required: 1
CORD, HIGH TENSION 4
Cross Ship
Leaves in 2-5 days
$44.85
$38.12
You save $6.73
More details
Cord Clamp
13
Yamaha Motors
Cord Clamp67F-82362-00-00
Required: 1
CLAMP, CORD 2
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
BOLT
15
Yamaha Motors
BOLT97095-06025-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Plate
18
Yamaha Motors
Plate6D8-82388-01-00
Required: 2
PLATE
Cross Ship
Leaves in 2-5 days
$16.95
$14.41
You save $2.54
More details
Grommet
20
Yamaha Motors
Grommet90480-14329-00
Required: 1
.GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Rectifier & Regulator Assembly
24
Yamaha Motors
Rectifier & Regulator Assembly6D8-81960-10-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$207.35
$176.25
You save $31.10
More details
Clamp
25
Yamaha Motors
Clamp90464-28003-00
Required: 1
CLAMP
Supersedes: 90464-30003-00
Cross Ship
Leaves in 2-5 days
$4.46
$3.79
You save $0.67
More details
BOLT
26
Yamaha Motors
BOLT97095-06025-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
BOLT, HEXAGON DEEP RECESS
29
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
