All diagrams for this model

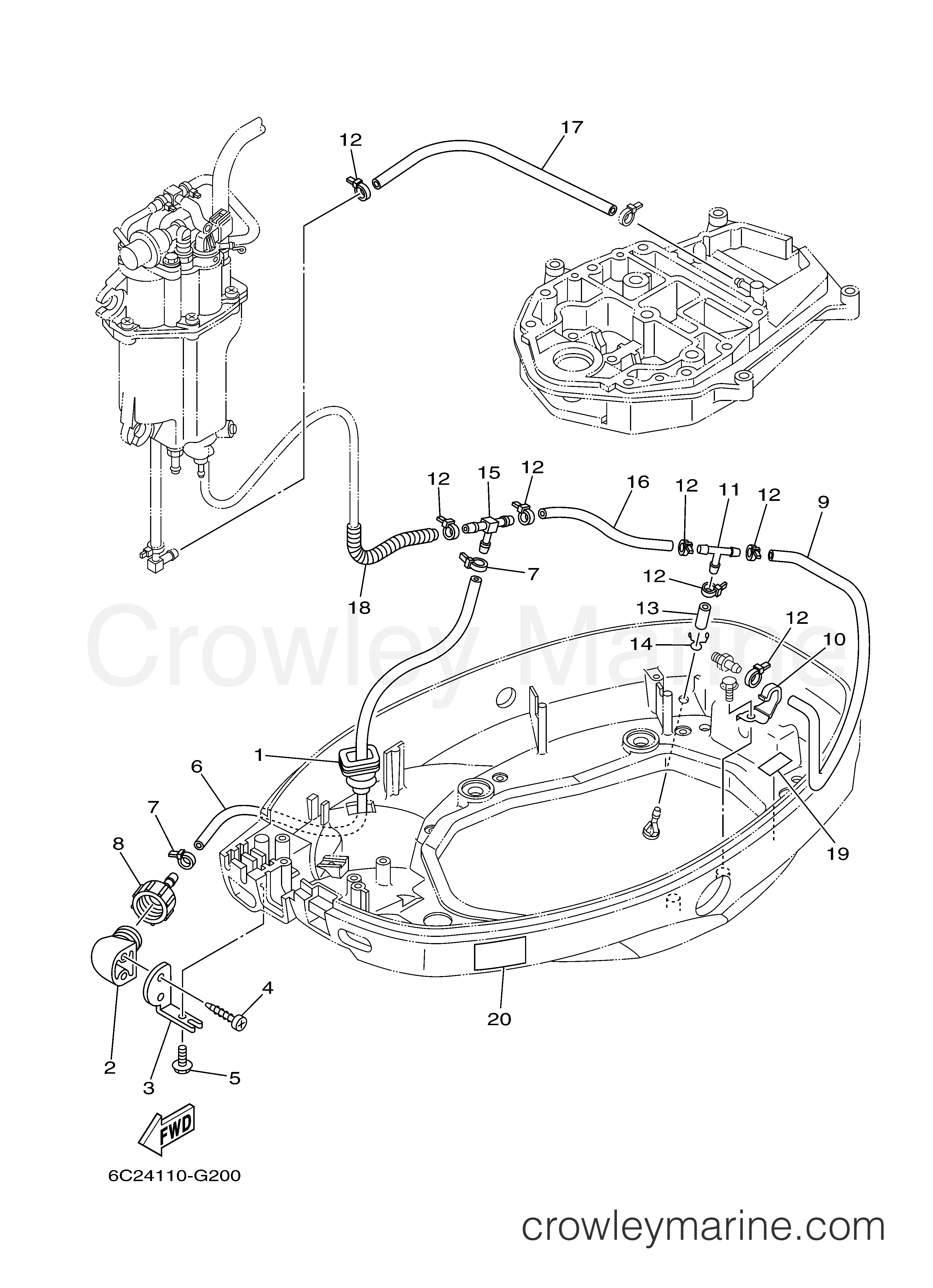

2009 Outboard 50hp - F50TLR BOTTOM COWLING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F50TLR - BOTTOM COWLING 2
Change View:
Pipe
6
Yamaha Motors
Pipe6C5-24312-00-00
Required: 1
PIPE 2
Cross Ship
Leaves in 2-5 days
$18.30
$15.55
You save $2.75
More details
Clamp
10
Yamaha Motors
Clamp90462-08031-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$7.50
$6.38
You save $1.13
More details
Pipe 5
13
Yamaha Motors
Pipe 55RB-24315-00-00
Required: 1
HOSE (L30)
Supersedes: 90445-09220-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Clip
14
Yamaha Motors
Clip90467-08M18-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
Hose (L135)
16
Yamaha Motors
Hose (L135)90445-09091-00
Required: 1
HOSE (L135)
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Tube
18
Yamaha Motors
Tube90447-10006-00
Required: 1
TUBE
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Label
19
Yamaha Motors
Label6C5-82377-00-00
Required: 1
LABEL
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
LABEL, WARNING (GE
20
Yamaha Motors
LABEL, WARNING (GE6EE-42794-41-00
Required: 1
LABEL, WARNING (GENERAL)
Supersedes: 6AH-42794-40-00
Cross Ship
Leaves in 2-5 days
$17.80
$15.13
You save $2.67
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
