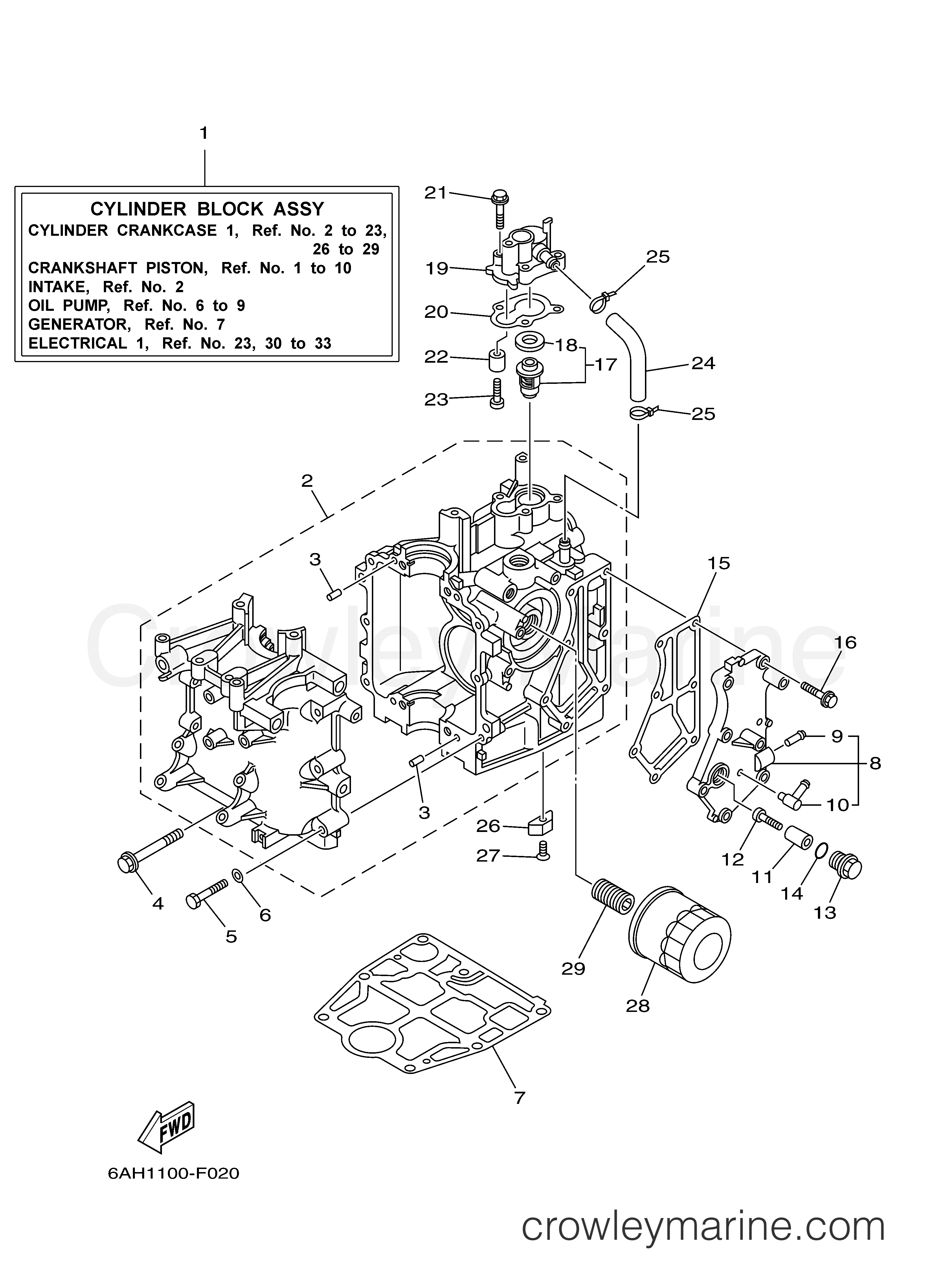

2009 Outboard 15hp - F15CMSH CYLINDER CRANKCASE 1 diagram
1
Yamaha Motors
CYLINDER BLOCK ASSEMBLY6AH-W009B-02-1S
Required: 1
CYLINDER BLOCK ASSY
Supersedes: 6AH-W009B-00-1S
$2241.54
You save $395.57
2
Yamaha Motors
Crankcase Assembly6AH-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 6AH-15100-00-1S
$1504.37
You save $265.48
In stock
5+ in stock
$3.91
You save $0.69
4
Yamaha Motors
Bolt with Washer90119-08093-00
Required: 4
BOLT, WITH WASHER
$4.68
You save $0.83
In stock
5+ in stock
$1.87
You save $0.33
6
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
7
Yamaha Motors
GASKET, CYLINDER6AH-11351-11-00
Required: 1
.GASKET, CYLINDER
Supersedes: 6AH-11351-00-00
$34.38
You save $6.07
8
Yamaha Motors
Exhaust Outer Cover99999-04233-00
Required: 1
OUTER COVER, EXHAUST
Supersedes: 6AH-41113-00-1S
$66.94
You save $11.81
9
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.93
You save $0.87
10
Yamaha Motors
Hose Nipple676-11372-00-00
Required: 1
.NIPPLE, HOSE
In stock
Only 4 remaining
$13.18
You save $2.33
In stock
5+ in stock
$3.06
You save $0.54
12
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 97880-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
13
Yamaha Motors
Blind Plug6G8-11197-A0-00
Required: 1
PLUG, BLIND
Supersedes: 6G8-11197-01-00
$11.56
You save $2.04
In stock
5+ in stock
$4.04
You save $0.71
15
Yamaha Motors
Exhaust Outer Cover Gasket6AH-41114-00-00
Required: 1
.GASKET, EXHAUST OUTER COVER
$17.59
You save $3.11
16
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 7
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
Only 2 remaining
$40.46
You save $7.14
18
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.80
You save $0.85
19
Yamaha Motors
Thermostat Cover6AH-12413-00-1S
Required: 1
COVER, THERMOSTAT
$37.44
You save $6.61
20
Yamaha Motors
Cover Gasket6AH-12414-00-00
Required: 1
.GASKET, COVER
In stock
Only 1 remaining
$4.63
You save $0.82
21
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 3
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
In stock
5+ in stock
$3.06
You save $0.54
23
Yamaha Motors
Pan Head Screw98580-05525-00
Required: 1
.SCREW, PAN HEAD
Supersedes: 97880-05025-00
In stock
Only 5 remaining
$1.70
You save $0.30
$7.95
You save $1.40
25
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
In stock
5+ in stock
$4.68
You save $0.83
27
Yamaha Motors
Flat Head Screw98780-04016-00
Required: 1
SCREW, FLAT HEAD
In stock
5+ in stock
$1.27
You save $0.22
28
Yamaha Motors
ELEMENT ASSY, OIL5GH-13440-90-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 5GH-13440-20-00
In stock
5+ in stock
$14.02
You save $2.47
$14.32
You save $2.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
