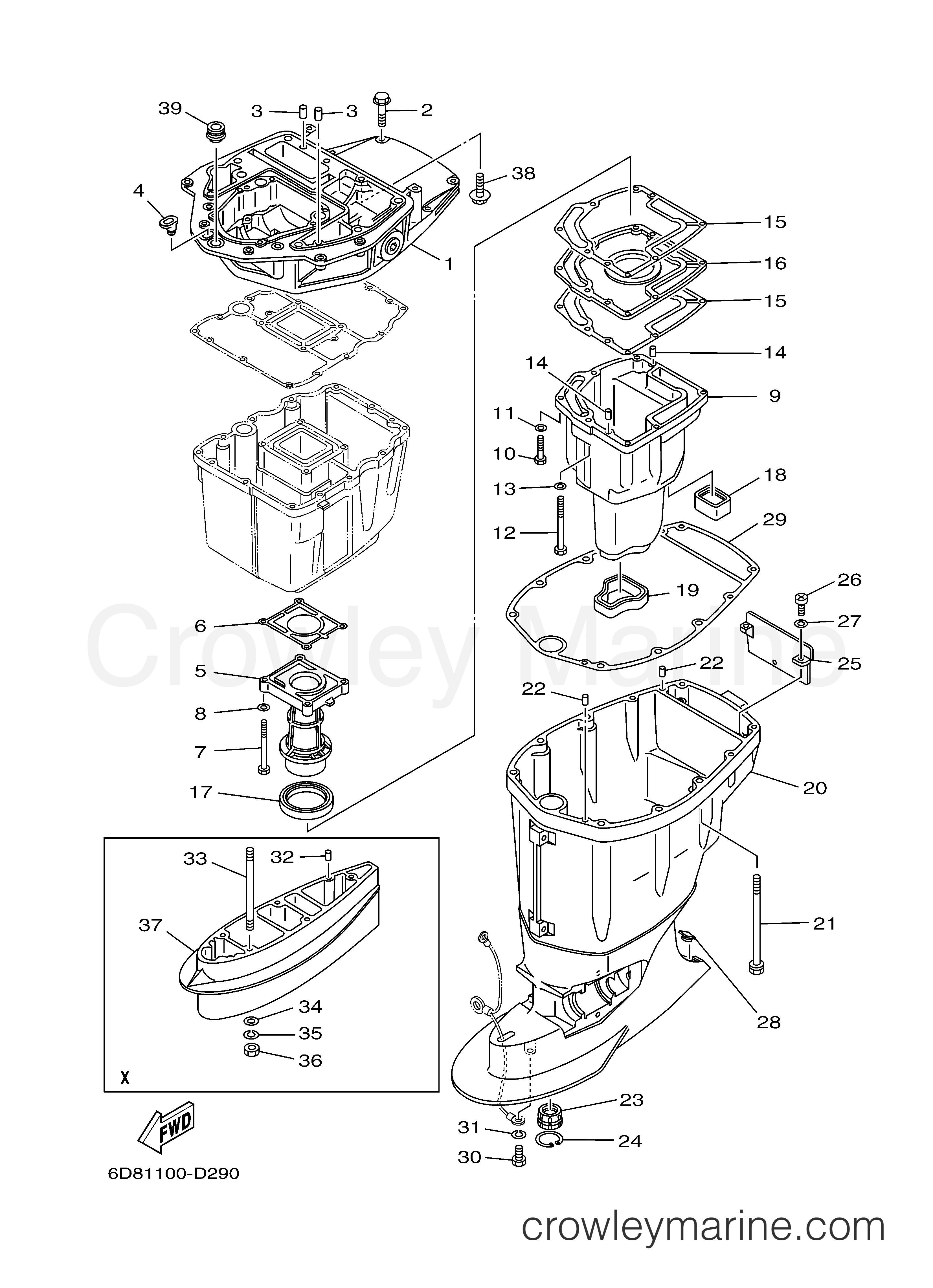

2008 Outboard 90hp - F90TLR UPPER CASING diagram
1
Yamaha Motors
Exhaust Guide6D8-41137-00-CA
Required: 1
GUIDE, EXHAUST
Supersedes: 6D8-41137-00-94
$494.40
You save $87.25
2
Yamaha Motors
BOLT, HEXAGON W/W DE97E75-08540-00
Required: 4
BOLT, WITH WASHER
Supersedes: 97575-08540-00
In stock
Only 5 remaining
$4.55
You save $0.80
In stock
5+ in stock
$2.42
You save $0.43
4
Yamaha Motors
GROMMET6G1-42727-01-00
Required: 1
GROMMET
Supersedes: 6G1-42727-00-00
$10.67
You save $1.88
5
Yamaha Motors
MANIFOLD, EXT. 167F-41131-01-5B
Required: 1
MANIFOLD, EXT. 1
$258.57
You save $45.63
6
Yamaha Motors
Exhaust Manifold Gasket67F-41133-A1-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
$10.12
You save $1.79
7
Yamaha Motors
BOLT97080-06070-00
Required: 4
BOLT
Supersedes: 97075-06070-00
$3.10
You save $0.55
8
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
9
Yamaha Motors
Muffler67F-14711-00-CA
Required: 1
MUFFLER 1
Supersedes: 67F-14711-00-5B
$235.79
You save $41.61
10
Yamaha Motors
Bolt97080-06030-00
Required: 6
BOLT
Supersedes: 97075-06030-00
In stock
5+ in stock
$3.49
You save $0.62
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 6
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
BOLT97080-06050-00
Required: 1
BOLT
Supersedes: 97075-06050-00
$4.72
You save $0.83
13
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$2.17
You save $0.38
15
Yamaha Motors
Exhaust Manifold Gasket67F-41134-A0-00
Required: 2
.GASKET, EXHAUST MANIFOLD
$13.56
You save $2.39
16
Yamaha Motors
Plate67F-45181-00-CA
Required: 1
PLATE
Supersedes: 67F-45181-00-5B
$104.89
You save $18.51
17
Yamaha Motors
Seal Ext67F-41138-00-00
Required: 1
.SEAL, EXT. 1
$13.30
You save $2.35
$6.71
You save $1.19
19
Yamaha Motors
Muffler Gasket67F-45123-00-00
Required: 1
.GASKET, MUFFLER
$19.59
You save $3.46
$512.89
You save $90.51
21
Yamaha Motors
Bolt with Washer90119-10075-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-10M08-00
$16.62
You save $2.93
In stock
5+ in stock
$2.42
You save $0.43
23
Yamaha Motors
Drive Shaft Bushing67F-45318-00-00
Required: 1
BUSHING, DRIVE SHAFT
In stock
Only 1 remaining
$88.87
You save $15.68
In stock
5+ in stock
$9.44
You save $1.67
25
Yamaha Motors
Upper Casing Cover67F-45151-00-00
Required: 1
COVER, UPPER CASING
$12.45
You save $2.20
26
Yamaha Motors
Pan Head Screw98580-06016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 97880-06016-00
In stock
Only 5 remaining
$2.85
You save $0.50
27
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$6.29
You save $1.11
29
Yamaha Motors
Upper Casing Gasket67F-45113-00-00
Required: 1
.GASKET, UPPER CASING
$52.32
You save $9.23
$4.72
You save $0.83
31
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
38
Yamaha Motors
Bolt with Washer90119-08189-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M58-00
$4.68
You save $0.83
39
Yamaha Motors
GROMMET, WATER TUBE (UPPER)67F-42724-01-00
Required: 1
GROMMET
Supersedes: 67F-42724-00-00
$5.99
You save $1.06
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
