All diagrams for this model

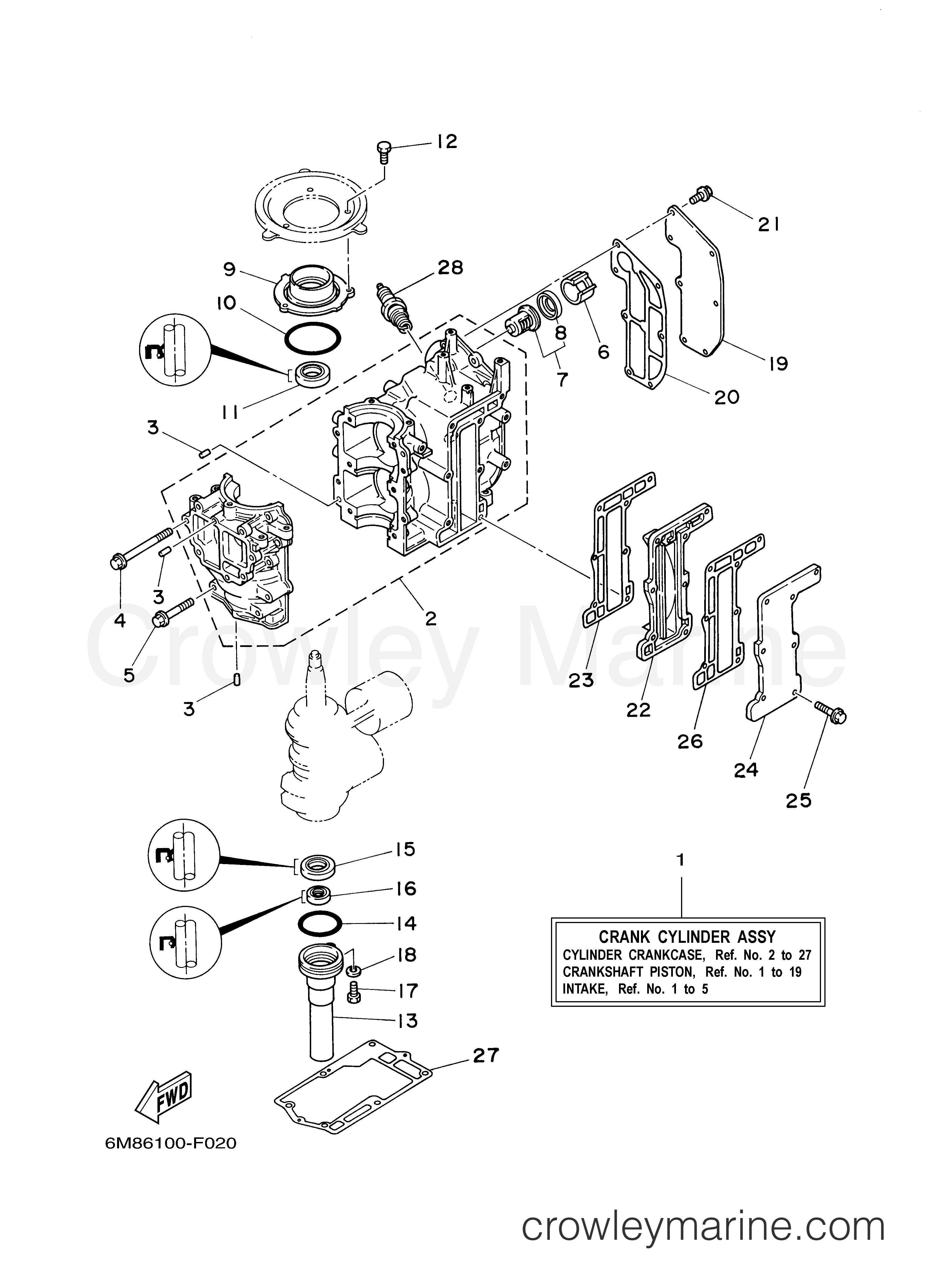

2008 Outboard 8hp - 8MSH CYLINDER CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 8MSH - CYLINDER CRANKCASE
Change View:
Crank Cylinder Assembly
1
Yamaha Motors
Crank Cylinder Assembly6GH-W0090-00-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 6N0-WE090-01-1S
Cross Ship
Leaves in 2-5 days
$2366.80
$2011.78
You save $355.02
More details
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6N0-E5100-00-1S
Required: 1
CRANKCASE ASSY
Cross Ship
Leaves in 2-5 days
$639.10
$543.24
You save $95.87
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt90105-06M26-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
Oil Seal Housing
9
Yamaha Motors
Oil Seal Housing6G1-15359-01-94
Required: 1
HOUSING, OIL SEAL
Cross Ship
Leaves in 2-5 days
$33.90
$28.82
You save $5.09
More details
O-Ring
10
Yamaha Motors
O-Ring93210-54M54-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$6.85
$5.82
You save $1.03
More details
Oil Seal
11
Yamaha Motors
Oil Seal93102-20M25-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
BOLT, HEXAGON DEEP RECESS
12
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 3
BOLT
Supersedes: 97013-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details
Oil Seal Housing
13
Yamaha Motors
Oil Seal Housing 6G1-15396-02-5B
Required: 1
HOUSING, OIL SEAL
Cross Ship
Leaves in 2-5 days
$49.85
$42.37
You save $7.48
More details
BOLT, HEXAGON DEEP RECESS
17
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97095-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.21
You save $0.55
More details
CYLINDER HEAD COVER
19
Yamaha Motors
CYLINDER HEAD COVER6GH-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Supersedes: 6N0-E1191-00-1S
Cross Ship
Leaves in 2-5 days
$54.30
$43.44
You save $10.86
More details
Exhaust Inner Cover
22
Yamaha Motors
Exhaust Inner Cover6N0-G1111-00-1S
Required: 1
INNER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$59.15
$50.28
You save $8.87
More details
Flange Bolt
25
Yamaha Motors
Flange Bolt90105-06037-00
Required: 7
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
