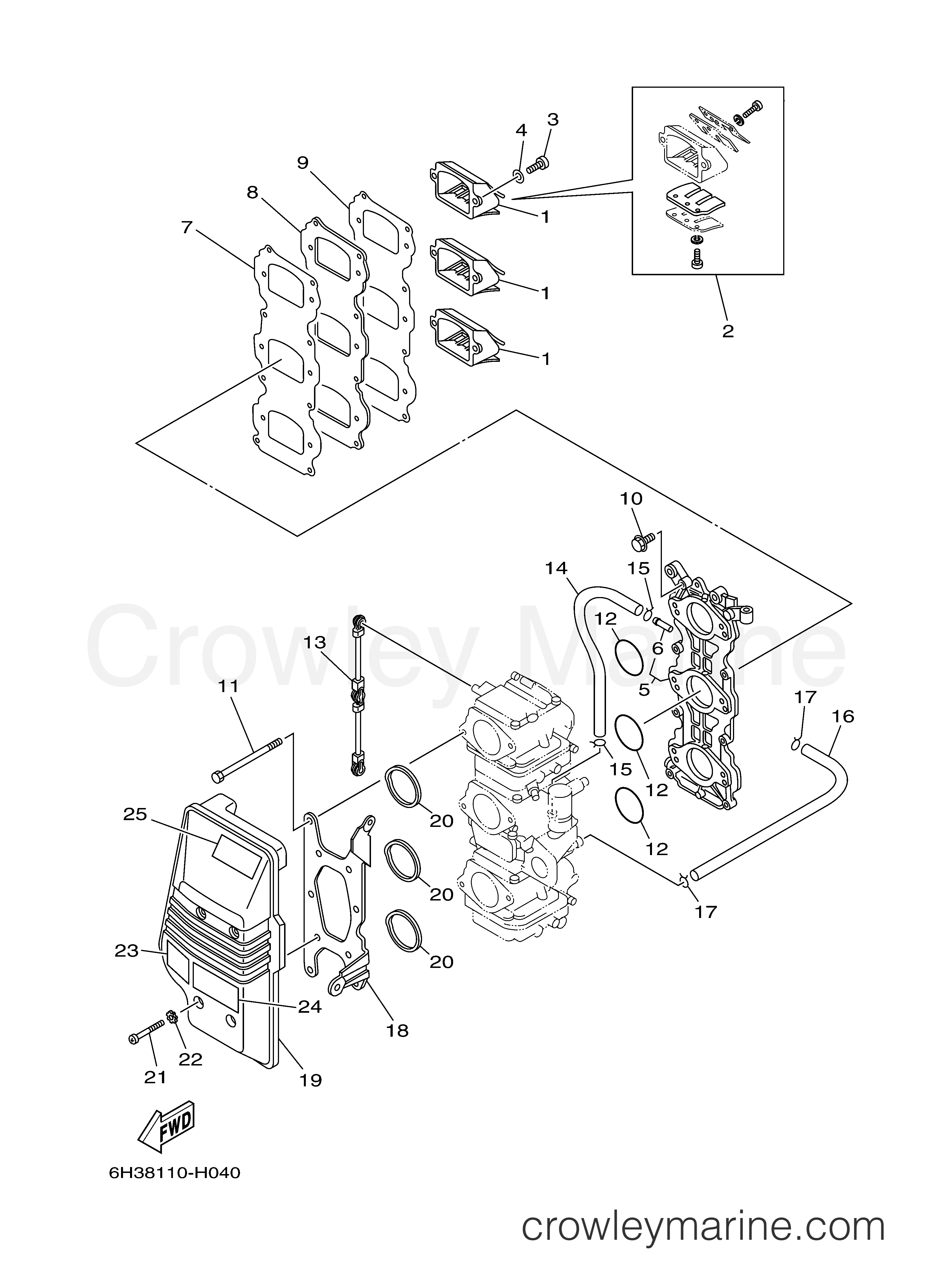

2008 Outboard 70hp - 70TLR INTAKE diagram
1
Yamaha Motors
Reed Valve Assembly6H3-13610-00-00
Required: 3
REED VALVE ASSY
In stock
Only 1 remaining
$101.95
You save $18.55
In stock
Only 4 remaining
$50.52
You save $12.63
3
Yamaha Motors
Pan Head Screw97885-05016-00
Required: 6
SCREW, PAN HEAD
Supersedes: 97880-05016-00
In stock
5+ in stock
$3.68
You save $0.92
4
Yamaha Motors
Plate Washer92990-05600-00
Required: 6
WASHER, PLATE
In stock
Only 3 remaining
$0.64
You save $0.16
5
Yamaha Motors
Manifold6H3-13641-14-00
Required: 1
MANIFOLD 1
Supersedes: 6H3-13641-13-94
$116.28
You save $20.52
$6.08
You save $1.07
7
Yamaha Motors
Valve Seat Gasket6H3-13621-A1-00
Required: 1
.GASKET, VALVE SEAT
In stock
5+ in stock
$5.96
You save $1.49
8
Yamaha Motors
Reed Valve Plate6H3-13624-00-00
Required: 1
PLATE,REED VALVE
Supersedes: 6H3-13624-00-94
In stock
Only 1 remaining
$9.36
You save $2.34
9
Yamaha Motors
Valve Seat Gasket6H3-13622-A1-00
Required: 1
.GASKET, VALVE SEAT
In stock
5+ in stock
$15.12
You save $3.78
10
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 8
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
$2.60
You save $0.65
In stock
Only 5 remaining
$5.48
You save $1.37
13
Yamaha Motors
Accelerator Lever Rod6H3-41217-00-00
Required: 1
ROD, ACCEL. LEVER
In stock
5+ in stock
$12.44
You save $3.11
14
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 1
HOSE (L160)
Supersedes: 90445-07255-00
In stock
5+ in stock
$5.92
You save $1.48
In stock
Only 3 remaining
$2.56
You save $0.64
$4.44
You save $1.11
In stock
5+ in stock
$7.59
You save $1.90
$79.73
You save $14.07
19
Yamaha Motors
Intake Silencer Assembly6H3-14440-02-00
Required: 1
SILENCER ASSY, INTAKE
In stock
Only 1 remaining
$49.32
You save $12.33
In stock
5+ in stock
$5.36
You save $1.34
21
Yamaha Motors
Pan Head Screw97885-06045-00
Required: 4
SCREW, PAN HEAD
$5.04
You save $1.26
In stock
Only 4 remaining
$3.16
You save $0.79
$6.29
You save $1.11
24
Yamaha Motors
Caution Label6K5-14488-00-00
Required: 1
LABEL, CAUTION
$6.46
You save $1.14
25
Yamaha Motors
SAFETY LABEL6EE-81994-40-00
Required: 1
LABEL, SAFETY
Supersedes: 6AH-81994-40-00
$14.53
You save $2.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
