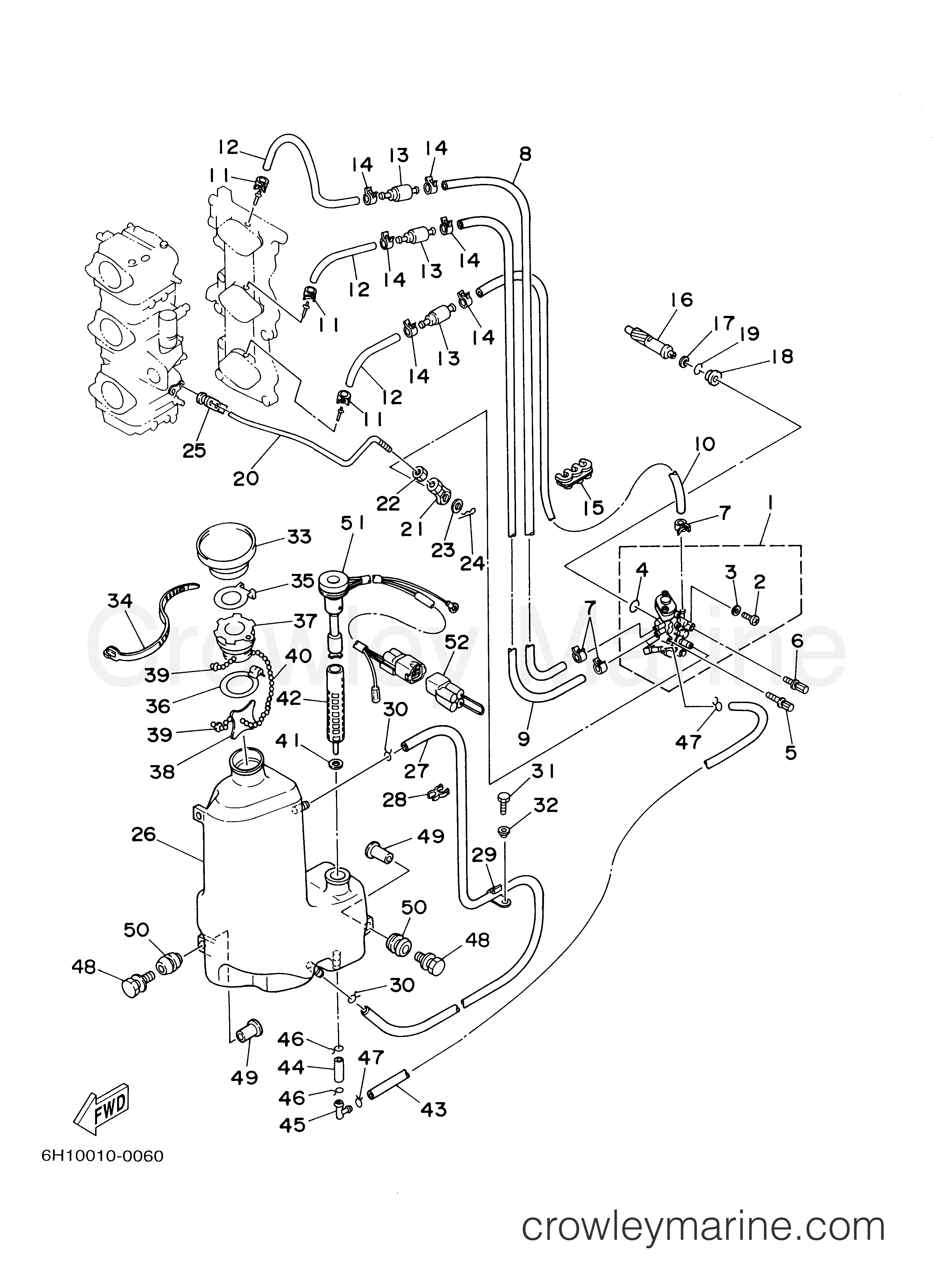

2007 Outboard 90hp - 90TLR OIL PUMP diagram
1
Yamaha Motors
Oil Injection Pump Assembly6H1-13200-02-00
Required: 1
OIL INJECTION PUMP ASSY
In stock
Only 1 remaining
$223.46
You save $39.44
2
Yamaha Motors
Pan Head Screw98580-04006-00
Required: 1
.PLUG, DRAIN
Supersedes: 6R3-13471-00-00
$2.72
You save $0.48
3
Yamaha Motors
Breather Bolt Gasket1YU-13187-00-00
Required: 1
.GASKET
Supersedes: 6L2-13475-00-00
$7.22
You save $1.27
In stock
Only 2 remaining
$6.88
You save $1.21
$1.91
You save $0.34
$1.96
You save $0.35
In stock
5+ in stock
$5.06
You save $0.89
In stock
Only 2 remaining
$6.29
You save $1.11
9
Yamaha Motors
Hose (L340)90445-07M45-00
Required: 1
HOSE (L330)
Supersedes: 90445-07240-00
$6.29
You save $1.11
10
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
5+ in stock
$5.06
You save $0.89
12
Yamaha Motors
Hose (L450)90446-07M48-00
Required: 3
HOSE (L110)
Supersedes: 90445-07M87-00
In stock
5+ in stock
$9.77
You save $1.72
In stock
5+ in stock
$17.85
You save $3.15
In stock
5+ in stock
$5.06
You save $0.89
$3.02
You save $0.53
$45.43
You save $8.02
17
Yamaha Motors
Plate Washer90201-08M93-00
Required: 1
WASHER, PLATE
$2.17
You save $0.38
18
Yamaha Motors
Distance Collar6H1-13117-01-00
Required: 1
COLLAR, DISTANCE
$12.54
You save $2.21
In stock
Only 2 remaining
$1.78
You save $0.32
In stock
Only 1 remaining
$12.07
You save $2.13
In stock
5+ in stock
$17.55
You save $3.10
In stock
Only 5 remaining
$8.07
You save $1.42
23
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$6.54
You save $1.16
In stock
5+ in stock
$3.02
You save $0.53
25
Yamaha Motors
Link Joint6R5-41237-00-00
Required: 1
JOINT, LINK
Supersedes: 6E9-41237-00-00
In stock
5+ in stock
$9.05
You save $1.60
In stock
Only 2 remaining
$115.39
You save $20.36
In stock
Only 2 remaining
$9.69
You save $1.71
$5.70
You save $1.00
In stock
Only 1 remaining
$7.52
You save $1.33
In stock
Only 3 remaining
$2.29
You save $0.41
$2.35
You save $0.41
$4.55
You save $0.80
33
Yamaha Motors
Filler Tube6H1-21752-00-00
Required: 1
TUBE, FILLER 1
$20.02
You save $3.53
In stock
Only 4 remaining
$3.53
You save $0.62
In stock
Only 1 remaining
$7.95
You save $1.40
$5.06
You save $0.89
37
Yamaha Motors
Oil Tank Cap Assembly6H4-21770-01-00
Required: 1
OIL TANK CAP ASSY
Supersedes: 6H4-21770-00-00
In stock
5+ in stock
$26.10
You save $4.61
38
Yamaha Motors
Special Washer6J8-21758-00-00
Required: 1
WASHER, SPECIAL 2
$7.52
You save $1.33
39
Yamaha Motors
Special Washer6H1-21757-00-00
Required: 2
WASHER, SPECIAL 1
$5.06
You save $0.89
$6.25
You save $1.10
41
Yamaha Motors
Strainer Cover Gasket6J8-13414-00-00
Required: 1
GASKET, STRAINER COVER
In stock
Only 5 remaining
$3.02
You save $0.53
In stock
Only 4 remaining
$26.90
You save $4.75
In stock
Only 3 remaining
$10.84
You save $1.91
In stock
Only 1 remaining
$4.80
You save $0.85
In stock
Only 1 remaining
$35.06
You save $6.19
$2.12
You save $0.37
In stock
5+ in stock
$8.07
You save $1.42
48
Yamaha Motors
Bolt with Washer90119-06311-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06M88-00
In stock
Only 3 remaining
$1.69
You save $0.30
In stock
5+ in stock
$4.08
You save $0.72
50
Yamaha Motors
DAMPER, IGNITION C6A0-82317-01-00
Required: 3
DAMPER, IGNITION COIL
Supersedes: 6A0-82317-00-00
In stock
Only 5 remaining
$6.03
You save $1.07
51
Yamaha Motors
OIL LEVEL GAUGE ASSY6H1-85720-17-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 6H1-85720-15-00
In stock
5+ in stock
$156.70
You save $27.65
52
Yamaha Motors
Wire Harness Cover6R5-82582-B0-00
Required: 1
COVER, WIRE HARNESS
$17.98
You save $3.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
