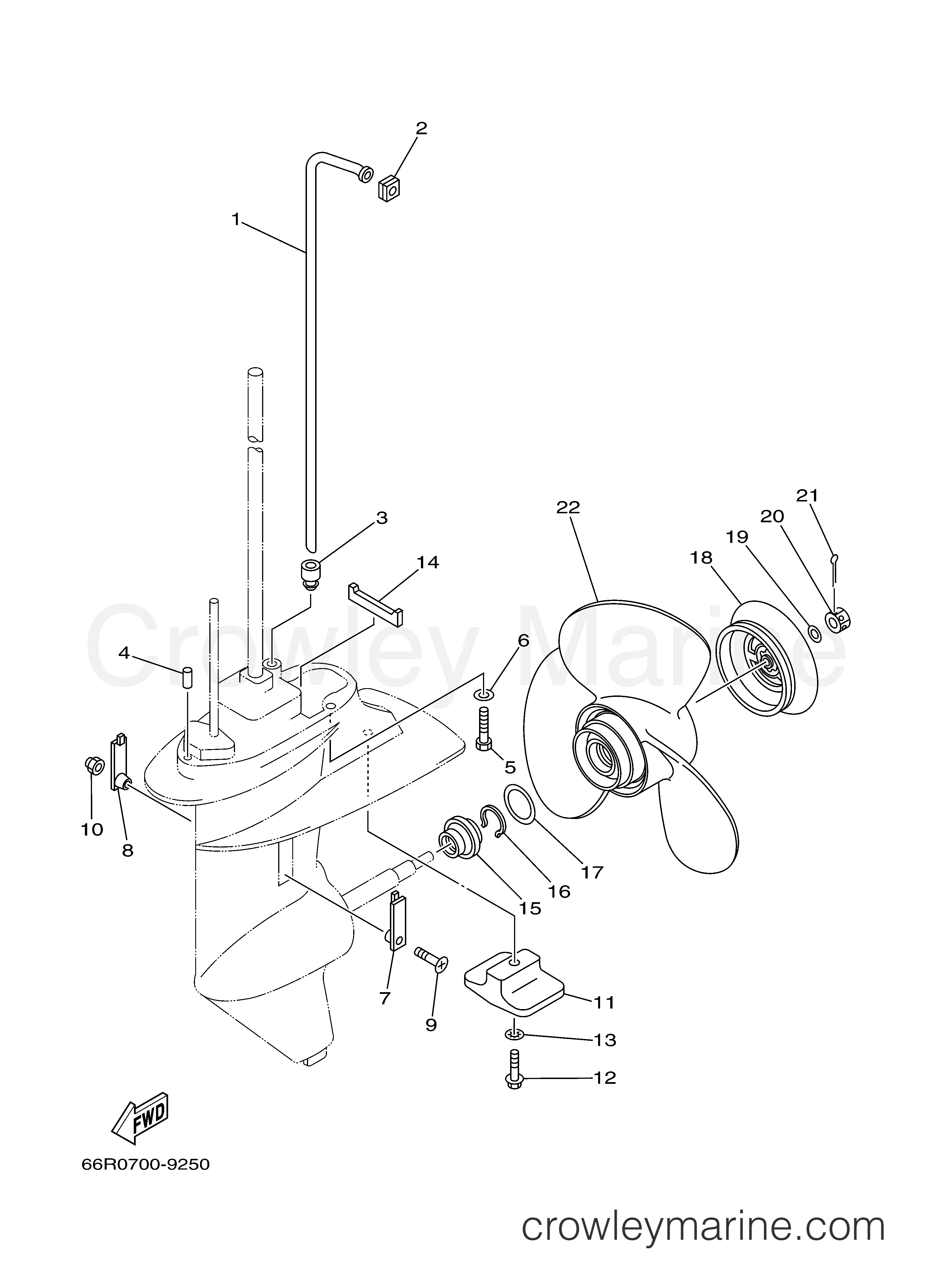

2006 Outboard 9.9hp - T9.9EXH2K LOWER CASING DRIVE 2 diagram
$33.06
You save $5.84
$38.76
You save $6.84
2
Yamaha Motors
Water Seal Damper 163V-44365-11-00
Required: 1
DAMPER, WATER SEAL 1
Supersedes: 63V-44365-10-00
In stock
Only 2 remaining
$4.08
You save $0.72
3
Yamaha Motors
RUBBER, WATER SEAL 463V-44368-01-00
Required: 1
.RUBBER, WATER SEAL 4
Supersedes: 63V-44368-00-00
In stock
Only 1 remaining
$2.29
You save $0.41
4
Yamaha Motors
Dowel Pin93604-10M03-00
Required: 2
PIN, DOWEL
Supersedes: 93604-12M07-00
In stock
Only 1 remaining
$4.42
You save $0.78
5
Yamaha Motors
Bolt97095-08035-00
Required: 4
BOLT
Supersedes: 97075-08035-00
In stock
5+ in stock
$4.67
You save $0.82
6
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
7
Yamaha Motors
Water Inlet Cover6G1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
Only 1 remaining
$6.71
You save $1.19
8
Yamaha Motors
Water Inlet Cover 263V-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
Only 2 remaining
$8.03
You save $1.42
9
Yamaha Motors
Countersunk Screw90152-05011-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90152-05M04-00
In stock
Only 5 remaining
$2.85
You save $0.50
10
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
In stock
5+ in stock
$16.53
You save $2.92
12
Yamaha Motors
DEEP FLANGE BOLT95D95-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95895-06030-00
In stock
Only 5 remaining
$4.55
You save $0.80
13
Yamaha Motors
Washer92990-06300-00
Required: 1
WASHER, INTERNAL TOOTH
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$5.61
You save $0.99
In stock
Only 1 remaining
$22.82
You save $4.03
In stock
Only 3 remaining
$12.03
You save $2.12
17
Yamaha Motors
Plate Washer90201-31MA3-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$4.04
You save $0.71
18
Yamaha Motors
Deflector Ring6G8-45986-00-00
Required: 1
RING, DEFLECTOR
In stock
Only 5 remaining
$21.04
You save $3.71
19
Yamaha Motors
Plate Washer90201-10M02-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$3.91
You save $0.69
In stock
Only 2 remaining
$10.58
You save $1.87
In stock
5+ in stock
$3.39
You save $0.60
22
Yamaha Motors
Dual Thrust Prop - 3 Blade 11.75x11RH Plastic6G8-45941-00-00
Required: 1
PROPELLER (3X11" X 11-3/4"-R)
$170.85
You save $30.15
22
Yamaha Motors
Dual Thrust Prop - 3 Blade 11.75x9.25RH Aluminum6G8-45947-00-00
Required: 1
PROPELLER (3X11-3/4"X9-1/4"-R)
Supersedes: 6G8-45947-00-EL
In stock
Only 1 remaining
$170.85
You save $30.15
22
Yamaha Motors
Dual Thrust Prop - 3 Blade 11.75x12.25RH Plastic6G8-45945-00-00
Required: 1
PROPELLER(3X11-3/4"X12-1/4"-R)
$170.85
You save $30.15
22
Yamaha Motors
Dual Thrust Prop - 3 Blade 11.75x9.25RH Plastic6G8-45943-00-00
Required: 1
PROPELLER (3X11-3/4"X9-1/4"-R)
In stock
Only 1 remaining
$170.85
You save $30.15
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
