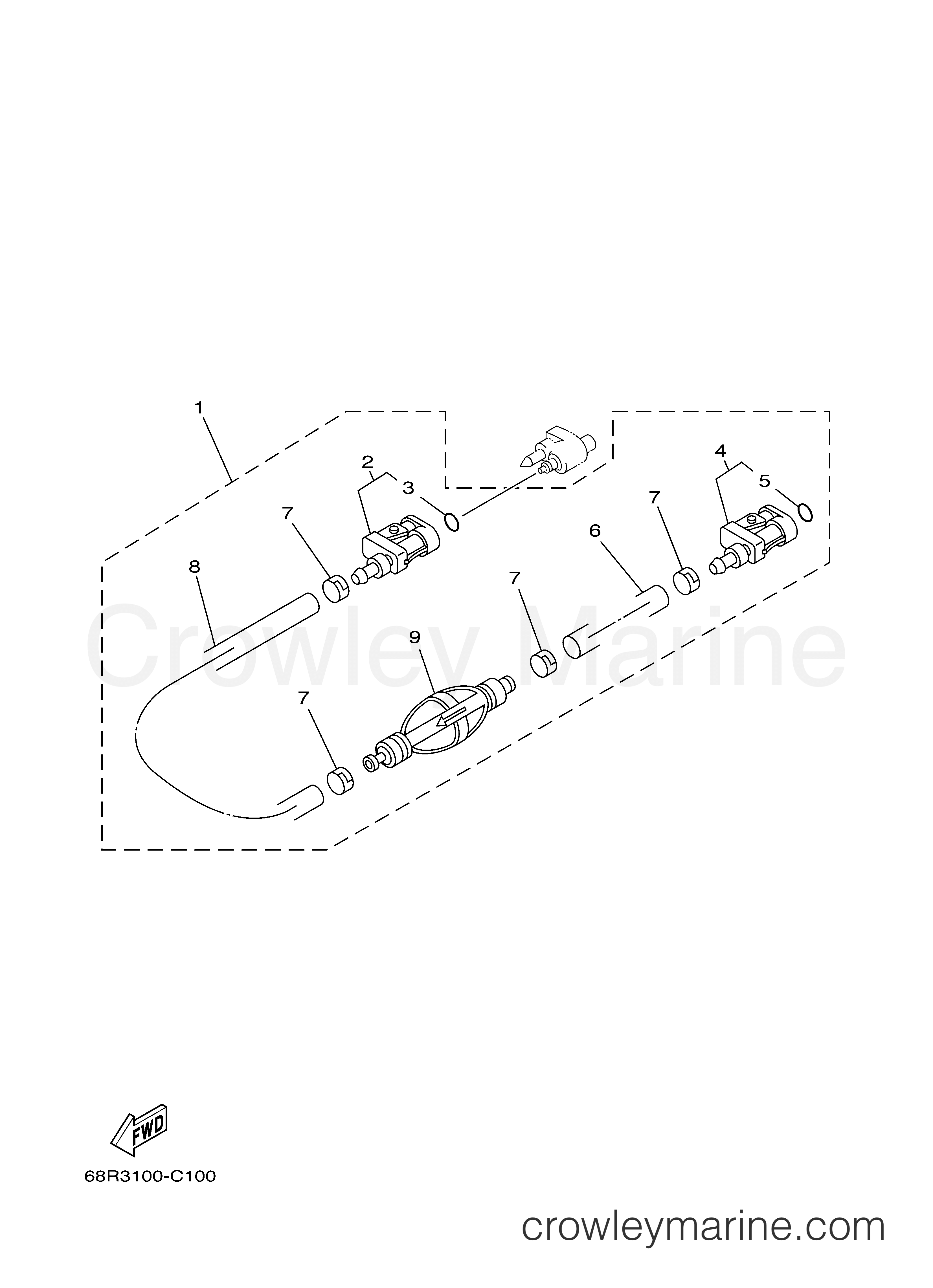

2006 Outboard 9.9hp - T9.9EXH2K FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Fuel Pipe Comp6YK-24306-64-00

Required: 1

FUEL PIPE COMP. 1

Supersedes: 6Y2-24306-56-00

In stock

5+ in stock

~~$113.45~~

$96.43

You save $17.02

More details

Yamaha Motors

Fuel Pipe Joint Comp6E5-24305-06-00

Required: 1

.FUEL PIPE JOINT COMP 2

In stock

5+ in stock

~~$26.30~~

$22.36

You save $3.95

..O-RING

In stock

Only 4 remaining

~~$5.35~~

$4.55

You save $0.80

More details

Yamaha Motors

Fuel Pipe Joint Comp6Y2-24305-06-00

Required: 1

.FUEL PIPE JOINT COMP 2

~~$26.30~~

$22.36

You save $3.95

..O-RING

In stock

Only 4 remaining

~~$5.35~~

$4.55

You save $0.80

More details

Yamaha Motors

.HOSE (L2050)90445-13M01-00

Required: 1

.HOSE (L2050)

~~$28.65~~

$24.35

You save $4.30

.BAND 1

~~$10.40~~

$8.84

You save $1.56

More details

Yamaha Motors

.HOSE (L850)90445-13M00-00

Required: 1

.HOSE (L850)

~~$24.50~~

$20.82

You save $3.68

More details

Yamaha Motors

6YK-24360-71-006YK-24360-70-00

Required: 1

.PRIMER PUMP ASSY

Supersedes: 6Y2-24360-60-00

~~$42.45~~

$36.08

You save $6.37

More details
