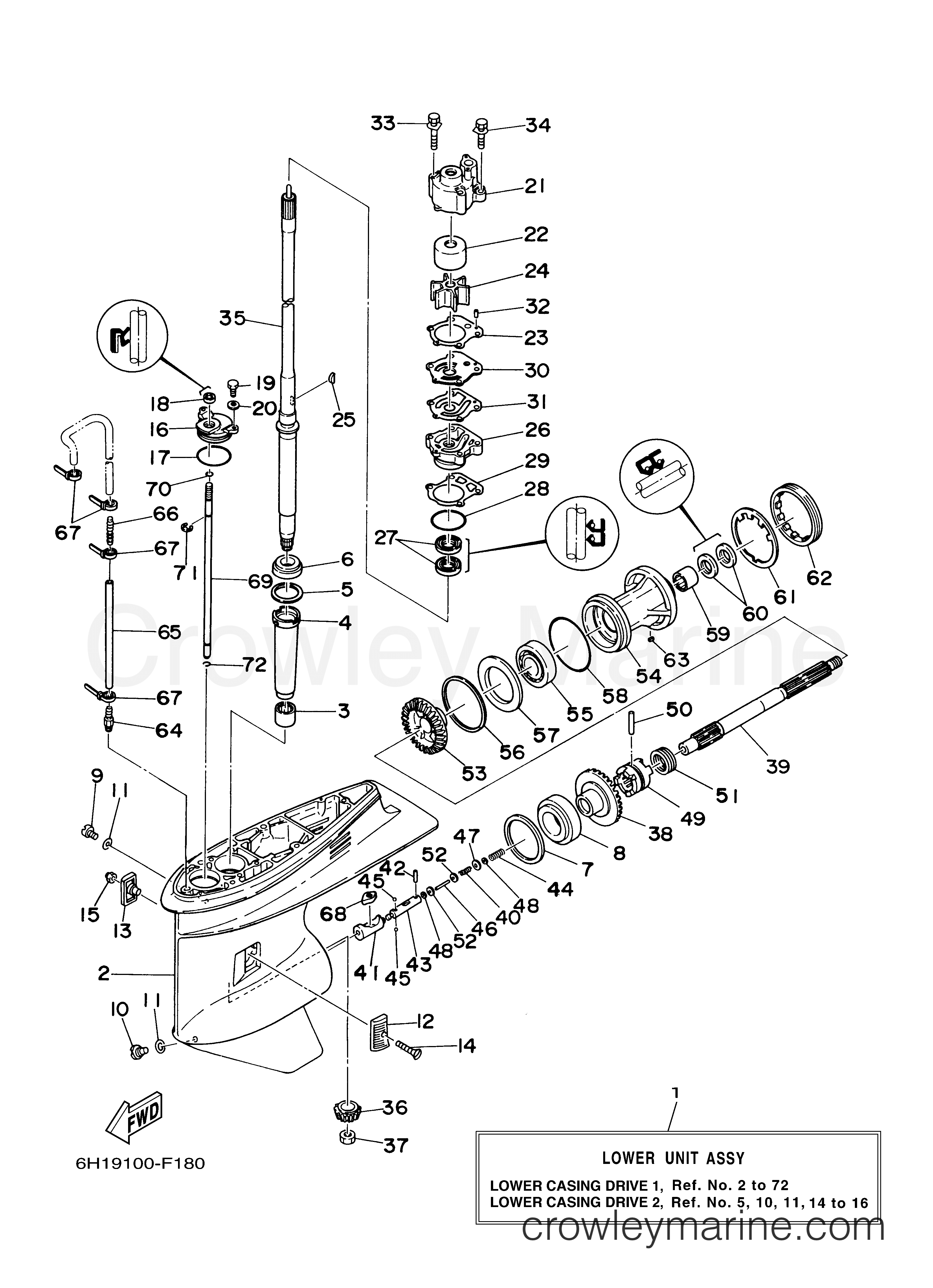

2006 Outboard 90hp - 90TLR LOWER CASING DRIVE 1 diagram
1
Yamaha Motors
Lower Unit Assembly6H1-45300-17-8D
Required: 1
LOWER UNIT ASSY
Supersedes: 6H1-45300-15-4D
In stock
Only 2 remaining
$1934.09
You save $341.31
2
Yamaha Motors
Lower Casing6H1-45301-03-4D
Required: 1
CASING, LOWER
$864.07
You save $152.48
$63.74
You save $11.25
4
Yamaha Motors
Drive Shaft Sleeve688-45536-01-00
Required: 1
SLEEVE, DRIVE SHAFT
$31.75
You save $5.60
5
Yamaha Motors
Shim (T:0.10MM)688-45587-01-00
Required: 1
SHIM (T:0.10MM)
In stock
Only 1 remaining
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.12MM)688-45587-10-00
Required: 1
SHIM (T:0.12MM)
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.15MM)688-45587-20-00
Required: 1
SHIM (T:0.15MM)
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.18MM)688-45587-30-00
Required: 1
SHIM (T:0.18MM)
In stock
Only 1 remaining
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.30MM)688-45587-40-00
Required: 1
SHIM (T:0.30MM)
In stock
Only 1 remaining
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.40MM)688-45587-50-00
Required: 1
SHIM (T:0.40MM)
$3.02
You save $0.53
5
Yamaha Motors
Shim (T:0.50MM)688-45587-60-00
Required: 1
SHIM (T:0.50MM)
In stock
Only 1 remaining
$3.02
You save $0.53
In stock
Only 2 remaining
$38.24
You save $6.75
7
Yamaha Motors
Shim (T:0.10MM)688-45567-01-00
Required: 1
SHIM (T:0.10MM)
In stock
Only 1 remaining
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.12MM)688-45567-10-00
Required: 1
SHIM (T:0.12MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.15MM)688-45567-20-00
Required: 1
SHIM (T:0.15MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.18MM)688-45567-30-00
Required: 1
SHIM (T:0.18MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.30MM)688-45567-40-00
Required: 1
SHIM (T:0.30MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.40MM)688-45567-50-00
Required: 1
SHIM (T:0.40MM)
$5.31
You save $0.94
7
Yamaha Motors
Shim (T:0.50MM)688-45567-60-00
Required: 1
SHIM (T:0.50MM)
In stock
Only 1 remaining
$5.31
You save $0.94
$97.74
You save $17.25
9
Yamaha Motors
Straight Screw Plug90340-08002-00
Required: 1
PLUG, STRAIGHT SCREW
In stock
5+ in stock
$10.84
You save $1.91
In stock
5+ in stock
$10.79
You save $1.90
11
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 2
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.32
You save $0.23
12
Yamaha Motors
Water Inlet Cover6H1-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
5+ in stock
$12.07
You save $2.13
13
Yamaha Motors
Water Inlet Cover 26H1-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
5+ in stock
$12.07
You save $2.13
14
Yamaha Motors
Countersunk Screw90151-05M00-00
Required: 1
SCREW, COUNTERSUNK
In stock
5+ in stock
$2.85
You save $0.50
15
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
$15.09
You save $2.66
In stock
5+ in stock
$7.22
You save $1.27
In stock
5+ in stock
$7.14
You save $1.26
$2.35
You save $0.41
20
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
21
Yamaha Motors
Water Pump Housing688-44311-01-00
Required: 1
HOUSING, WATER PUMP
In stock
5+ in stock
$28.22
You save $4.98
22
Yamaha Motors
Cartridge Insert688-44322-00-00
Required: 1
INSERT, CARTRIDGE
In stock
5+ in stock
$10.45
You save $1.85
23
Yamaha Motors
Water Pump Gasket688-44315-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
In stock
5+ in stock
$29.37
You save $5.18
In stock
5+ in stock
$7.61
You save $1.34
26
Yamaha Motors
Water Pump Housing6D8-WS443-00-00
Required: 1
HOUSING, WATER PUMP
Supersedes: 688-44341-01-94
In stock
5+ in stock
$57.50
You save $10.15
In stock
5+ in stock
$6.21
You save $1.10
In stock
5+ in stock
$7.22
You save $1.27
29
Yamaha Motors
Water Pump Gasket688-44316-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
30
Yamaha Motors
Cartridge Outer Plate688-44323-00-00
Required: 1
OUTER PLATE, CARTRIDGE
In stock
5+ in stock
$10.41
You save $1.84
31
Yamaha Motors
Cartridge Gasket688-44324-A0-00
Required: 1
.GASKET, CARTRIDGE
In stock
5+ in stock
$4.68
You save $0.83
In stock
Only 1 remaining
$4.42
You save $0.78
33
Yamaha Motors
Bolt With Washer90119-08M16-00
Required: 2
.BOLT, WITH WASHER
In stock
Only 2 remaining
$8.92
You save $1.57
34
Yamaha Motors
Bolt With Washer90119-08M13-00
Required: 2
.BOLT, WITH WASHER
In stock
5+ in stock
$4.76
You save $0.84
35
Yamaha Motors
Complete Drive Shaft6H1-45501-11-00
Required: 1
DRIVE SHAFT COMP.
$590.84
You save $104.26
$142.25
You save $25.10
In stock
Only 4 remaining
$6.37
You save $1.12
$215.52
You save $38.03
39
Yamaha Motors
Propeller Shaft6H1-45611-01-00
Required: 1
SHAFT, PROPELLER
$279.95
You save $49.40
40
Yamaha Motors
Compression Spring90501-12M48-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$7.31
You save $1.29
$181.13
You save $31.97
In stock
Only 4 remaining
$3.74
You save $0.66
In stock
Only 1 remaining
$143.18
You save $25.27
44
Yamaha Motors
Compression Spring90501-16M65-00
Required: 1
SPRING, COMPRESSION
In stock
Only 4 remaining
$3.53
You save $0.62
In stock
5+ in stock
$2.46
You save $0.44
46
Yamaha Motors
Free Shaft6H1-45668-00-00
Required: 1
SHAFT, FREE 1
$12.66
You save $2.24
47
Yamaha Motors
Plate Washer90201-03313-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
In stock
5+ in stock
$0.42
You save $0.08
$163.46
You save $28.84
50
Yamaha Motors
Straight Pin90250-07M02-00
Required: 1
PIN, STRAIGHT
In stock
Only 1 remaining
$6.71
You save $1.19
51
Yamaha Motors
Cross Pin Ring688-45633-00-00
Required: 1
RING, CROSS PIN
In stock
Only 5 remaining
$3.02
You save $0.53
52
Yamaha Motors
Shift Plunger6H1-45635-00-00
Required: 2
PLUNGER, SHIFT
$24.86
You save $4.39
$143.61
You save $25.34
54
Yamaha Motors
Bearing Housing688-45331-00-CA
Required: 1
HOUSING, BEARING
Supersedes: 688-45331-00-94
$96.09
You save $16.96
In stock
5+ in stock
$32.29
You save $5.70
56
Yamaha Motors
Shim (T:0.10MM)688-45577-01-00
Required: 1
SHIM (T:0.10MM)
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.12MM)688-45577-10-00
Required: 1
SHIM (T:0.12MM)
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.15MM)688-45577-20-00
Required: 1
SHIM (T:0.15MM)
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.18MM)688-45577-30-00
Required: 1
SHIM (T:0.18MM)
In stock
Only 1 remaining
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.30MM)688-45577-40-00
Required: 1
SHIM (T:0.30MM)
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.40MM)688-45577-50-00
Required: 1
SHIM (T:0.40MM)
$5.31
You save $0.94
56
Yamaha Motors
Shim (T:0.50MM)688-45577-60-00
Required: 1
SHIM (T:0.50MM)
In stock
Only 1 remaining
$5.31
You save $0.94
57
Yamaha Motors
Thrust Washer688-45576-00-00
Required: 1
WASHER, THRUST
In stock
Only 1 remaining
$14.53
You save $2.56
In stock
Only 4 remaining
$11.47
You save $2.03
In stock
5+ in stock
$22.09
You save $3.90
In stock
5+ in stock
$6.21
You save $1.10
In stock
Only 5 remaining
$12.92
You save $2.28
62
Yamaha Motors
Nut688-45384-02-00
Required: 1
NUT
Supersedes: 688-45384-00-00
In stock
Only 3 remaining
$29.41
You save $5.19
63
Yamaha Motors
Straight Key90282-04010-00
Required: 1
KEY, STRAIGHT
In stock
Only 1 remaining
$12.07
You save $2.13
In stock
5+ in stock
$9.18
You save $1.62
65
Yamaha Motors
Hose (L250)90445-07MF2-00
Required: 1
HOSE (L120)
Supersedes: 90445-07ME9-00
In stock
5+ in stock
$3.53
You save $0.62
In stock
5+ in stock
$9.69
You save $1.71
67
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
In stock
Only 1 remaining
$28.22
You save $4.98
In stock
Only 1 remaining
$72.55
You save $12.80
70
Yamaha Motors
O-Ring93210-07540-00
Required: 1
O-RING
Supersedes: 93210-07003-00
In stock
5+ in stock
$6.37
You save $1.12
In stock
Only 4 remaining
$8.07
You save $1.42
In stock
Only 1 remaining
$6.54
You save $1.16
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
