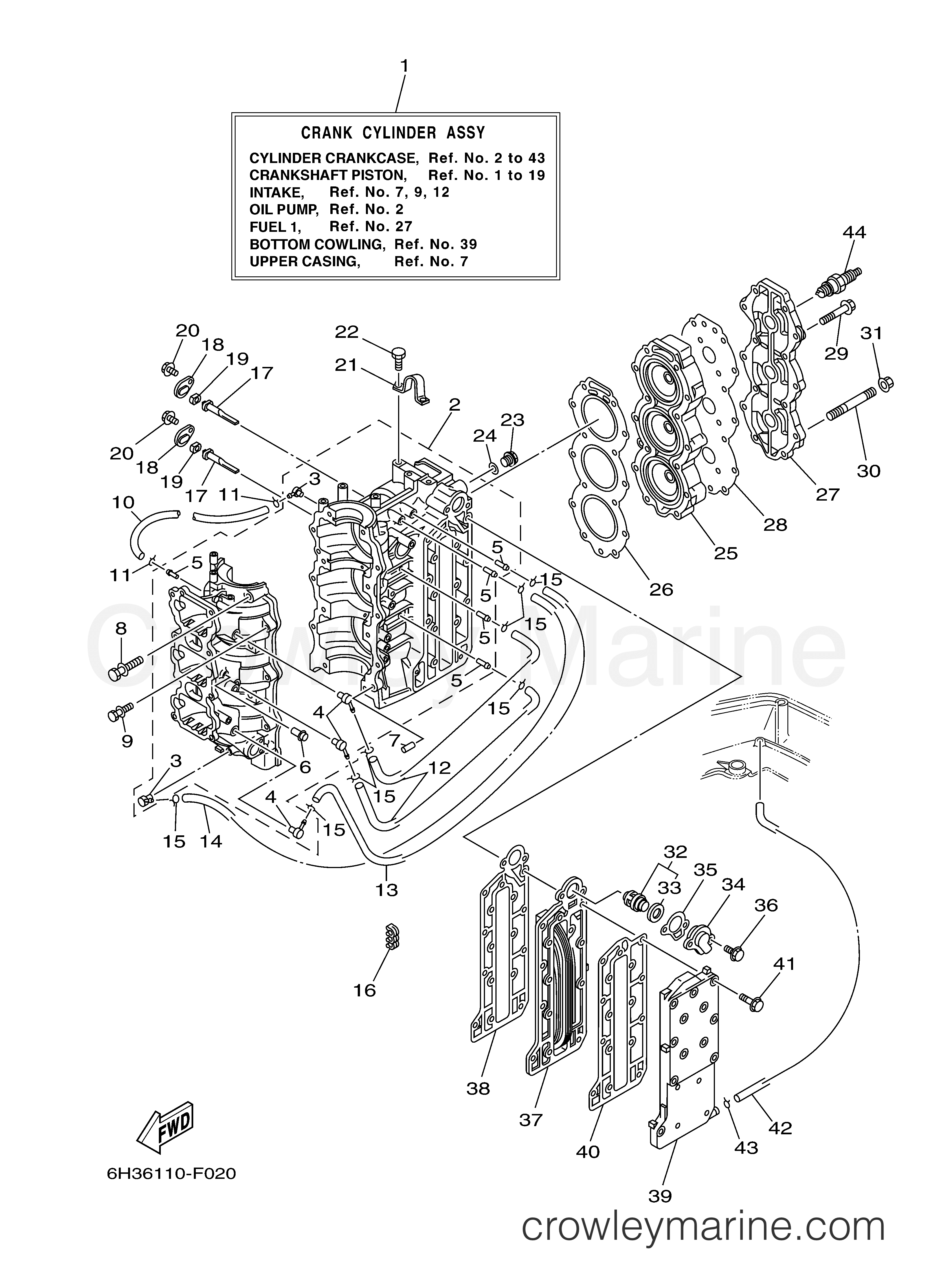

2006 Outboard 70hp - 70TLR CYLINDER CRANKCASE diagram
1
Yamaha Motors
CRANK CYLINDER ASSY6H3-W0090-47-1S
Required: 1
CRANK CYLINDER ASSY
Supersedes: 6H3-W0090-44-1S
$2774.78
You save $489.67
2
Yamaha Motors
Crankcase Assembly6H3-15100-14-00
Required: 1
CRANKCASE ASSY
Supersedes: 6H3-15100-14-1S
$2070.56
You save $365.39
3
Yamaha Motors
Check Valve Assembly688-11370-01-00
Required: 2
.CHECK VALVE ASSY
In stock
Only 1 remaining
$13.56
You save $2.39
4
Yamaha Motors
Check Valve Assembly650-11370-01-00
Required: 3
.CHECK VALVE ASSY
In stock
Only 4 remaining
$14.24
You save $2.51
$6.88
You save $1.21
6
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.93
You save $0.87
In stock
Only 1 remaining
$5.74
You save $1.01
8
Yamaha Motors
Bolt with Washer90119-10M07-00
Required: 8
BOLT, WITH WASHER
Supersedes: 90119-10005-00
$4.67
You save $0.82
9
Yamaha Motors
Bolt with Washer90119-08MA0-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08M64-00
$7.64
You save $1.35
10
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L250)
Supersedes: 90445-07M44-00
In stock
Only 2 remaining
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
12
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 2
HOSE (L167)
Supersedes: 90445-07M02-00
In stock
5+ in stock
$6.29
You save $1.11
13
Yamaha Motors
Hose (L390)90445-07M90-00
Required: 1
HOSE (L340)
Supersedes: 90445-07M45-00
In stock
Only 2 remaining
$6.29
You save $1.11
$19.54
You save $3.45
In stock
Only 3 remaining
$2.72
You save $0.48
$3.02
You save $0.53
In stock
Only 4 remaining
$5.23
You save $0.92
18
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 2
COVER, ANODE
Supersedes: 6H3-11327-00-1S
$27.63
You save $4.88
19
Yamaha Motors
ANODE GROMMET6H3-11328-01-00
Required: 2
GROMMET, ANODE
Supersedes: 6H3-11328-00-00
In stock
5+ in stock
$5.74
You save $1.01
20
Yamaha Motors
Bolt with Washer90119-06023-00
Required: 2
BOLT, WITH WASHER
$2.72
You save $0.48
21
Yamaha Motors
Engine Hanger688-11119-01-00
Required: 1
HANGER, ENGINE
$12.66
You save $2.24
$3.91
You save $0.69
23
Yamaha Motors
Straight Screw Plug90340-14M06-00
Required: 1
.PLUG, STRAIGHT SCREW
Supersedes: 90340-14M00-00
In stock
5+ in stock
$12.07
You save $2.13
In stock
Only 2 remaining
$2.55
You save $0.45
25
Yamaha Motors
Cylinder Head6H3-11111-01-1S
Required: 1
HEAD, CYLINDER 1
$265.88
You save $46.92
26
Yamaha Motors
Cylinder Head Gasket6H3-11181-A2-00
Required: 1
.GASKET, CYLINDER HEAD 1
Supersedes: 6H3-11181-A1-00
In stock
5+ in stock
$42.20
You save $7.45
27
Yamaha Motors
Cylinder Head Cover6H3-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
In stock
Only 1 remaining
$63.20
You save $11.15
28
Yamaha Motors
Head Cover Gasket6H3-11193-A1-00
Required: 1
GASKET, HEAD COVER 1
In stock
5+ in stock
$29.07
You save $5.13
29
Yamaha Motors
Bolt with Washer90119-08MA5-00
Required: 13
BOLT, WITH WASHER
$5.61
You save $0.99
$9.69
You save $1.71
$3.82
You save $0.68
In stock
5+ in stock
$29.20
You save $5.15
33
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.80
You save $0.85
34
Yamaha Motors
Thermostat Cover6H3-12413-00-1S
Required: 1
COVER, THERMOSTAT
In stock
5+ in stock
$20.36
You save $3.59
35
Yamaha Motors
GASKET, COVER62Y-12414-01-00
Required: 1
GASKET, COVER
Supersedes: 6H3-12414-A1-00
In stock
5+ in stock
$8.63
You save $1.52
36
Yamaha Motors
Bolt with Washer90119-06MA3-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.72
You save $0.48
37
Yamaha Motors
Exhaust Inner Cover6H3-41111-01-1S
Required: 1
INNER COVER, EXHAUST
In stock
5+ in stock
$36.80
You save $6.50
38
Yamaha Motors
Exhaust Inner Cover Gasket6H3-41112-A0-00
Required: 1
.GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$10.79
You save $1.90
39
Yamaha Motors
Exhaust Outer Cover6H3-41113-02-1S
Required: 1
OUTER COVER, EXHAUST
$78.29
You save $13.81
40
Yamaha Motors
Exhaust Outer Cover Gasket6H3-41114-A0-00
Required: 1
GASKET, EXHAUST OUTER COVER
In stock
5+ in stock
$10.79
You save $1.90
41
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 16
BOLT, WITH WASHER
In stock
5+ in stock
$3.02
You save $0.53
42
Yamaha Motors
Fuel Pipe6H4-24311-00-00
Required: 1
PIPE 2
Supersedes: 663-24312-01-00
In stock
Only 4 remaining
$5.91
You save $1.04
In stock
5+ in stock
$8.07
You save $1.42
44
Yamaha Motors
Spark Plug NGK BR8HS-10BR8-HS100-00-00
Required: 3
PLUG, SPARK (NGK BR8HS-10)
Supersedes: NGK-BR8HS-10-00
In stock
5+ in stock
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
