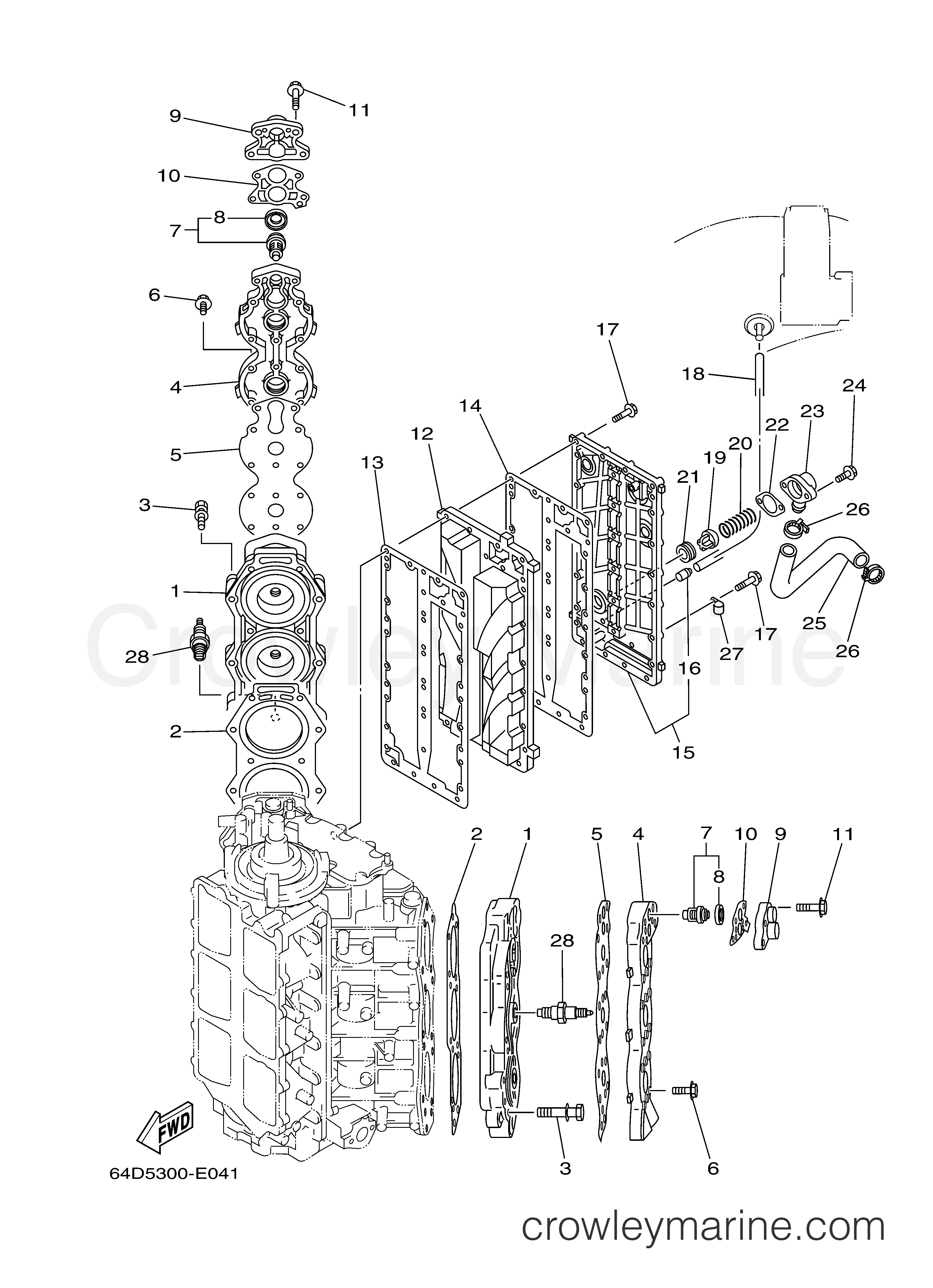

2006 Outboard 150hp - 150TXR CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head6G5-11111-04-1S
Required: 2
HEAD, CYLINDER 1
$264.95
You save $66.75
2
Yamaha Motors
Cylinder Head Gasket6G5-11181-A3-00
Required: 2
.GASKET, CYLINDER HEAD 1
Supersedes: 6G5-11181-A2-00
In stock
5+ in stock
$49.36
You save $12.34
3
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 28
BOLT, WITH WASHER
In stock
5+ in stock
$3.92
You save $0.98
4
Yamaha Motors
Cylinder Head Cover6G5-11191-00-1S
Required: 2
COVER, CYLINDER HEAD 1
$74.36
You save $18.59
5
Yamaha Motors
Head Cover Gasket6G5-11193-A2-00
Required: 2
.GASKET, HEAD COVER 1
Supersedes: 6G5-11193-A1-00
In stock
5+ in stock
$24.72
You save $6.18
6
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 36
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
In stock
5+ in stock
$25.88
You save $6.47
8
Yamaha Motors
Thermostat Seal688-12412-00-00
Required: 1
.SEAL, THERMOSTAT
In stock
5+ in stock
$4.52
You save $1.13
9
Yamaha Motors
Thermostat Cover688-12413-00-1S
Required: 2
COVER, THERMOSTAT
In stock
Only 3 remaining
$12.12
You save $3.03
10
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.68
You save $1.17
11
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 8
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.68
You save $0.92
12
Yamaha Motors
Exhaust Inner Cover64D-41111-00-1S
Required: 1
INNER COVER, EXHAUST
$146.95
You save $26.50
13
Yamaha Motors
Exhaust Inner Cover Gasket6G5-41112-A1-00
Required: 1
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$23.40
You save $5.85
14
Yamaha Motors
.GASKET, EXHAUST OUTER COVER6G5-41114-A0-00
Required: 1
.GASKET, EXHAUST OUTER COVER
In stock
Only 4 remaining
$23.40
You save $5.85
-50%
15
Yamaha Motors
Exhaust Outer Cover6R3-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$86.45
You save $86.45
16
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.64
You save $1.16
17
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 29
BOLT, WITH WASHER
In stock
5+ in stock
$2.84
You save $0.71
18
Yamaha Motors
Hose90445-092K1-00
Required: 1
HOSE (L250)
Supersedes: 90445-09097-00
In stock
5+ in stock
$9.99
You save $2.50
19
Yamaha Motors
Pressure Control Valve60H-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
5+ in stock
$11.00
You save $2.75
20
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
In stock
5+ in stock
$3.52
You save $0.88
In stock
5+ in stock
$4.52
You save $1.13
23
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
COVER, BYPASS 2
In stock
5+ in stock
$15.12
You save $3.78
24
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
In stock
Only 2 remaining
$14.16
You save $3.54
In stock
Only 5 remaining
$1.48
You save $0.37
$6.08
You save $1.07
28
Yamaha Motors
Spark Plug NGK BR7HS-10BR7-HS100-00-00
Required: 6
PLUG, SPARK (NGK BR7HS-10)
Supersedes: NGK-BR7HS-10-00
In stock
5+ in stock
$3.76
You save $0.94
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
