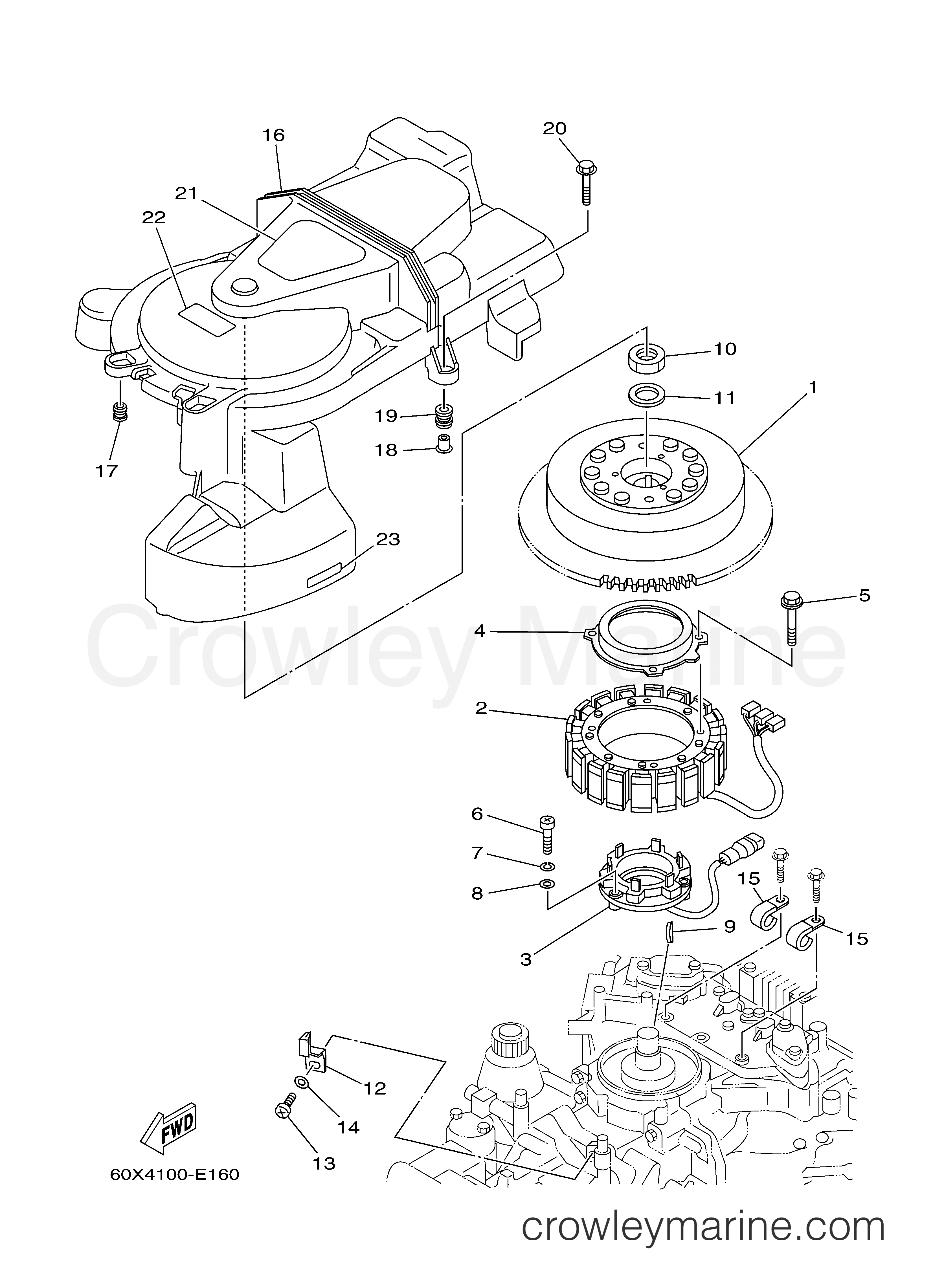

2005 Outboard 250hp - VZ250TLR GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VZ250TLR - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly60V-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$1348.85
$1146.52
You save $202.33
More details
Stator Assembly
2
Yamaha Motors
Stator Assembly60V-81410-02-00
Required: 1
STATOR ASSY
Cross Ship
Leaves in 2-5 days
$702.70
$597.30
You save $105.40
More details
Cover
4
Yamaha Motors
Cover61A-83721-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$27.40
$23.29
You save $4.11
More details
Hexagon Socket Head Bolt
5
Yamaha Motors
Hexagon Socket Head Bolt90110-06127-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Pan Head Screw
6
Yamaha Motors
Pan Head Screw98580-05530-00
Required: 3
SCREW, PAN HEAD
Supersedes: 97885-05030-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Nut
10
Yamaha Motors
Nut90170-24M22-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
Plate Washer
11
Yamaha Motors
Plate Washer90201-25M02-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Timing Plate
12
Yamaha Motors
Timing Plate60V-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$15.65
$13.30
You save $2.35
More details
Clamp
15
Yamaha Motors
Clamp90465-06M86-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
Flywheel Cover
16
Yamaha Motors
Flywheel Cover60V-81337-01-00
Required: 1
COVER, FLYWHEEL
Cross Ship
Leaves in 2-5 days
$142.15
$120.83
You save $21.32
More details
Caution Label
21
Yamaha Motors
Caution Label60V-14488-00-00
Required: 1
LABEL, CAUTION
Cross Ship
Leaves in 2-5 days
$9.05
$7.69
You save $1.36
More details
Caution Mark
23
Yamaha Motors
Caution Mark6E5-85711-40-00
Required: 1
MARK, CAUTION
Cross Ship
Leaves in 2-5 days
$6.95
$5.91
You save $1.04
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
