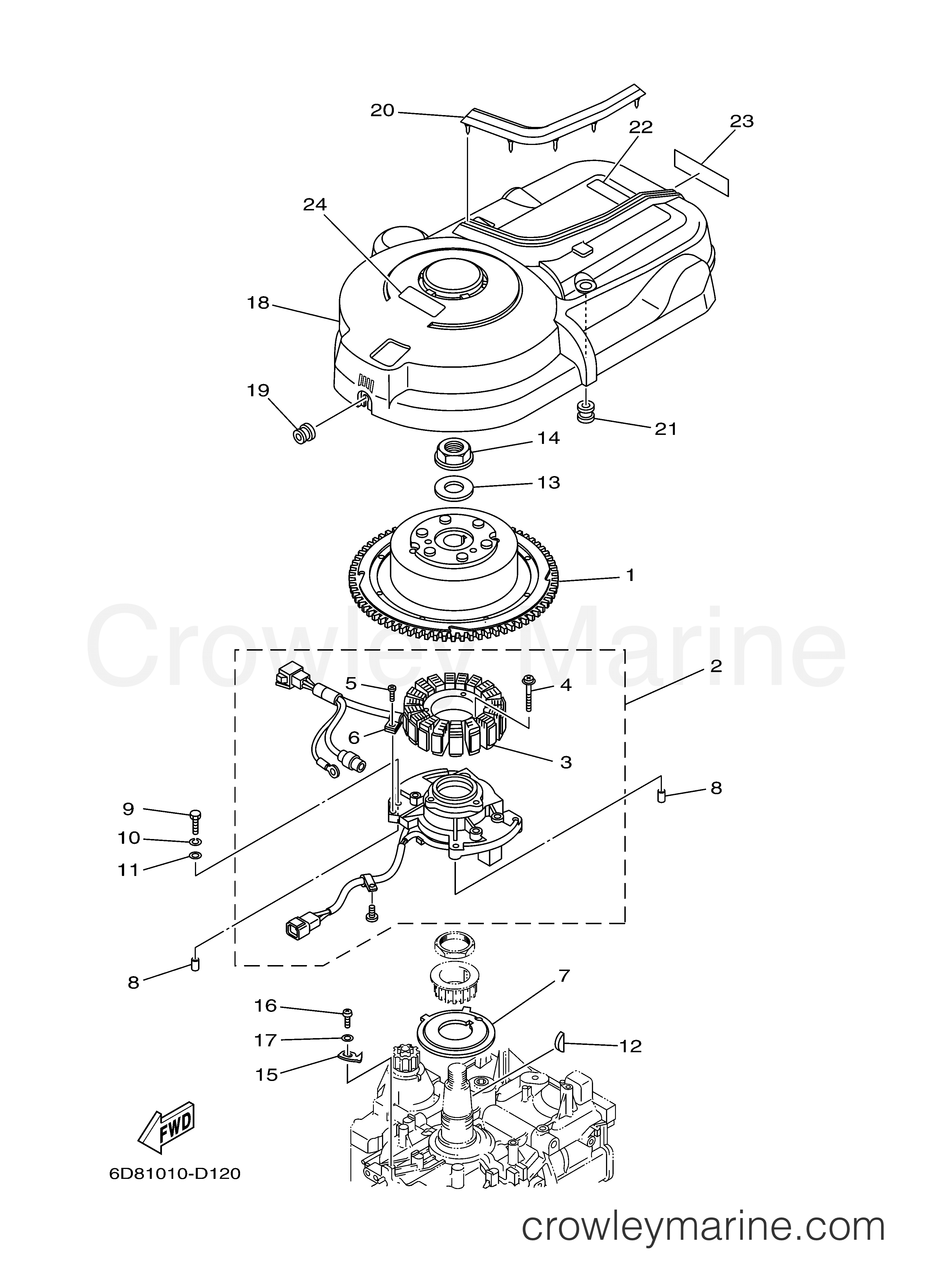

2005 Outboard 90hp - F90TLRD GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F90TLRD - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly6D8-81450-00-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$764.80
$650.08
You save $114.72
More details
Base Assembly
2
Yamaha Motors
Base Assembly6D8-81460-00-00
Required: 1
BASE ASSY
Cross Ship
Leaves in 2-5 days
$519.40
$441.49
You save $77.91
More details
Stator Assembly
3
Yamaha Motors
Stator Assembly6D8-81410-00-00
Required: 1
.STATOR ASSY
Cross Ship
Leaves in 2-5 days
$611.55
$519.82
You save $91.73
More details
With Washer Screw
5
Yamaha Motors
With Washer Screw97607-04110-00
Required: 1
.SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
Clamp
6
Yamaha Motors
Clamp445-81328-20-00
Required: 1
.CLAMP
Cross Ship
Leaves in 2-5 days
$5.99
$5.09
You save $0.90
More details
Rotor
7
Yamaha Motors
Rotor68V-81673-00-00
Required: 1
ROTOR
Cross Ship
Leaves in 2-5 days
$58.45
$49.68
You save $8.77
More details
Plate Washer
13
Yamaha Motors
Plate Washer90201-24014-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$12.70
$10.79
You save $1.90
More details
Nut
14
Yamaha Motors
Nut90179-24002-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$42.00
$35.70
You save $6.30
More details
Timing Plate
15
Yamaha Motors
Timing Plate6D8-81332-00-00
Required: 1
PLATE, TIMING
Cross Ship
Leaves in 2-5 days
$5.50
$4.68
You save $0.83
More details
Damper
20
Yamaha Motors
Damper6D8-85547-00-00
Required: 1
DAMPER
Cross Ship
Leaves in 2-5 days
$16.60
$14.11
You save $2.49
More details
Caution Mark
22
Yamaha Motors
Caution Mark67F-12138-40-00
Required: 1
MARK, CAUTION
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
