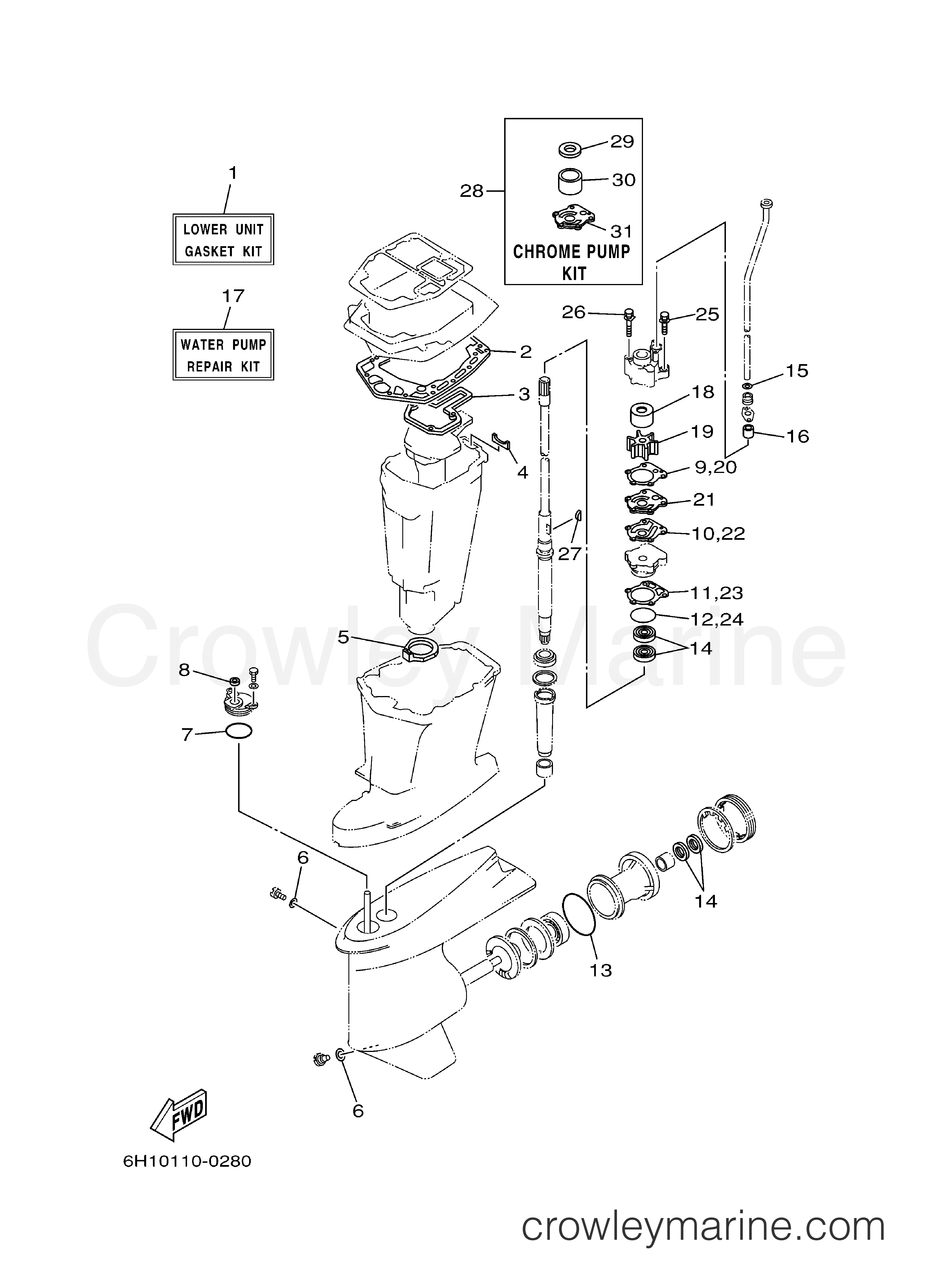

2005 Outboard 90hp - 90TLRD REPAIR KIT 2 diagram
1
Yamaha Motors
LOWER UNIT GASKET KIT688-W0001-23-00
Required: 1
LOWER UNIT GASKET KIT
Supersedes: 688-W0001-21-00
In stock
Only 1 remaining
$69.40
You save $12.25
2
Yamaha Motors
Upper Casing Gasket688-45114-A1-00
Required: 1
.GASKET, UPPER CASING
In stock
Only 4 remaining
$10.33
You save $1.82
3
Yamaha Motors
Exhaust Manifold Gasket688-41134-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD
In stock
Only 4 remaining
$6.08
You save $1.07
4
Yamaha Motors
GASKET, EXHAUST MANIFOLD 1688-41133-01-00
Required: 1
.GASKET, EXHAUST MANIFOLD 1
Supersedes: 688-41133-00-00
$9.69
You save $1.71
5
Yamaha Motors
Muffler Gasket688-45123-00-00
Required: 1
.GASKET, MUFFLER
In stock
Only 1 remaining
$13.18
You save $2.33
6
Yamaha Motors
Tank Cap Gasket90430-08003-00
Required: 2
.GASKET
Supersedes: 90430-08020-00
In stock
5+ in stock
$1.32
You save $0.23
In stock
5+ in stock
$7.22
You save $1.27
In stock
5+ in stock
$7.14
You save $1.26
9
Yamaha Motors
Water Pump Gasket688-44315-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
10
Yamaha Motors
Cartridge Gasket688-44324-A0-00
Required: 1
.GASKET, CARTRIDGE
In stock
5+ in stock
$4.68
You save $0.83
11
Yamaha Motors
Water Pump Gasket688-44316-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
In stock
5+ in stock
$7.22
You save $1.27
In stock
Only 4 remaining
$11.47
You save $2.03
In stock
5+ in stock
$6.21
You save $1.10
In stock
5+ in stock
$5.70
You save $1.00
16
Yamaha Motors
DAMPER, WATER SEAL 2663-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 663-44366-00-00
In stock
5+ in stock
$5.35
You save $0.95
17
Yamaha Motors
Water Pump Repair Kit692-W0078-02-00
Required: 1
WATER PUMP REPAIR KIT
In stock
5+ in stock
$36.13
You save $6.38
18
Yamaha Motors
Cartridge Insert688-44322-00-00
Required: 1
.INSERT, CARTRIDGE
In stock
5+ in stock
$10.45
You save $1.85
In stock
5+ in stock
$29.37
You save $5.18
20
Yamaha Motors
Water Pump Gasket688-44315-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
21
Yamaha Motors
Cartridge Outer Plate688-44323-00-00
Required: 1
.OUTER PLATE, CARTRIDGE
In stock
5+ in stock
$10.41
You save $1.84
22
Yamaha Motors
Cartridge Gasket688-44324-A0-00
Required: 1
.GASKET, CARTRIDGE
In stock
5+ in stock
$4.68
You save $0.83
23
Yamaha Motors
Water Pump Gasket688-44316-A0-00
Required: 1
.GASKET, WATER PUMP
In stock
5+ in stock
$4.68
You save $0.83
In stock
5+ in stock
$7.22
You save $1.27
25
Yamaha Motors
Bolt With Washer90119-08M13-00
Required: 2
.BOLT, WITH WASHER
In stock
5+ in stock
$4.76
You save $0.84
26
Yamaha Motors
Bolt With Washer90119-08M16-00
Required: 2
.BOLT, WITH WASHER
In stock
Only 2 remaining
$8.92
You save $1.57
In stock
5+ in stock
$7.61
You save $1.34
28
Yamaha Motors
Chrome Pump Kit688-W0078-1A-00
Required: 1
CHROME PUMP KIT
$141.95
You save $25.05
29
Yamaha Motors
Cartridge Insert688-44321-41-00
Required: 1
.INSERT, CARTRIDGE
$34.98
You save $6.17
30
Yamaha Motors
Cartridge Insert688-44322-41-00
Required: 1
.INSERT, CARTRIDGE
$53.64
You save $9.47
31
Yamaha Motors
Outer Plate688-44323-40-00
Required: 1
.OUTER PLATE, CARTRIDGE
$44.41
You save $7.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
