All diagrams for this model

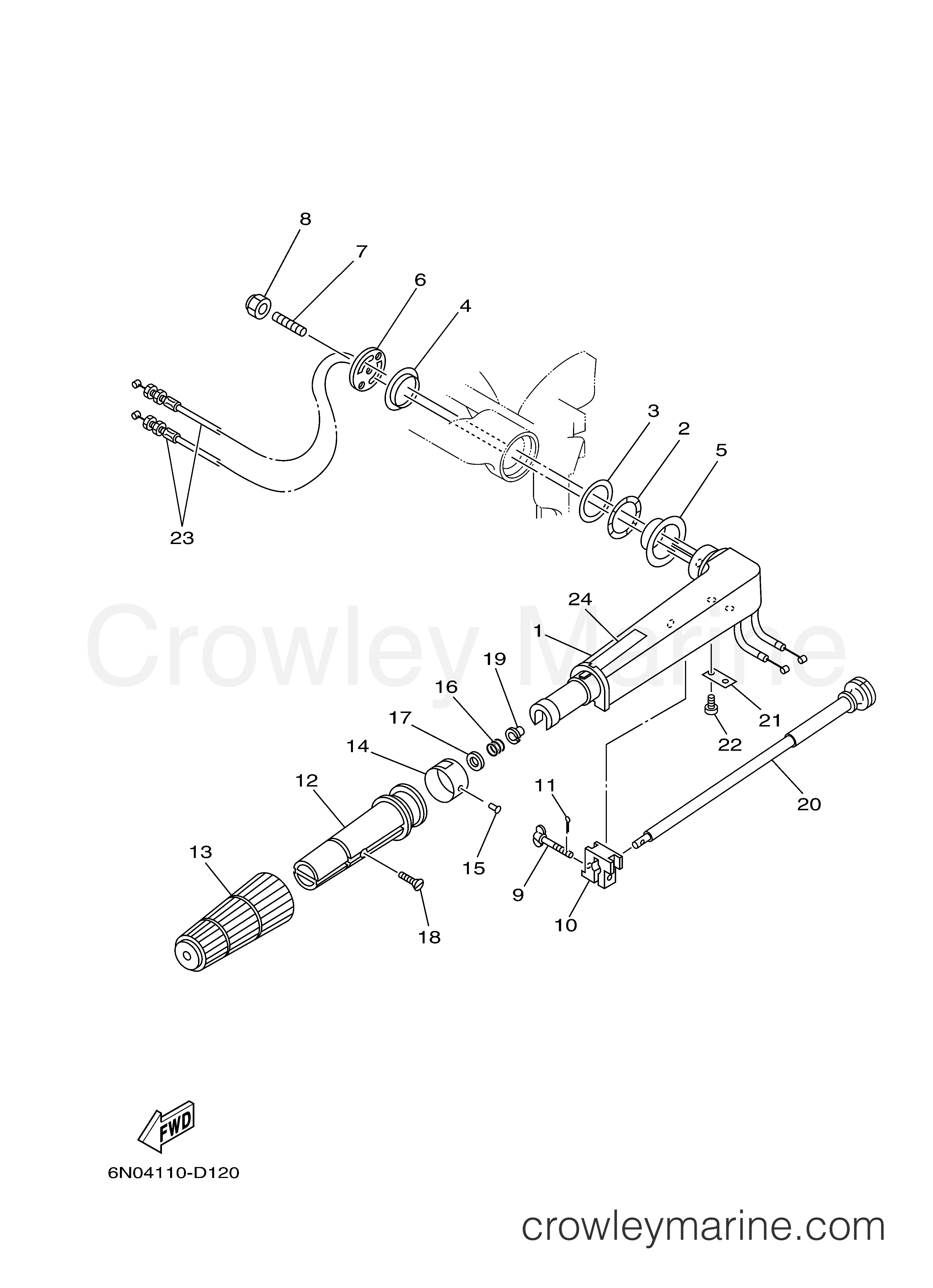

2005 Outboard 8hp - 8MSHD STEERING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 8MSHD - STEERING
Change View:
Steering Handle
1
Yamaha Motors
Steering Handle6G1-42111-12-8D
Required: 1
HANDLE, STEERING
Supersedes: 6M8-G2111-11-4D
Cross Ship
Leaves in 2-5 days
$172.65
$146.75
You save $25.90
More details
Wave Washer
2
Yamaha Motors
Wave Washer90206-36M21-00
Required: 1
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$9.45
$8.03
You save $1.42
More details
Handle Steering Cover
6
Yamaha Motors
Handle Steering Cover6G1-42131-02-00
Required: 1
COVER, HANDLE STEERING
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details
Stud Bolt
7
Yamaha Motors
Stud Bolt90116-08016-00
Required: 1
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$7.90
$6.71
You save $1.19
More details
Flange Nut
8
Yamaha Motors
Flange Nut95780-08300-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-08057-00
Cross Ship
Leaves in 2-5 days
$11.80
$10.03
You save $1.77
More details
Friction Adjusting Bolt
9
Yamaha Motors
Friction Adjusting Bolt6G1-42125-01-00
Required: 1
BOLT, FRICTION ADJUSTING
Cross Ship
Leaves in 2-5 days
$39.05
$33.19
You save $5.86
More details
Steering Handle Grip Friction
10
Yamaha Motors
Steering Handle Grip Friction6G1-42126-00-00
Required: 1
FRICTION, STEERING HANDLE GRIP
Supersedes: 6N0-G2126-00-00
Cross Ship
Leaves in 2-5 days
$14.30
$12.15
You save $2.14
More details
Cotter Pin
11
Yamaha Motors
Cotter Pin91490-16010-00
Required: 1
PIN. COTTER
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Throttle Indicator
14
Yamaha Motors
Throttle Indicator6G1-42137-20-00
Required: 1
INDICATOR, THROTTLE
Supersedes: 6G1-42137-10-00
Cross Ship
Leaves in 2-5 days
$16.30
$13.86
You save $2.45
More details
Stay
21
Yamaha Motors
Stay6E0-42159-02-00
Required: 1
STAY
Cross Ship
Leaves in 2-5 days
$7.15
$6.08
You save $1.07
More details
Pan Head Screw
22
Yamaha Motors
Pan Head Screw97885-05012-00
Required: 2
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.05
$2.59
You save $0.46
More details
Throttle Cable Assembly
23
Yamaha Motors
Throttle Cable Assembly6N0-F6301-10-00
Required: 2
THROTTLE CABLE ASSY
Supersedes: 6N0-F6301-00-00
Cross Ship
Leaves in 2-5 days
$64.80
$55.08
You save $9.72
More details
Caution Label
24
Yamaha Motors
Caution Label60R-H3627-40-00
Required: 1
LABEL, CAUTION 7
Cross Ship
Leaves in 2-5 days
$17.70
$15.04
You save $2.66
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
