All diagrams for this model

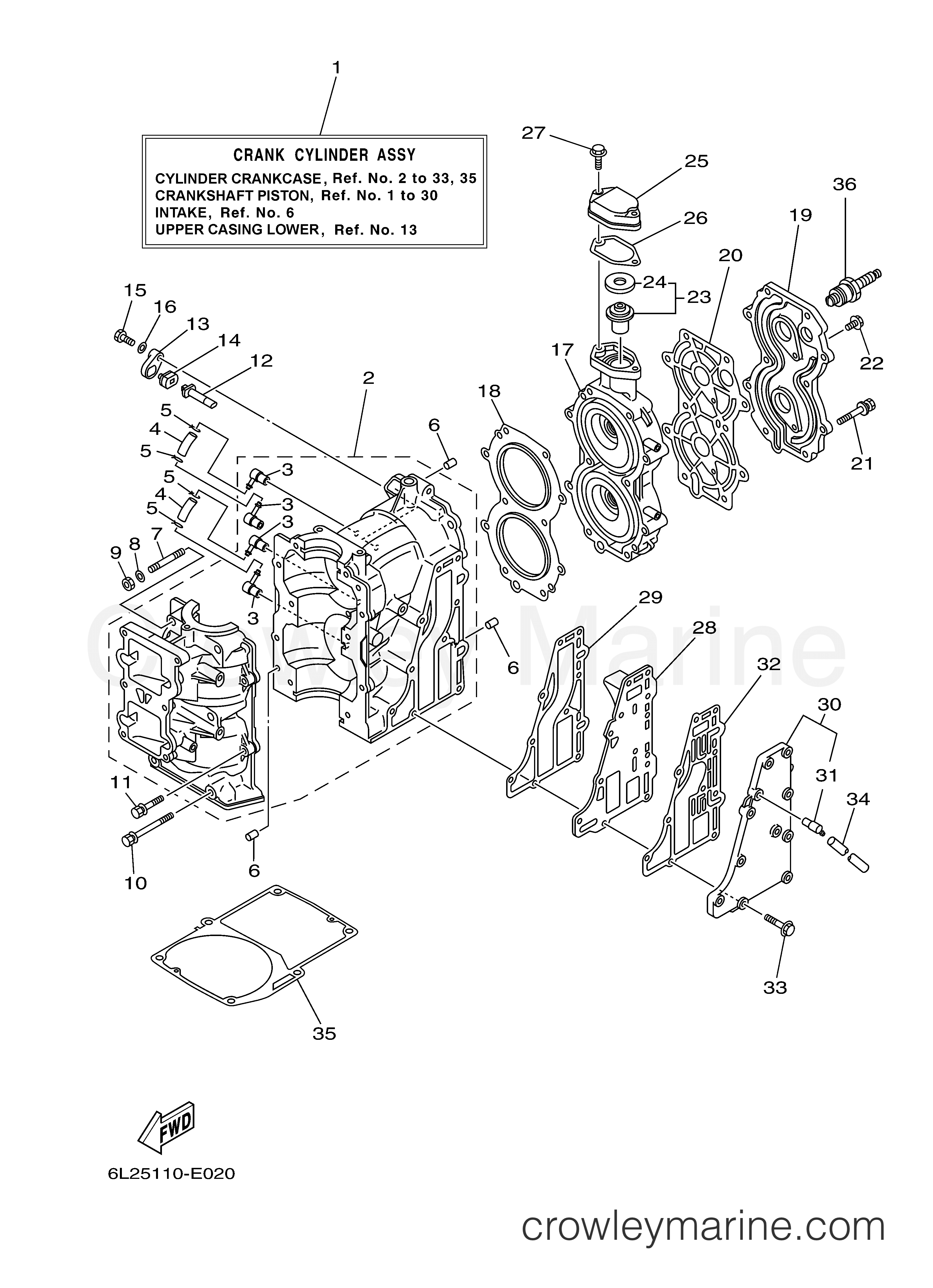

2005 Outboard 25hp - 25ELR CYLINDER CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 25ELR - CYLINDER CRANKCASE
Change View:
Crankcase Assembly
2
Yamaha Motors
Crankcase Assembly6L2-15100-00-00
Required: 1
CRANKCASE ASSY
Supersedes: 6L2-15100-00-1S
Cross Ship
Leaves in 2-5 days
$676.55
$575.07
You save $101.48
More details
Hose Nipple
3
Yamaha Motors
Hose Nipple6E5-11372-01-00
Required: 4
.NIPPLE, HOSE
Cross Ship
Leaves in 2-5 days
$10.20
$8.67
You save $1.53
More details
Stud Bolt
7
Yamaha Motors
Stud Bolt95617-08645-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
Plain Washer
8
Yamaha Motors
Plain Washer 90201-08086-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
Bolt w/ Washer
11
Yamaha Motors
Bolt w/ Washer90119-06M14-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Anode Cover
13
Yamaha Motors
Anode Cover6H3-11327-00-94
Required: 1
COVER, ANODE
Supersedes: 6H3-11327-00-1S
Cross Ship
Leaves in 2-5 days
$32.50
$27.63
You save $4.88
More details
BOLT, HEXAGON DEEP RECESS
15
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 1
BOLT
Supersedes: 97013-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Cylinder Head
17
Yamaha Motors
Cylinder Head6L2-11111-01-1S
Required: 1
HEAD, CYLINDER 1
Cross Ship
Leaves in 2-5 days
$160.05
$136.04
You save $24.01
More details
Cylinder Head Cover
19
Yamaha Motors
Cylinder Head Cover6L2-11191-00-1S
Required: 1
COVER, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$35.10
$29.84
You save $5.27
More details
Bolt with Washer
22
Yamaha Motors
Bolt with Washer90119-06023-00
Required: 2
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
Exhaust Inner Cover
28
Yamaha Motors
Exhaust Inner Cover6L2-41111-00-1S
Required: 1
INNER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$38.10
$32.38
You save $5.72
More details
Exhaust Outer Cover
30
Yamaha Motors
Exhaust Outer Cover6L2-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
Cross Ship
Leaves in 2-5 days
$45.95
$39.06
You save $6.89
More details
Upper Casing Gasket
35
Yamaha Motors
Upper Casing Gasket6L2-45113-A2-00
Required: 1
.GASKET, UPPER CASING
Cross Ship
Leaves in 2-5 days
$19.75
$16.79
You save $2.96
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
