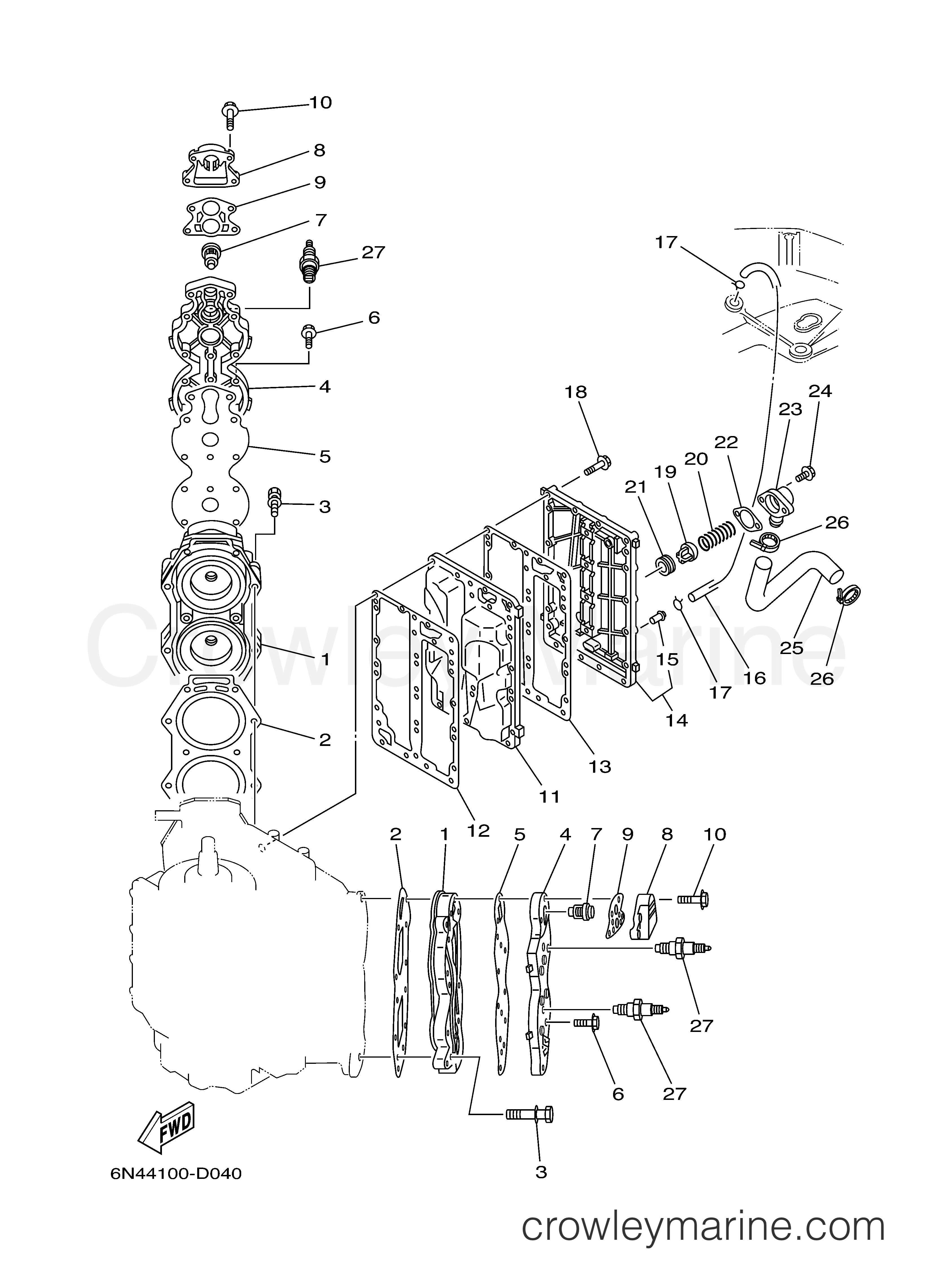

2005 Outboard 115hp - 115TLRD CYLINDER CRANKCASE 2 diagram
1
Yamaha Motors
Cylinder Head6E5-11111-10-1S
Required: 2
HEAD, CYLINDER 1
In stock
Only 3 remaining
$160.95
You save $40.80
2
Yamaha Motors
Cylinder Head Gasket6E5-11181-A2-00
Required: 2
.GASKET, CYLINDER HEAD 1
Supersedes: 6E5-11181-A1-00
In stock
5+ in stock
$38.40
You save $9.60
3
Yamaha Motors
Bolt with Washer90119-08MA8-00
Required: 20
BOLT, WITH WASHER
In stock
5+ in stock
$3.92
You save $0.98
4
Yamaha Motors
Cylinder Head Cover6E5-11191-01-1S
Required: 2
COVER, CYLINDER HEAD 1
$39.88
You save $9.97
5
Yamaha Motors
Head Cover Gasket6E5-11193-A0-00
Required: 2
.GASKET, HEAD COVER 1
In stock
5+ in stock
$34.08
You save $8.52
6
Yamaha Motors
Bolt with Washer90119-06MA4-00
Required: 24
BOLT, WITH WASHER
In stock
Only 1 remaining
$3.52
You save $0.88
In stock
5+ in stock
$25.88
You save $6.47
8
Yamaha Motors
Thermostat Cover6G5-12413-00-1S
Required: 2
COVER, THERMOSTAT
In stock
5+ in stock
$15.16
You save $3.79
9
Yamaha Motors
Cover Gasket688-12414-A1-00
Required: 2
.GASKET, COVER
In stock
5+ in stock
$4.68
You save $1.17
10
Yamaha Motors
Bolt with Washer90119-06MA6-00
Required: 8
BOLT, WITH WASHER
In stock
Only 2 remaining
$3.68
You save $0.92
11
Yamaha Motors
Exhaust Inner Cover6E5-41111-00-1S
Required: 1
INNER COVER, EXHAUST
$71.96
You save $17.99
12
Yamaha Motors
Exhaust Inner Cover Gasket6E5-41112-A1-00
Required: 1
GASKET, EXHAUST INNER COVER
In stock
5+ in stock
$20.60
You save $5.15
13
Yamaha Motors
Exhaust Outer Cover Gasket6E5-41114-A0-00
Required: 1
GASKET, EXH.OUTR.CV
$29.41
You save $5.19
14
Yamaha Motors
Exhaust Outer Cover6N7-41113-00-1S
Required: 1
OUTER COVER, EXHAUST
$75.00
You save $18.75
15
Yamaha Motors
Joint Pipe652-24461-00-00
Required: 1
.PIPE, JOINT 4
Supersedes: 650-24378-00-00
In stock
Only 1 remaining
$4.64
You save $1.16
In stock
5+ in stock
$10.76
You save $2.69
In stock
5+ in stock
$7.59
You save $1.90
18
Yamaha Motors
Bolt w/ Washer90119-06MA5-00
Required: 23
BOLT, WITH WASHER
In stock
5+ in stock
$2.84
You save $0.71
19
Yamaha Motors
Pressure Control Valve60H-12416-00-00
Required: 1
VALVE, PRESSURE CONTROL
In stock
5+ in stock
$11.00
You save $2.75
20
Yamaha Motors
Compression Spring90501-16M11-00
Required: 1
SPRING, COMPRESSION
In stock
5+ in stock
$6.08
You save $1.52
In stock
5+ in stock
$3.52
You save $0.88
In stock
5+ in stock
$4.52
You save $1.13
23
Yamaha Motors
Bypass Cover6G5-11372-00-1S
Required: 1
COVER, BYPASS 2
In stock
5+ in stock
$15.12
You save $3.78
24
Yamaha Motors
Bolt with Washer90119-06MA2-00
Required: 2
BOLT, WITH WASHER
In stock
5+ in stock
$2.56
You save $0.64
In stock
Only 5 remaining
$18.64
You save $4.66
In stock
Only 5 remaining
$1.48
You save $0.37
27
Yamaha Motors
BR8HS NGK SCREW TOPBR8-HS000-00-00
Required: 4
PLUG, SPARK (NGK BR8HS-10)
Supersedes: 94702-00247-00
$4.00
You save $1.00
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
